ACS Composite Corvette Jacking Pucks - C8 Corvette Z06
The ACS Composite Jacking Pucks are a set of four anodized aluminum lift pads that thread into the factory jack points of a C8 Corvette Z06 from 2023, coupe and convertible. Each is machined from solid heavy-duty aluminum, gives a 2.5 inch lifting surface, and a set ships as black 45-4-195, red 45-4-197 or blue 45-4-196.
This is the C8 that gets its wheels taken off the most. Track tires, street tires, brake bedding, a set of carbon wheels somebody is very careful with: the Z06 sees more of a jack than anything else in the range. Every one of those lifts is a decision about where the arm goes, and repeating a decision often enough is how a mistake eventually happens. Threaded jack pucks turn it back into a routine, because the position is made once and after that it is simply there.
Product Details

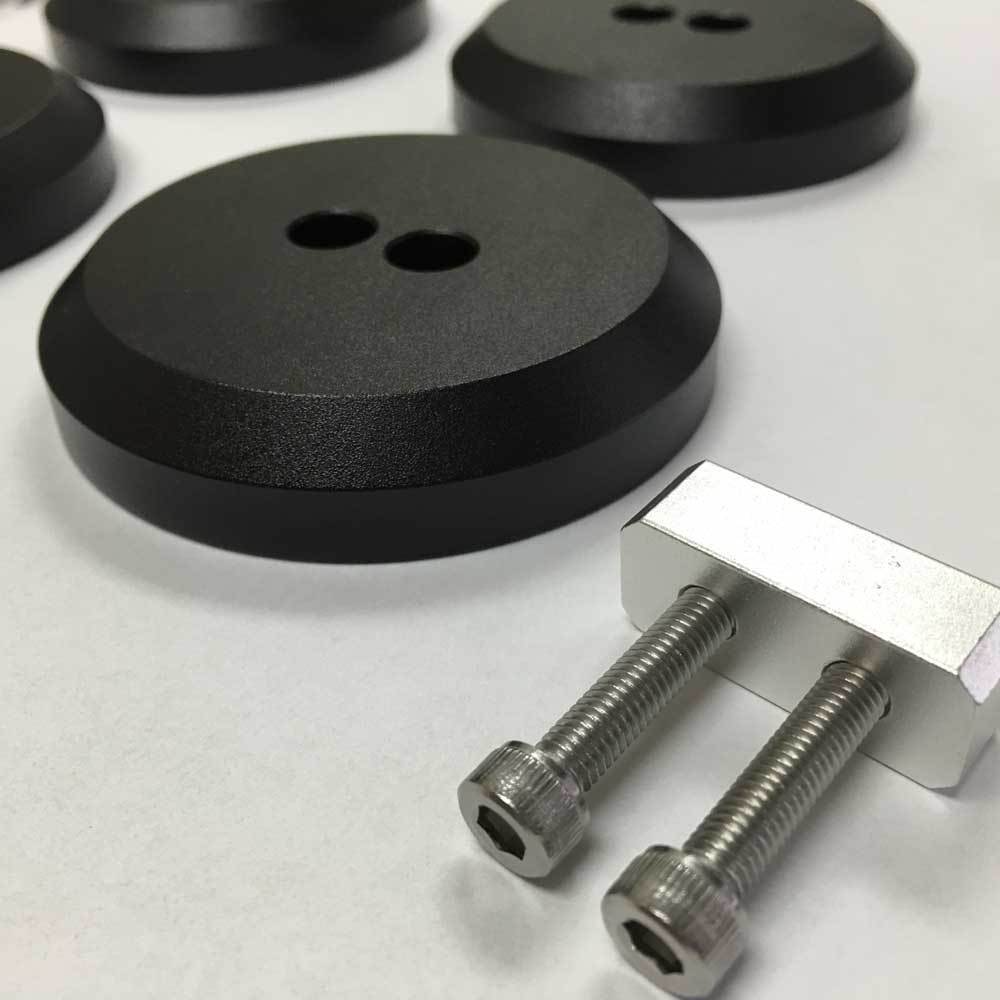

- Part numbers: Black [45-4-195], Red [45-4-197], Blue [45-4-196]

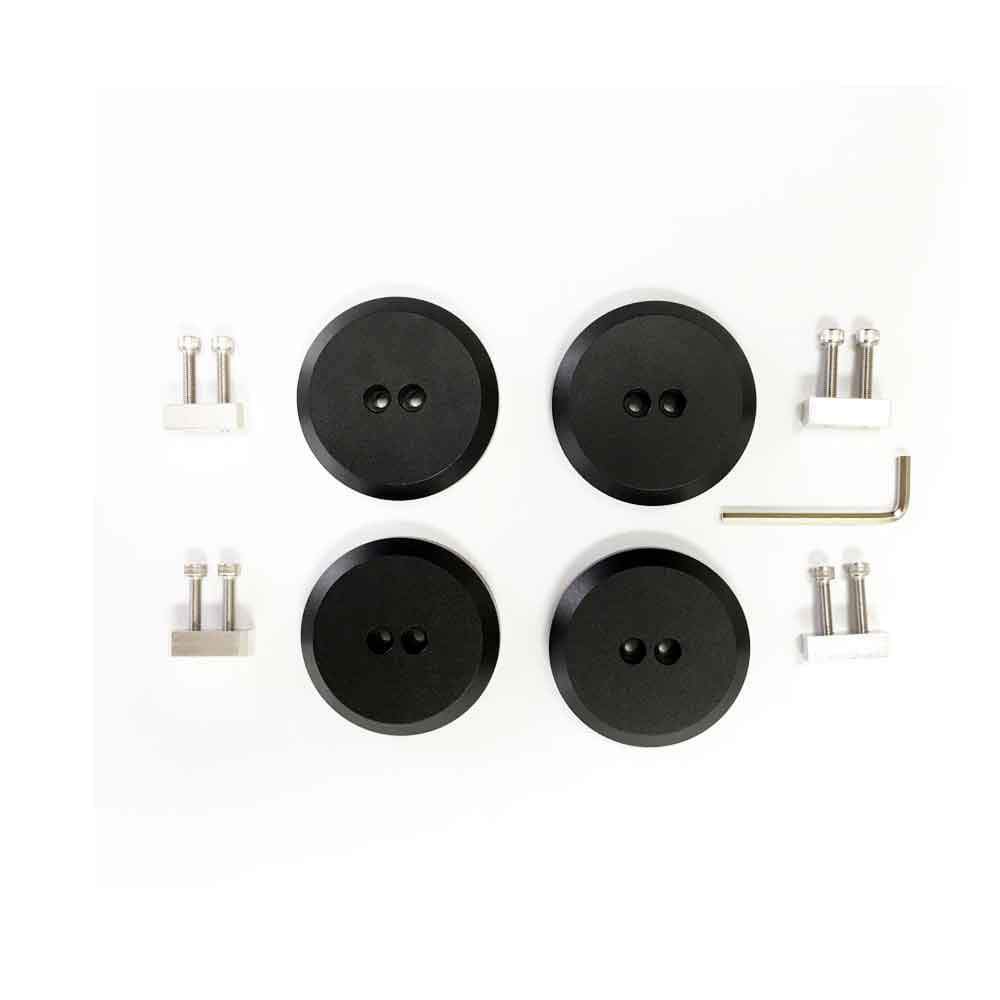

- Coverage: four pucks, which is every jack point on the car
- Also supplied: four nuts and one Allen key
- Construction: solid heavy-duty aluminum, machined then anodized
- Contact face: 2.5 inches
- Stack height: 0.5 inch
- Mounting: threaded, semi-permanent, so they stay on the car

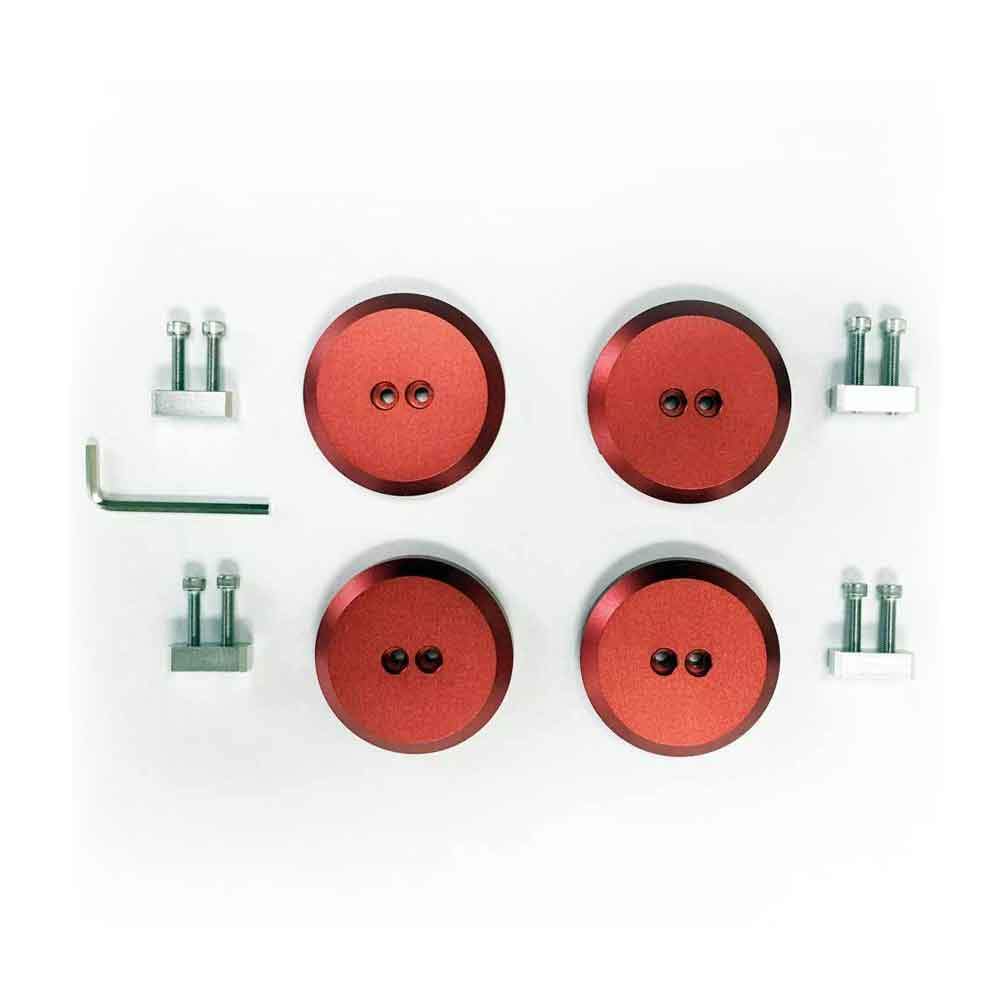

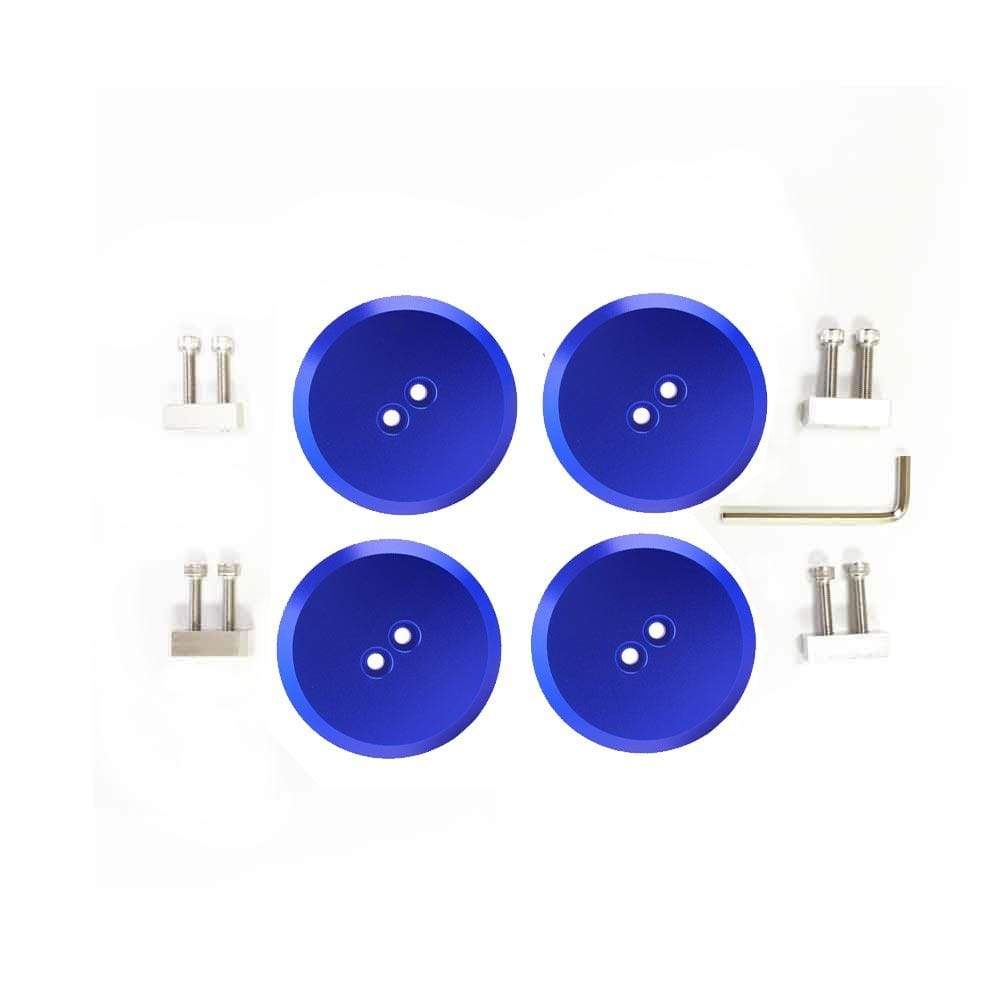

- Color choice: black, red or blue, one per set
Benefits
- Made for the C8 that has its wheels off most often
- The same aluminum face every time, whether it is a track morning or a Tuesday
- Corvette jack pucks that stay put when the car goes on a trailer or to a shop
- Machined aluminum, not a rubber pad that deforms under a track-prepped car
- Anodized black, red or blue, easy to find in a dim paddock
What to Expect
- Quicker than setting up the jack. Supplied Allen key, four points, nothing cut
- Half an inch at each jack point. Worth a thought if you run low ramps at an event
- Corvette jack pads this size give a paddock floor jack a flat seat
- They stay through a season of wheel-off work and brake changes
CORVETTE COMPATIBILITY
- Generation: C8 Corvette
- Model: Z06
- Model Years: 2023 and later
- Engine: 5.5L LT6 V8
- Body: Coupe and Convertible

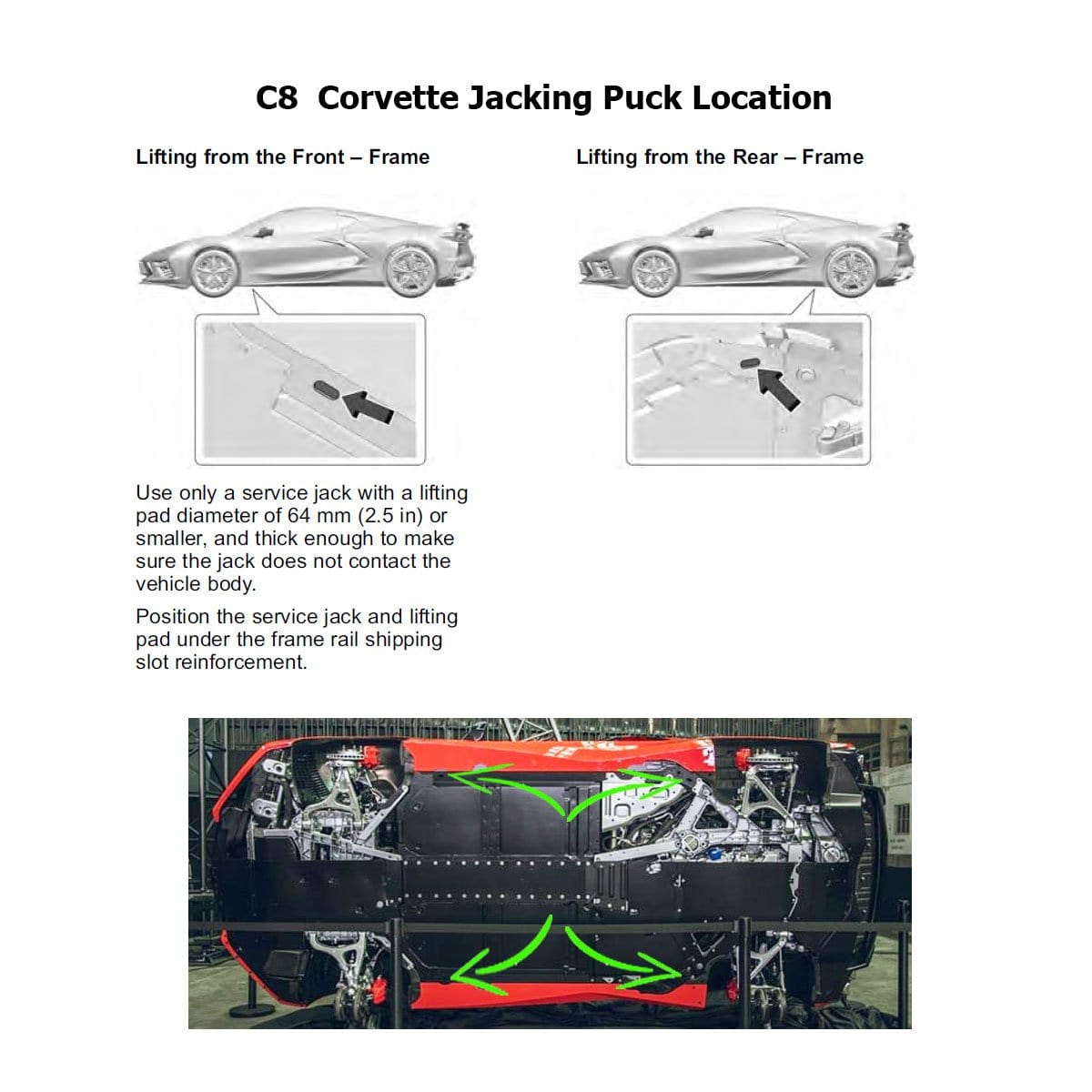

- Fitting point: the factory jack points, threaded, no drilling
- Colors: Black 45-4-195, Red 45-4-197, Blue 45-4-196
Why Buy from Custom Corvette Accessories?
Custom Corvette Accessories is enthusiast-run and Corvette-focused. The ACS Composite Jacking Pucks are a direct upgrade for C8 Corvette Z06 owners with a second set of wheels who lift this car more than they admit.
Choose [45-4-195] in black, [45-4-197] in red or [45-4-196] in blue, and the ACS Composite Jacking Pucks deliver four machined aluminum pads, a 2.5 inch face at every factory jack point, and a set that takes a season of wheel-off work without drilling a hole or slowing down a wheel change.
