C8 Corvette aFe CONTROL Rear Sway Bar (2020-2026)

aFe 440-401008RL 3-Way Adjustable Rear Sway Bar for C8 Corvette

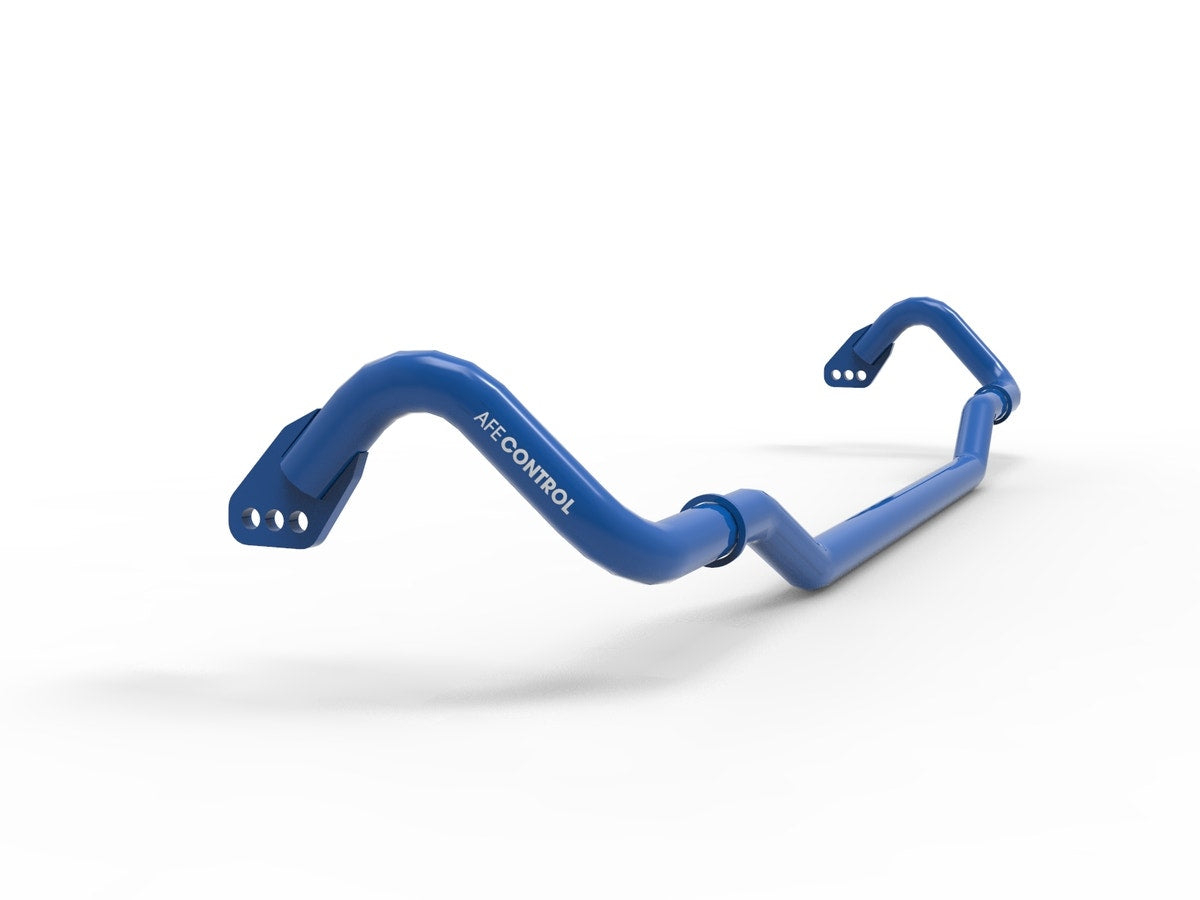

The aFe CONTROL Rear Sway Bar 440-401008RL is a 35mm (1.375-inch) hollow tubular rear anti-roll bar for the 2020-2026 C8 Corvette with the 6.2L V8. Built from lightweight 1026 DOM steel, it uses three adjustment positions so C8 owners can change rear roll resistance and tune the car's handling balance for street, autocross, or track use.

Designed as a direct-fit upgrade, this rear sway bar targets body roll and handling balance without requiring permanent vehicle modification. The adjustable design lets the driver increase or decrease rear roll stiffness, while the included low-deflection polyurethane bushings and billet aluminum brackets provide a precise, serviceable mounting system.

Product Details

• aFe CONTROL part number 440-401008RL
• 35mm (1.375-inch) hollow 1026 DOM steel rear sway bar
• Three-position adjustable rear roll stiffness

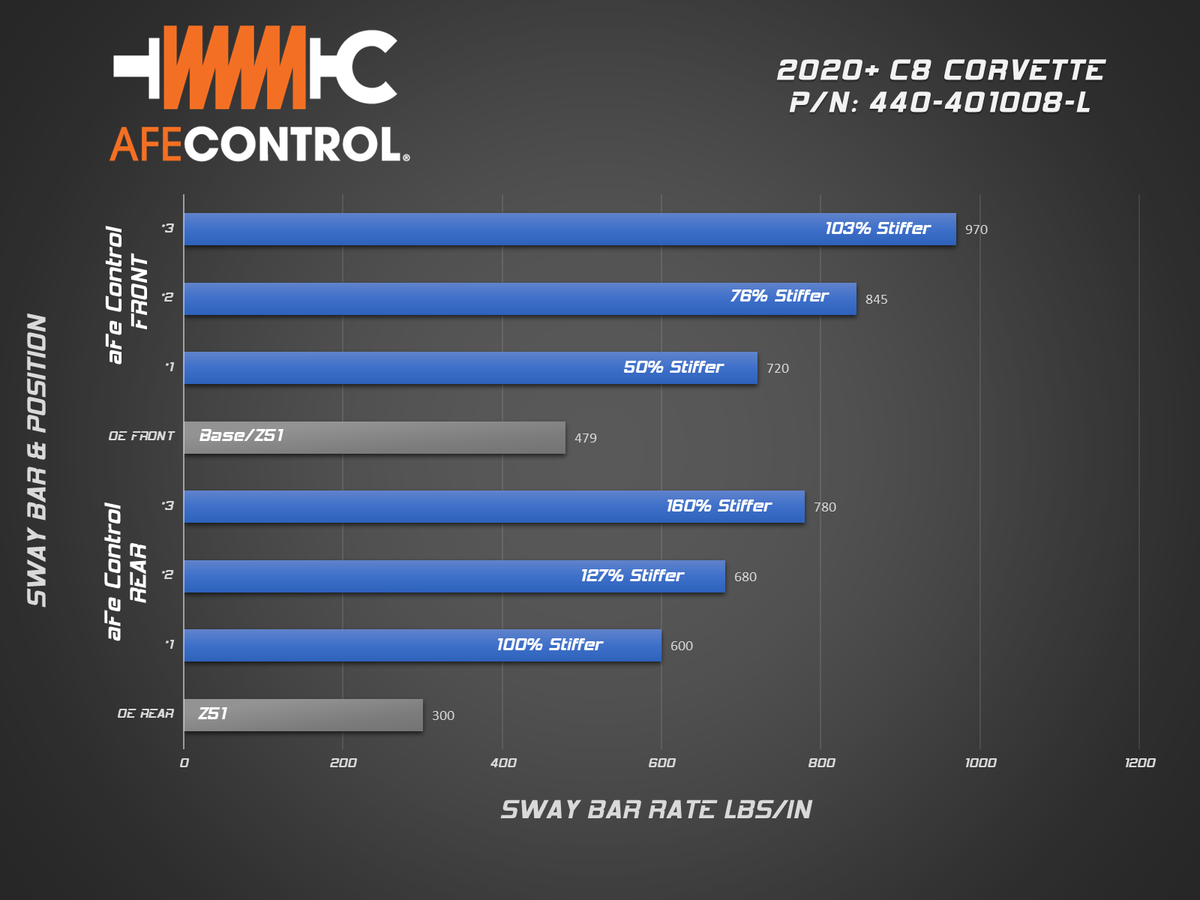

• 600 lb/in setting — 100% stiffer than stock Z51
• 680 lb/in setting — 127% stiffer than stock Z51
• 780 lb/in setting — 160% stiffer than stock Z51
• Laser-cut rear sway bar ends

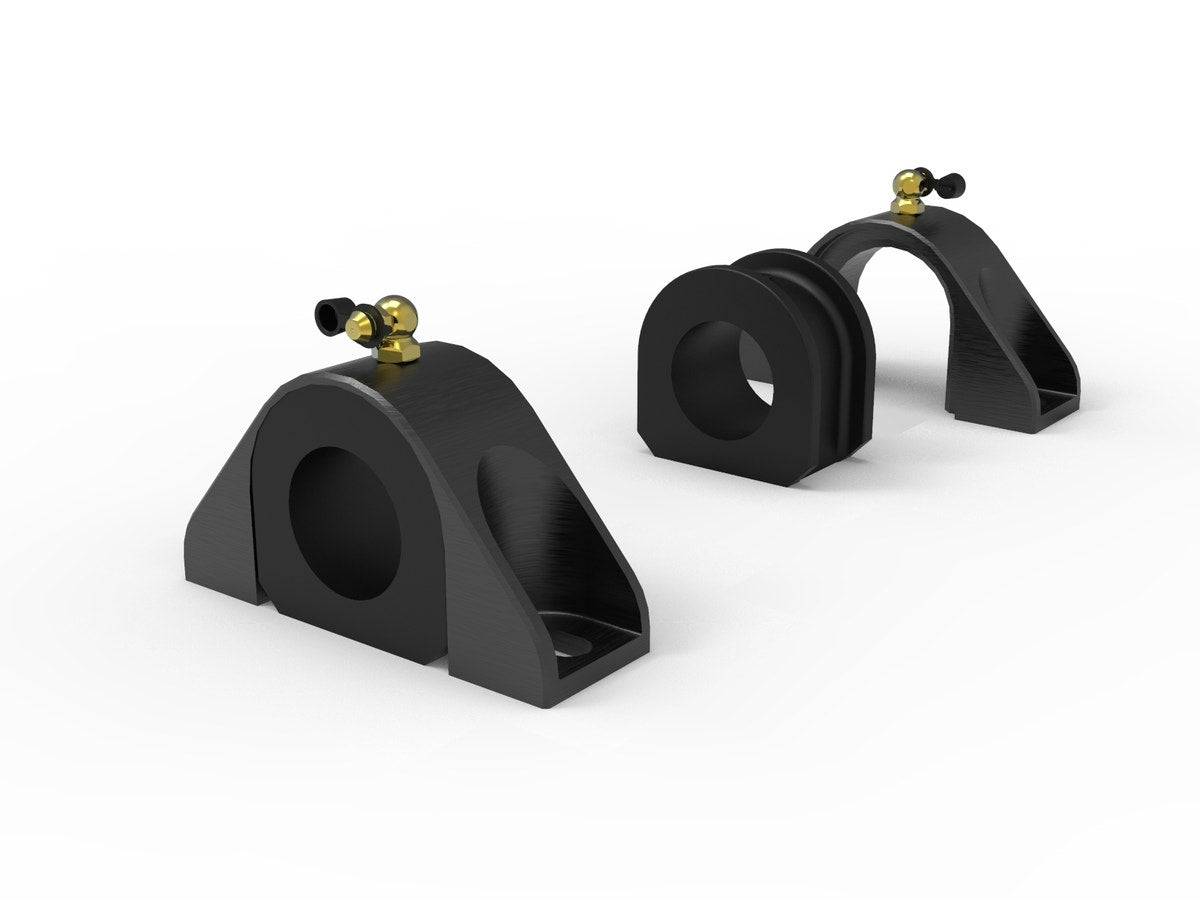

• 6061-T6 billet aluminum bushing brackets with grease fittings
• 90A durometer polyurethane bushings
• Durable blue powder-coated finish
• Made in the USA

Benefits

• Reduces rear body roll during hard cornering
• Allows three levels of rear roll resistance for handling-balance tuning
• Supports a more responsive feel during transitions and corner entry
• Low-deflection bushings help the bar react consistently
• Greaseable billet brackets simplify routine bushing maintenance

Important Notes

• This page is for the rear sway bar only; the bar is sold individually.
• The matching front sway bar is aFe part number 440-401008FL.
• The manufacturer's installation guide estimates approximately 1 hour for the rear bar installation.
• Direct-fit installation requires no permanent vehicle modification.
• CCA handling time: 1-2 business days.

CORVETTE COMPATIBILITY

• Generation: C8 Corvette
• Model Years: 2020-2026
• Models/Trims: 6.2L V8-equipped C8 Corvette models
• Engine: 6.2L V8
• Position: Rear

Use Overview

The softest position is the hole closest to the end of the bar, with the other positions increasing rear roll stiffness. Adjustment changes the C8 Corvette's handling balance, so settings should be selected with tire grip, alignment, driving environment, and the front sway-bar setup in mind. This rear bar is well suited to owners looking for a tunable suspension upgrade rather than a fixed-rate replacement.
