C8 Corvette aFe CONTROL Front Sway Bar (2020-2026)

aFe 440-401008FL 3-Way Adjustable Front Sway Bar for C8 Corvette

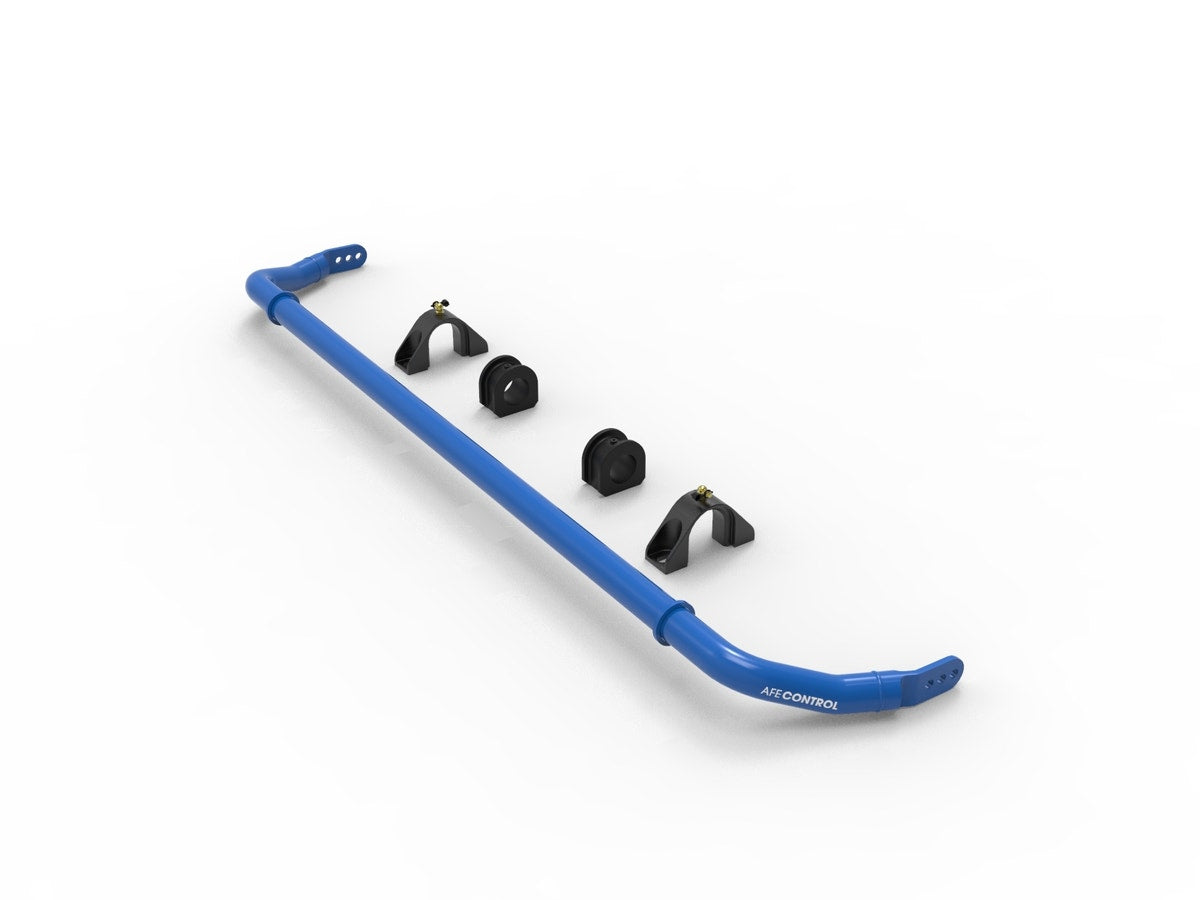

The aFe CONTROL Front Sway Bar 440-401008FL is a 35mm (1.375-inch) hollow tubular front anti-roll bar for the 2020-2026 C8 Corvette with the 6.2L V8. Constructed from lightweight 1026 DOM steel, it provides three adjustment positions so the front roll rate can be tuned for sharper response and a handling balance that matches the driver's street, autocross, or track setup.

This front bar is designed to reduce body roll and improve steering response without requiring permanent vehicle modification. Its three-position adjustment range gives C8 Corvette owners a meaningful way to change front roll resistance, while the included polyurethane bushings and greaseable billet brackets provide a precise, durable mounting system.

Product Details

• aFe CONTROL part number 440-401008FL
• 35mm (1.375-inch) hollow 1026 DOM steel front sway bar
• Three-position adjustable front roll stiffness

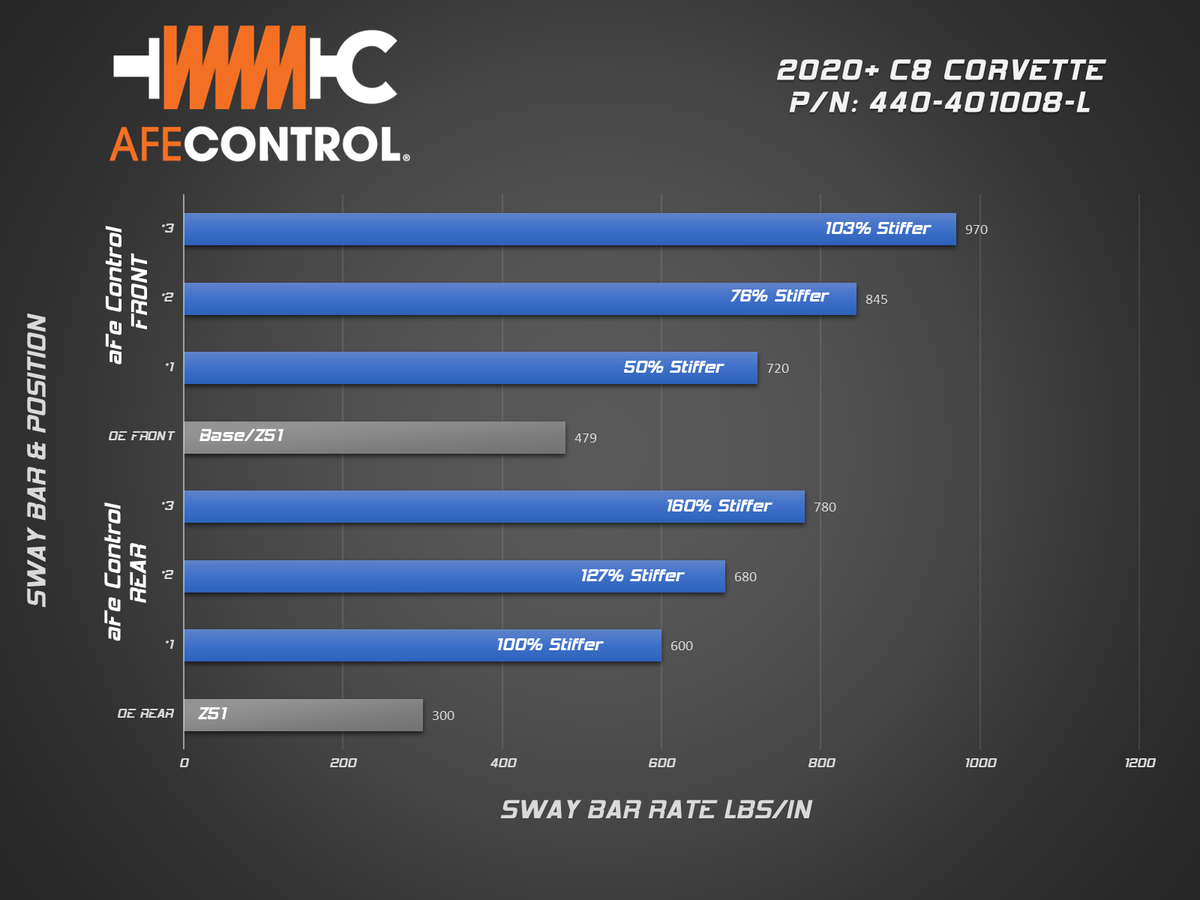

• 720 lb/in setting — 50% stiffer than stock Base/Z51
• 845 lb/in setting — 76% stiffer than stock Base/Z51
• 970 lb/in setting — 103% stiffer than stock Base/Z51

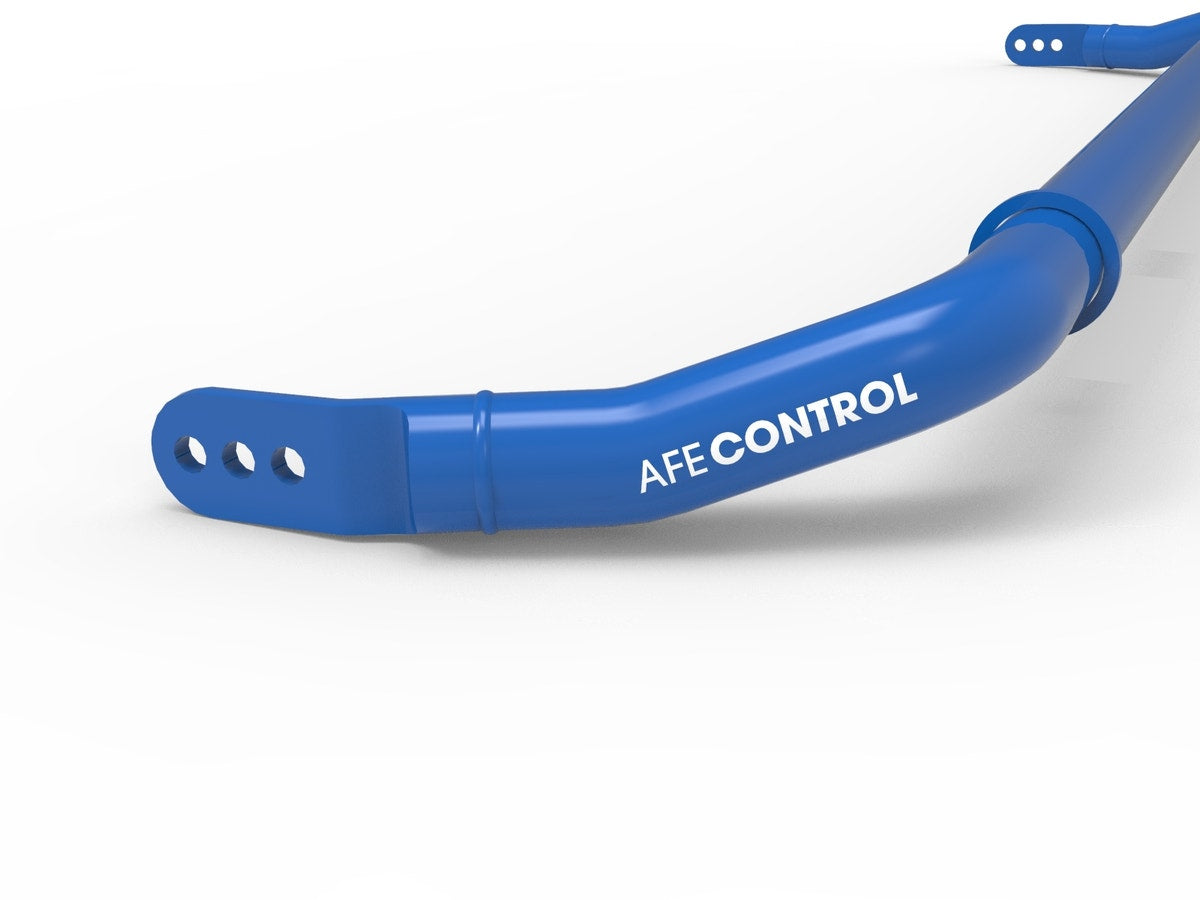

• CNC-machined front sway bar ends

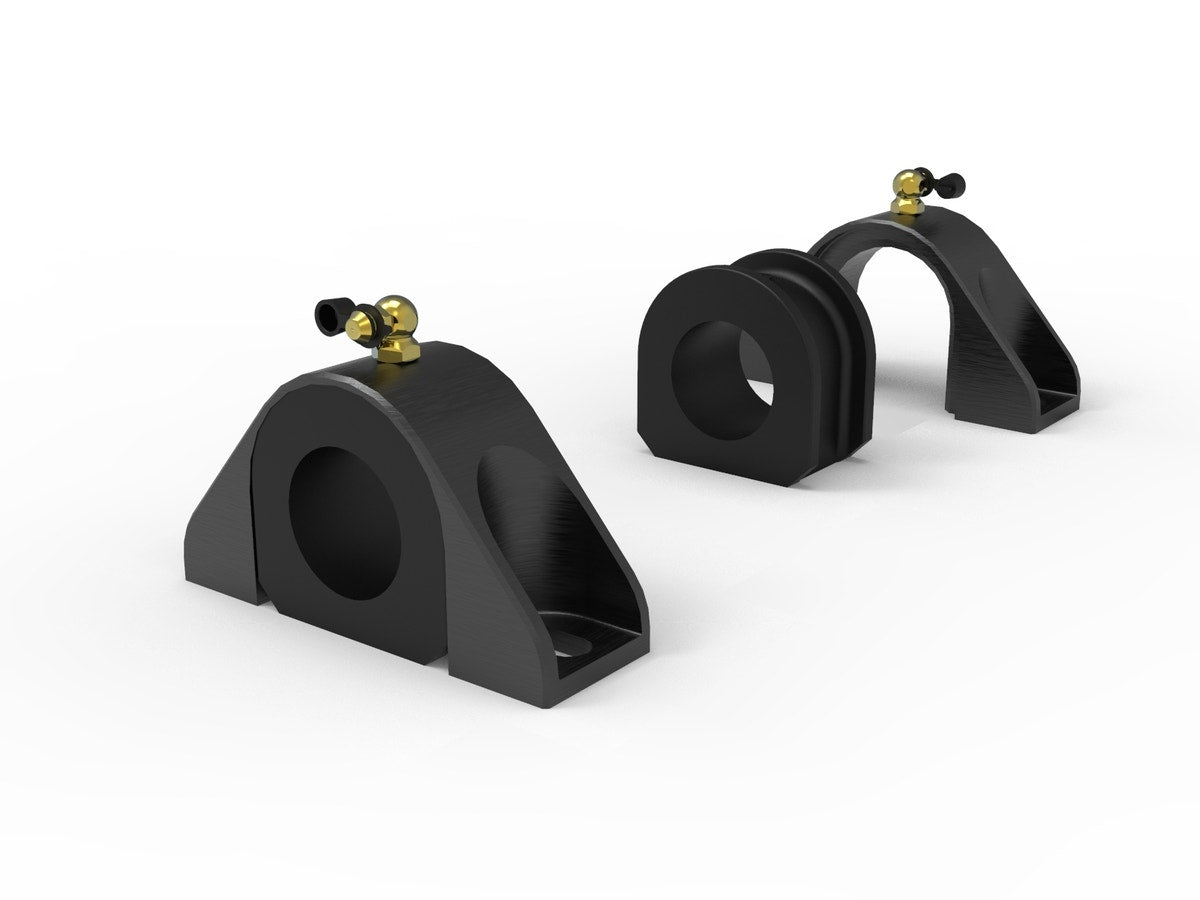

• 6061-T6 billet aluminum bushing brackets with grease fittings
• 90A durometer polyurethane bushings
• Durable blue powder-coated finish
• Made in the USA

Benefits

• Reduces front body roll during hard cornering
• Provides three front roll-rate settings for chassis tuning
• Can sharpen initial turn-in and steering response
• Low-deflection bushings help deliver consistent sway-bar response
• Greaseable billet brackets simplify routine bushing maintenance

Important Notes

• This page is for the front sway bar only; the bar is sold individually.
• The matching rear sway bar is aFe part number 440-401008RL.
• The manufacturer's installation guide estimates approximately 6 hours for the front bar installation.

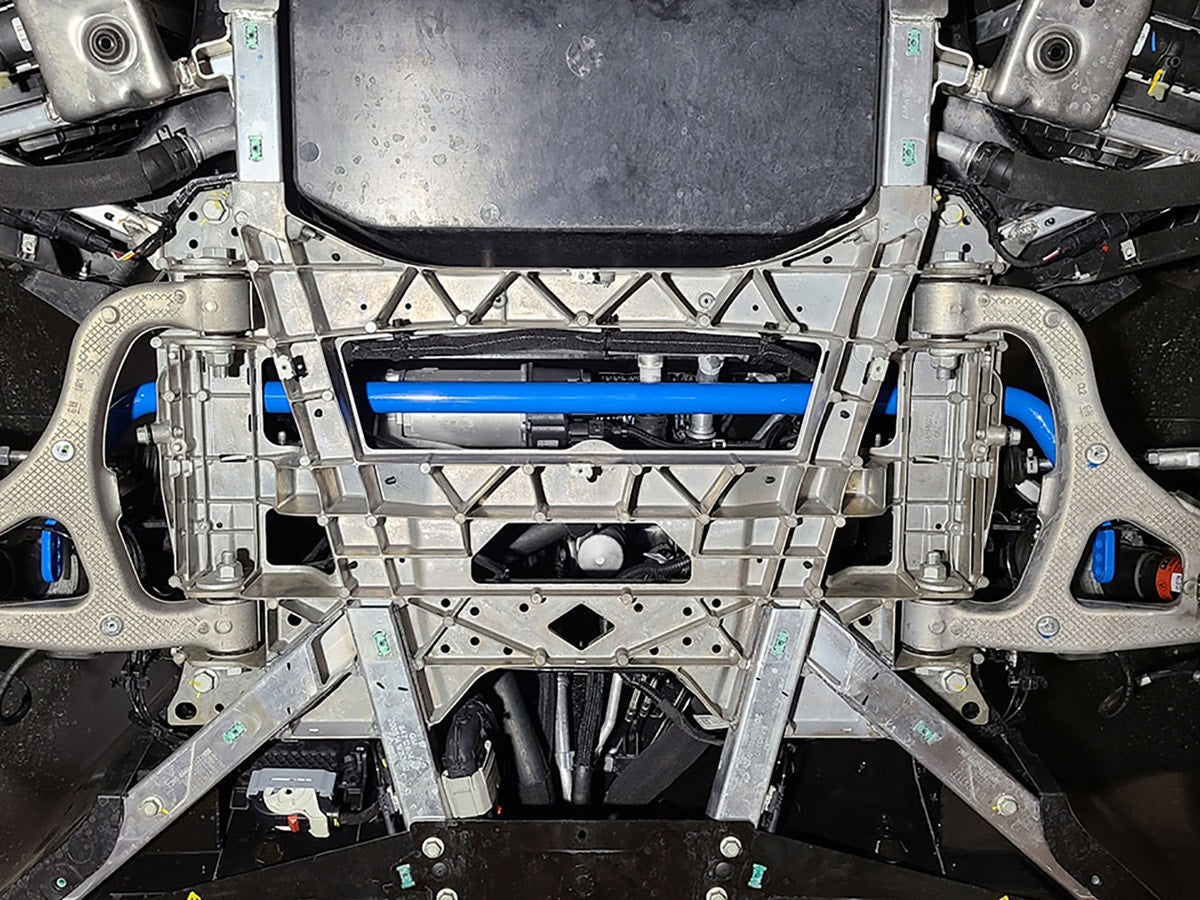

• Front installation requires the front subframe to be lowered slightly for access, making this a more involved installation than the rear sway bar.
• No permanent vehicle modification is required.
• CCA handling time: 1-2 business days.

CORVETTE COMPATIBILITY

• Generation: C8 Corvette
• Model Years: 2020-2026
• Models/Trims: 6.2L V8-equipped C8 Corvette models
• Engine: 6.2L V8
• Position: Front

Use Overview

The hole closest to the end of the bar is the softest position, with the remaining positions increasing front roll stiffness. Because front sway-bar stiffness affects turn-in, grip balance, and understeer behavior, adjustment should be considered together with tire grip, alignment, driving environment, and the rear sway-bar setup. This bar is intended for C8 owners who want a tunable front suspension upgrade rather than a fixed-rate replacement.
