C7 Corvette Stingray DBA 4000 Series T3 Front Brake Rotors

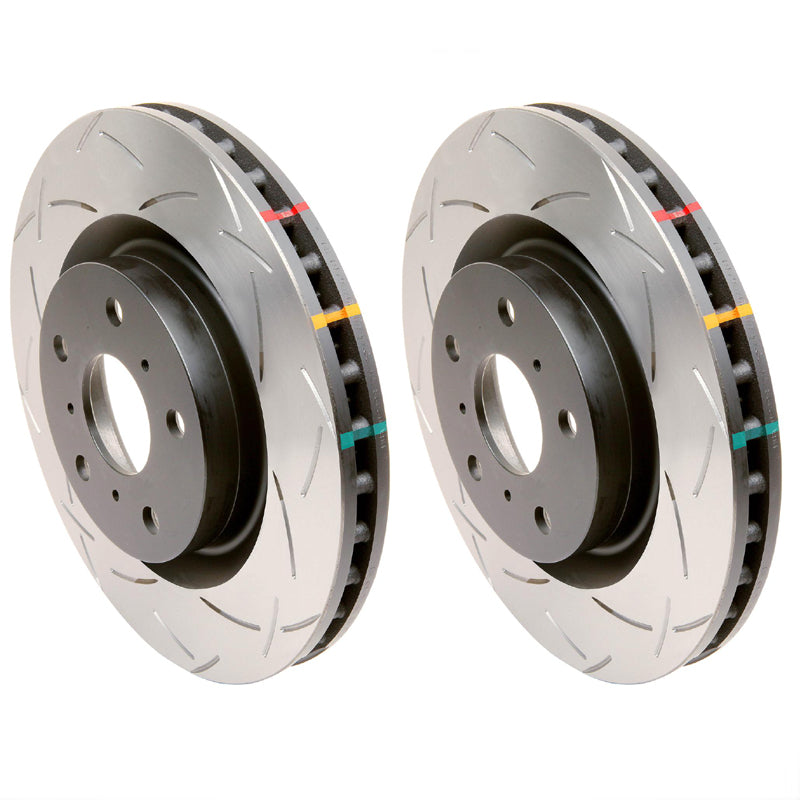

The DBA 4000 Series T3 Front Brake Rotors are direct-replacement performance rotors for 2014–2019 C7 Corvette Stingray Coupe and Convertible models with the LT1 6.2L V8. Choose the JL9 standard-brake option with DBA42760S 321 mm rotors or the larger J55 Z51 performance-brake option with DBA42762S 345 mm rotors. This listing includes a complete pair of two front rotors for the selected factory C7 Corvette Stingray brake package.
Product Details
- Brand: DBA – Disc Brakes Australia
- Product Line: 4000 Series T3
- Product Type: Slotted front brake rotors
- Fitment: 2014–2019 C7 Corvette Stingray
- Position: Front axle
- Included Quantity: Two front rotors, complete pair
- Standard Brakes: RPO JL9 – DBA42760S – 321 mm
- Z51 Performance Brakes: RPO J55 – DBA42762S – 345 mm
- Construction: One-piece vented rotors
- Rotor Material: High-carbon alloyed iron
- Surface: CNC-machined T3 slots
- Slot Design: Bi-directional
- Internal Ventilation: DBA Kangaroo Paw ventilation
- Brake Pads Included: No
- Warranty: DBA 12-month or 12,000-mile limited warranty against manufacturing defects
- Shipping: $9.99 in the USA
Benefits
- Includes two rotors for a complete C7 Corvette Stingray front brake service
- Separate JL9 and J55 options provide the correct factory brake-package fitment
- Direct replacement for the original front calipers and mounting brackets
- T3 slots help clear brake dust and friction gases from the pad surface
- Bi-directional design allows either rotor to be installed on either side
- High-carbon iron construction supports consistent braking through repeated heat cycles
- Kangaroo Paw ventilation promotes airflow and heat dissipation
- Suitable for daily driving and demanding performance-street use
What to Expect
The DBA 4000 Series T3 is a factory-size, one-piece rotor upgrade rather than a big-brake conversion. It retains the original C7 Corvette Stingray front calipers and mounting points while adding DBA’s T3 slot pattern, high-carbon iron construction, and performance-focused heat-management features.
C7 Corvette Stingray models use two different front rotor sizes. Stingrays with standard RPO JL9 brakes use 321 mm rotors, while Z51 Stingrays with RPO J55 performance brakes use larger 345 mm rotors. Check the Corvette’s brake RPO code before selecting a variant.
Technical Specifications
- JL9 Part Number: DBA42760S per rotor
- JL9 Outside Diameter: 321 mm / approximately 12.6 inches
- JL9 Rotor Thickness: 30 mm
- JL9 Overall Height: 51 mm
- JL9 Rotor Weight: Approximately 21.4 pounds each
- J55 Part Number: DBA42762S per rotor
- J55 Outside Diameter: 345 mm / approximately 13.6 inches
- J55 Rotor Thickness: 30 mm
- J55 Overall Height: 42.5 mm
- J55 Minimum Thickness: 28 mm
- J55 Rotor Weight: Approximately 24.6 pounds each
- Center Bore: Approximately 70.7 mm
- Mounting Holes: Five
- Vane Design: DBA Kangaroo Paw vents
Installation Overview
These DBA front rotors install in the factory C7 Corvette Stingray rotor locations and work with the original calipers and mounting brackets for the selected JL9 or J55 brake package. No caliper relocation brackets or rotor adapters are required when the correct option is selected.
Install both rotors together, clean the rotor and wheel-hub mounting surfaces, inspect the brake pads and caliper hardware, and follow the DBA and brake-pad manufacturer bedding procedures after installation.
Important Notes
- This listing is for a pair. Quantity one includes two front brake rotors.
- Verify the Corvette’s brake RPO code before ordering. Do not select by model year alone.
- RPO JL9: Select DBA42760S with 321 mm front rotors.

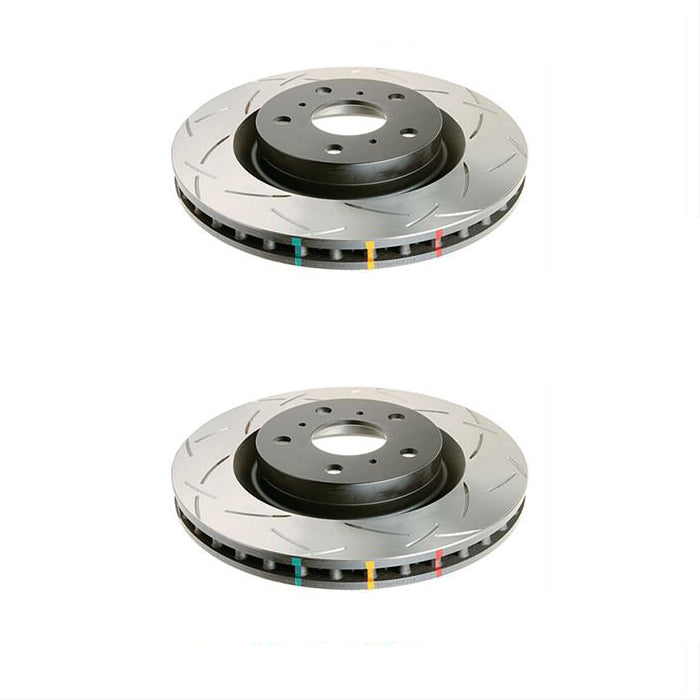

- RPO J55: Select DBA42762S with 345 mm front rotors.
- C7 Corvette Stingray models equipped with the Z51 Performance Package use RPO J55 brakes.
- Brake pads, calipers, brake fluid, hoses, and installation hardware are not included.
- These variants do not fit C7 Corvette Grand Sport, Z06, ZR1, or aftermarket big-brake systems.
CORVETTE COMPATIBILITY
- Generation: C7 Corvette
- Model Years: 2014–2019
- Model: Stingray
- Engine: LT1 6.2L V8
- Standard Brake Package: RPO JL9 with 321 mm front rotors
- Z51 Performance Brake Package: RPO J55 with 345 mm front rotors
- Brake Position: Front axle
- Body Styles: Coupe and convertible
