C7 Corvette Morimoto XB Gen I LED Headlights (2014–2019)
The Morimoto XB Gen I LED Headlights, part number LF463, are a complete headlight upgrade for 2014–2019 C7 Corvette Stingray, Z51, Grand Sport, Z06, and ZR1 models with the LT1, LT4, and LT5 6.2L V8 engines. This complete pair replaces the factory HID headlight assemblies with Kuria Optic Bi-LED projectors, bright white daytime running lights, and amber sequential turn signals. Factory-style GM connectors provide plug-and-play electrical installation without cutting or splicing.
Product Details
- Brand: Morimoto
- Product Line: XB LED Gen I
- Product Type: Complete LED headlight assemblies
- Fitment: 2014–2019 C7 Corvette

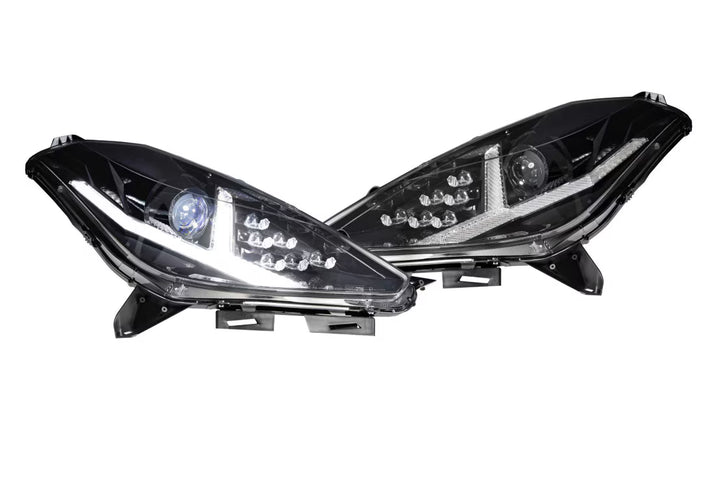

- Included Quantity: Two headlights, one driver side and one passenger side
- Low and High Beams: Kuria Optic Bi-LED projectors
- Daytime Running Lights: White LED
- Turn Signals: Amber sequential LED
- Raw Light Output: 2,600 lumens per assembly
- Electrical Connection: Factory-style GM multi-pin connectors
- Part Number: LF463
- Warranty: Morimoto five-year limited warranty
- Shipping: Free Shipping in the USA
Benefits
- Replaces aging, damaged, or weakened factory C7 HID headlight assemblies
- Bi-LED projectors provide both low-beam and high-beam lighting
- White LED daytime running lights create a bright, modern appearance
- Amber sequential turn signals add a clear moving signal
- Factory-style connectors eliminate wire cutting and splicing
- Complete left-and-right pair provides matching appearance and light output
- UV-resistant polycarbonate lenses help protect long-term clarity
- Integrated adjusters allow the headlights to be properly aimed after installation
What to Expect

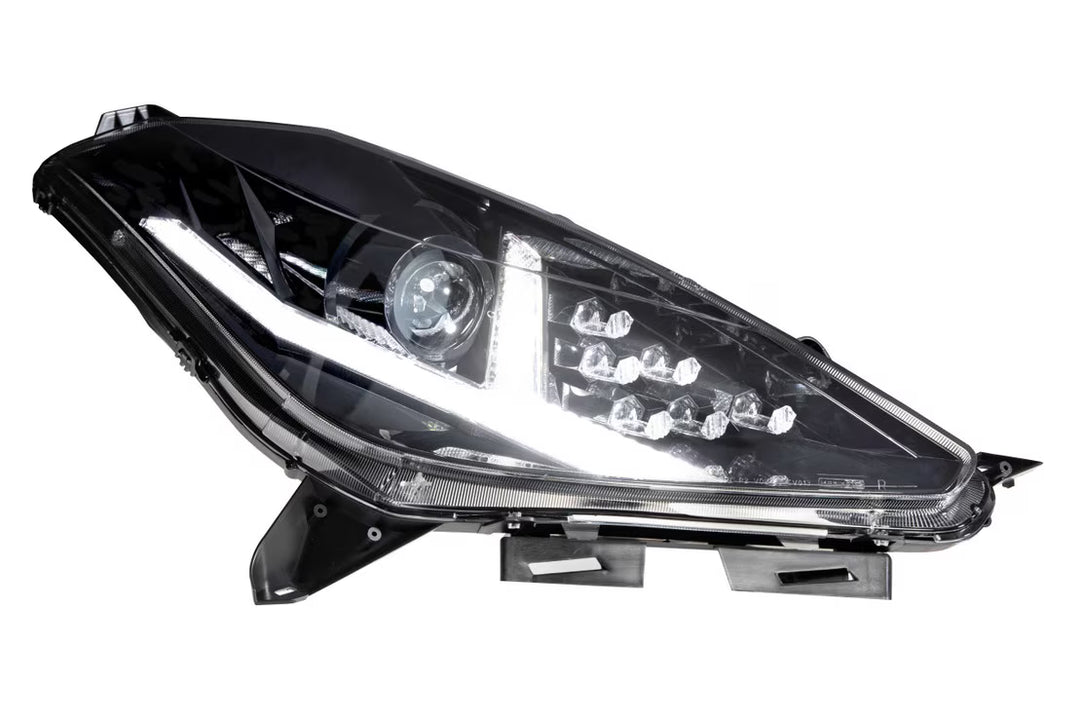

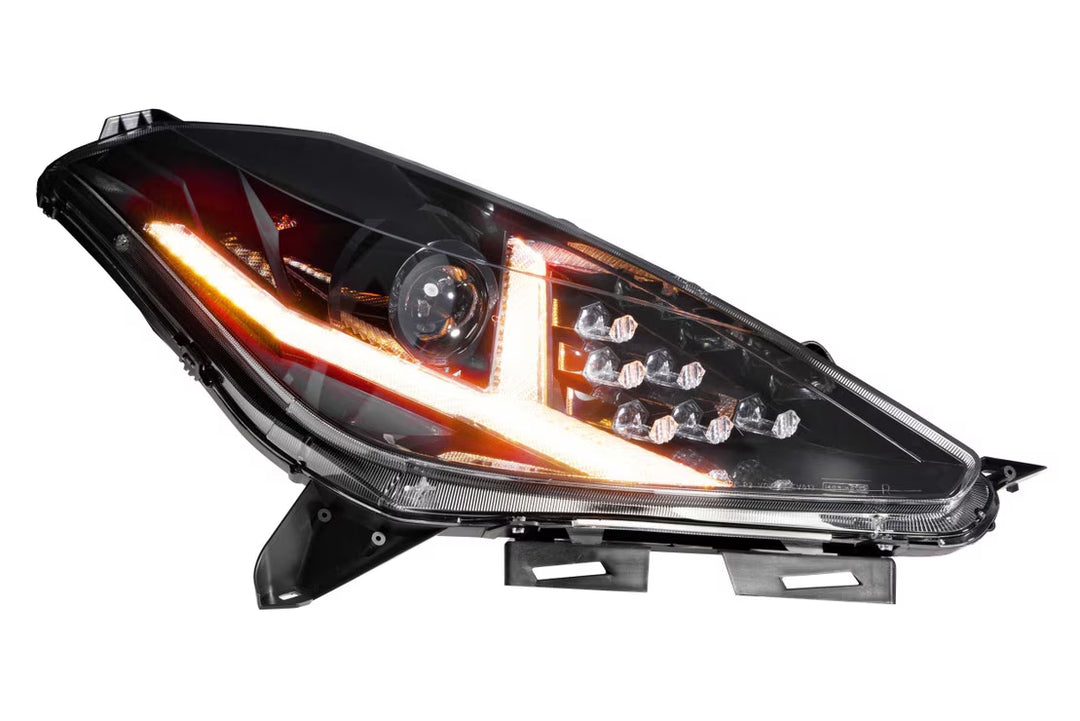

The LF463 headlights use bright white LED daytime running lights during normal daytime operation. When the turn signal is activated, amber LEDs sequence across the outside edge of each headlight.
The Kuria Optic Bi-LED projectors handle both low-beam and high-beam lighting. This is a complete headlight assembly replacement, not an LED bulb conversion for the factory HID housing.
The Gen I system uses a white daytime running light and an amber sequential turn signal. Selectable white-or-amber DRLs, selectable turn-signal operation, and a startup sequence are features of the newer Morimoto Gen II system.
Technical Specifications
- Optic: Kuria Optic Bi-LED
- DRL Color: White
- DRL Light Source: Osram 5000K LEDs
- Turn-Signal Color: Amber
- Turn-Signal Operation: Sequential
- Lens Material: UV-resistant polycarbonate
- Cooling: Internal die-cast aluminum heat sinks
- Traffic Pattern: North American left-hand-drive vehicles
- Compliance: DOT, SAE, and FMVSS108 standards when correctly aimed
- Replaces GM Part Numbers: 23148368, 84501052, and 23216692
Installation Overview

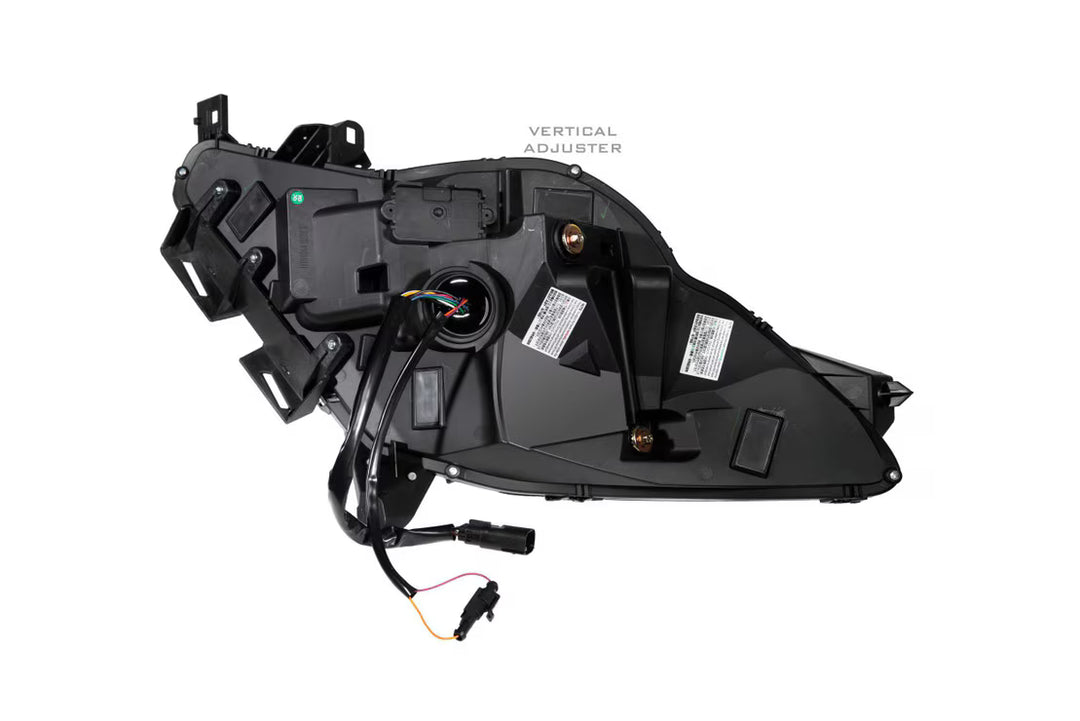

The Morimoto LF463 headlights connect through the factory C7 Corvette headlight plugs without cutting or splicing. Each complete housing replaces the corresponding factory HID headlight assembly.
Plug-and-play describes the electrical connections. Replacing the complete housings still requires access to the factory headlights and removal of the necessary front-end fasteners and surrounding components. Confirm all lighting functions and properly aim both headlights after installation.
CORVETTE COMPATIBILITY
- Generation: C7 Corvette
- Stingray and Z51: 2014–2019 with LT1 6.2L V8
- Z06: 2015–2019 with LT4 6.2L supercharged V8
- Grand Sport: 2017–2019 with LT1 6.2L V8
- ZR1: 2019 with LT5 6.2L supercharged V8
- Body Styles: Coupe and convertible
- Vehicle Specification: North American left-hand-drive C7 Corvette
Why Buy Morimoto C7 Corvette Headlights From Custom Corvette Accessories?
Custom Corvette Accessories is enthusiast owned and operated, so correct Corvette fitment and clear product details matter. The Morimoto LF463 package includes the complete driver-side and passenger-side headlight assemblies, backed by a five-year limited warranty, Free Shipping in the USA, and Corvette-focused support before ordering.
✅ In-stock items ship within 24–48 hours via Standard Ground.
✅ Free shipping items are available in the Continental US only.
✅ Custom quotes available for 2-Day, Next Day, or Saturday delivery.
✅ Custom or backordered items ship as soon as available.
