C7 Corvette aFe POWER 95mm Throttle Body

C7 Corvette 95mm Throttle Body 2014-2019 - advanced FLOW engineering 46-39110

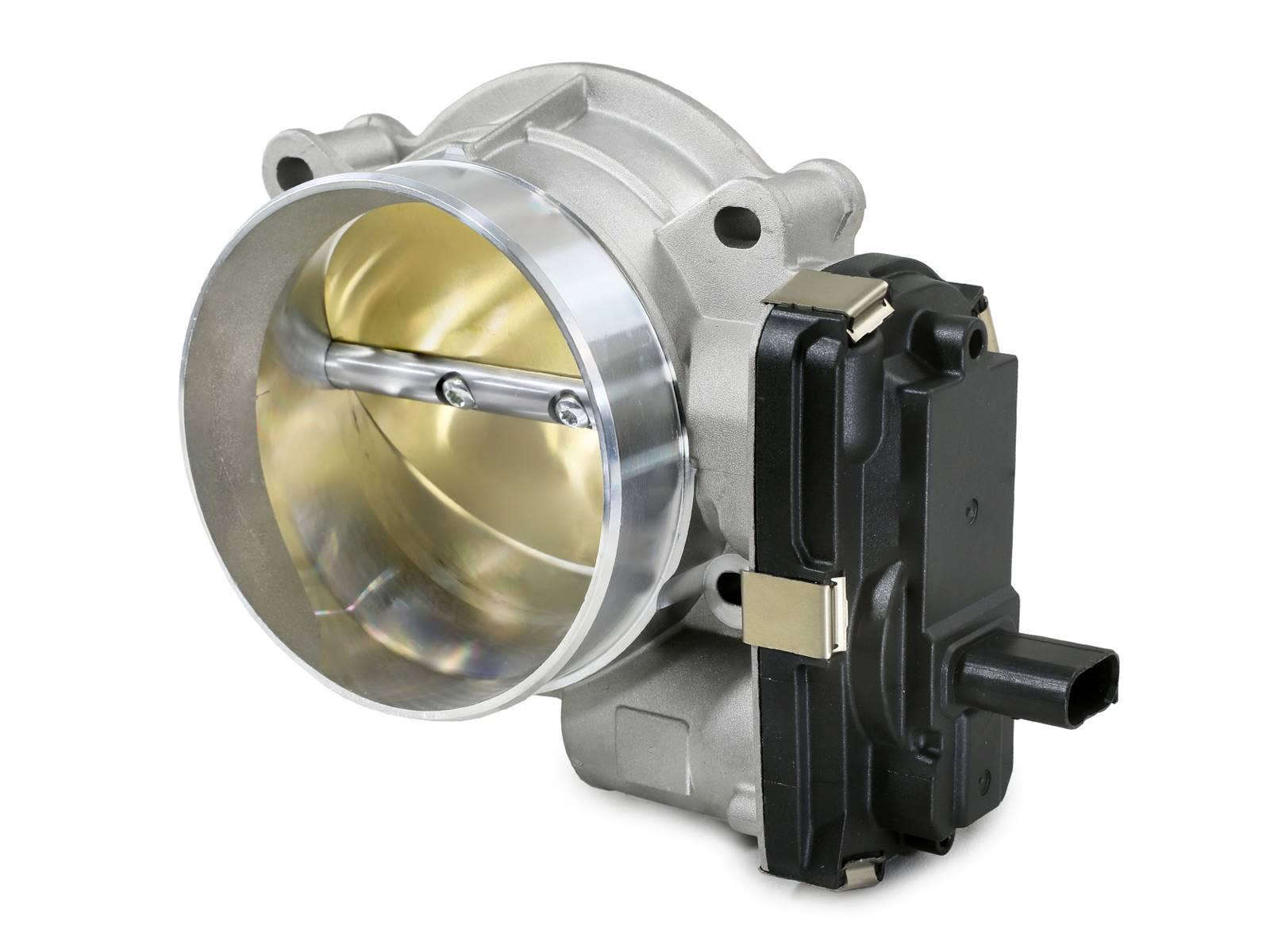

The C7 leaves the factory with an 87mm throttle body feeding a 6.2L V8. The aFe POWER 95mm Throttle Body, part number 46-39110, replaces it with a 95mm bore and ships with the billet adapter plate that mates the larger housing to the factory intake manifold. Both pieces are in one box, which matters on a C7 because the adapter is not a shelf item at most parts counters.

It fits three C7 trims across two different engines. On the 2014-2019 Stingray and 2017-2019 Grand Sport it opens the throat ahead of the naturally aspirated LT1. On the 2015-2019 Z06 it feeds the supercharged LT4. Your factory drive-by-wire connector carries over either way, so no tuning is required.

Product Details

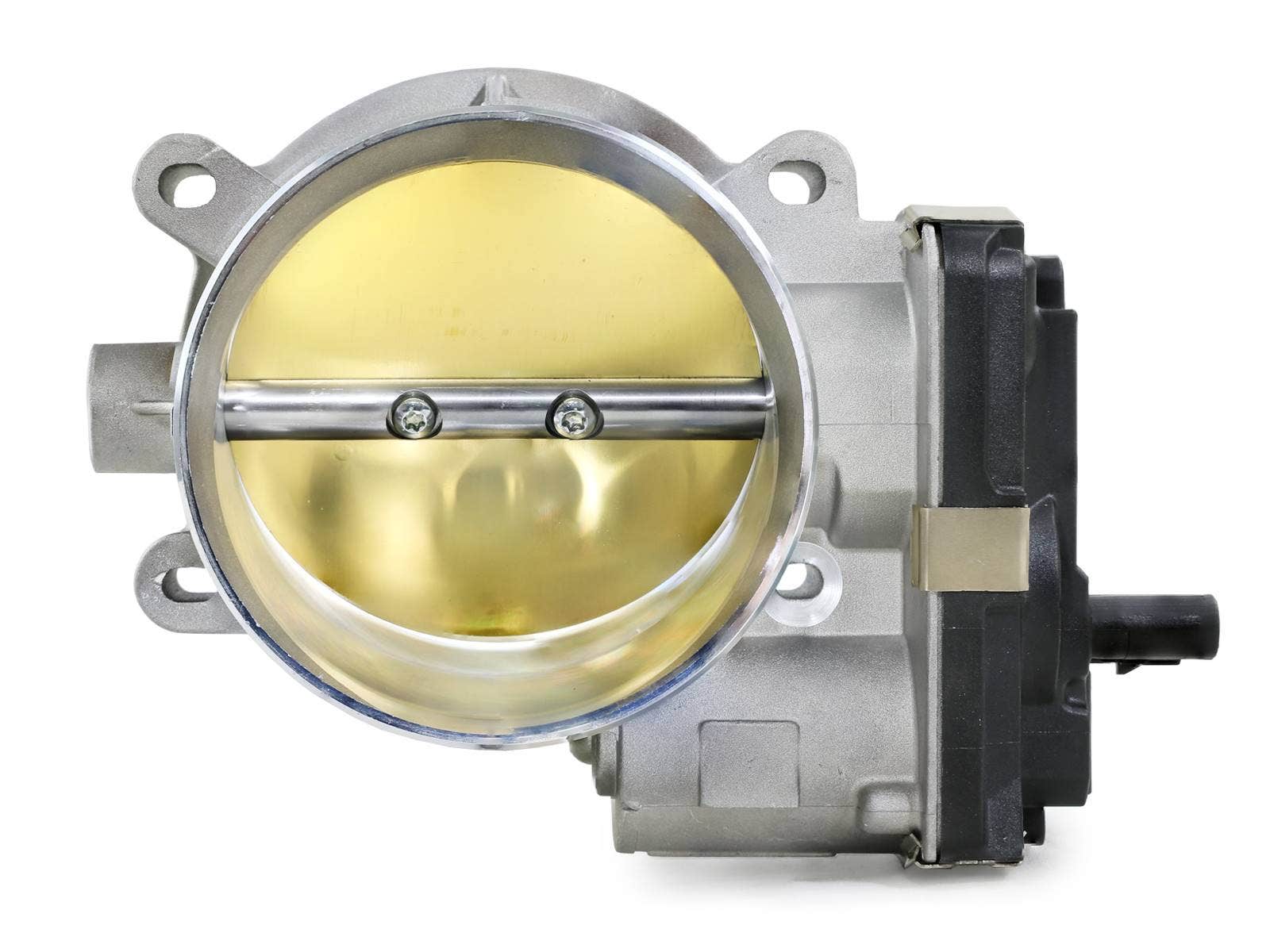

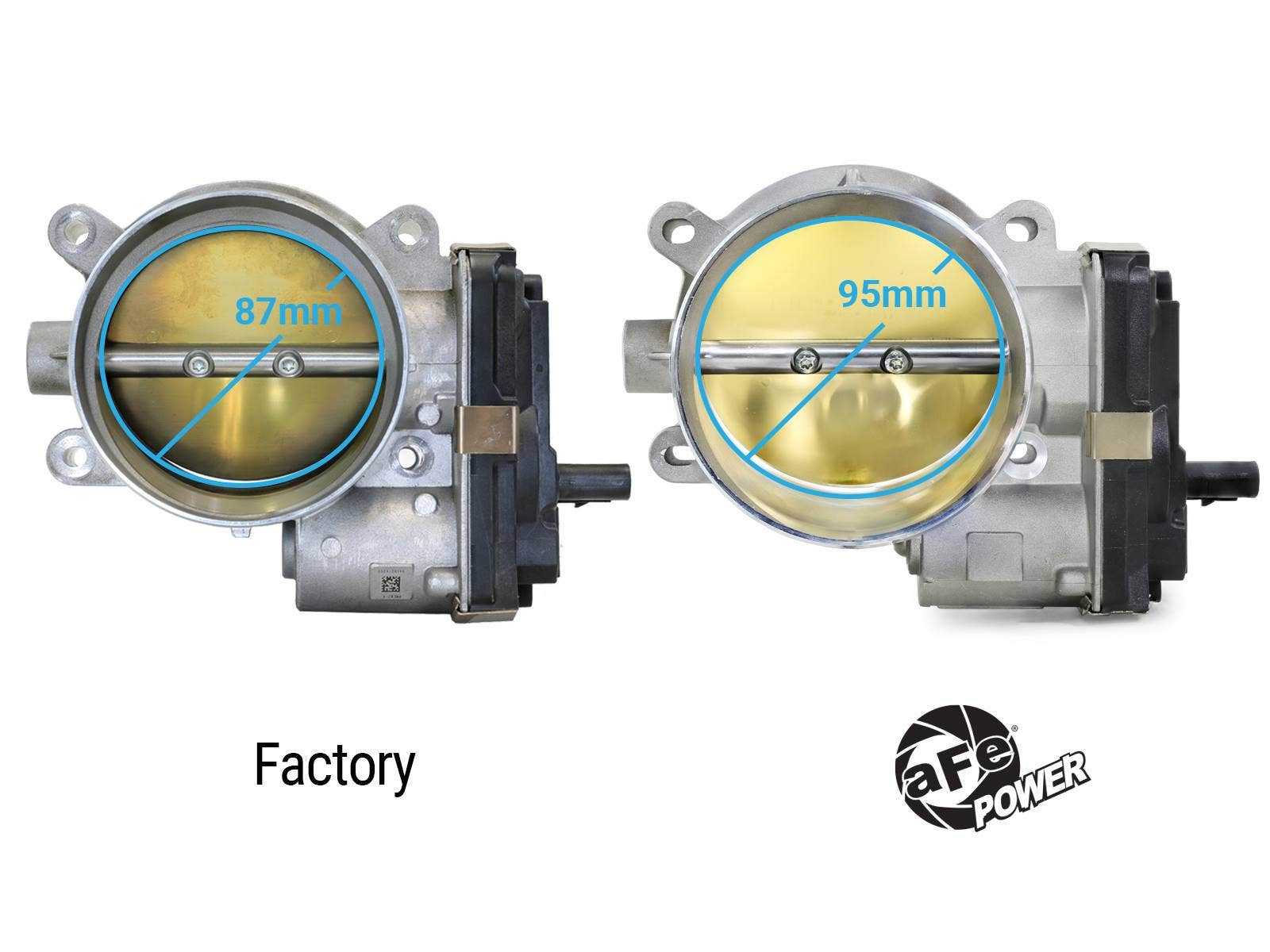

• 95mm bore, up from the 87mm factory throttle body, with a serrated swirl design machined through the bore.
• Bolt-on. No cutting, no drilling. The four factory screws are the only fasteners involved.
• 87mm to 95mm adapter plate machined from 6061-T6 billet aluminum and supplied in the kit.
• The throttle body casting is aluminum. The adapter is the billet piece.
• Drive-by-wire throttle, retaining the factory connector and pedal calibration.
• Natural uncoated aluminum, no anodising or paint.
• Coupe and convertible, all three fitted trims.

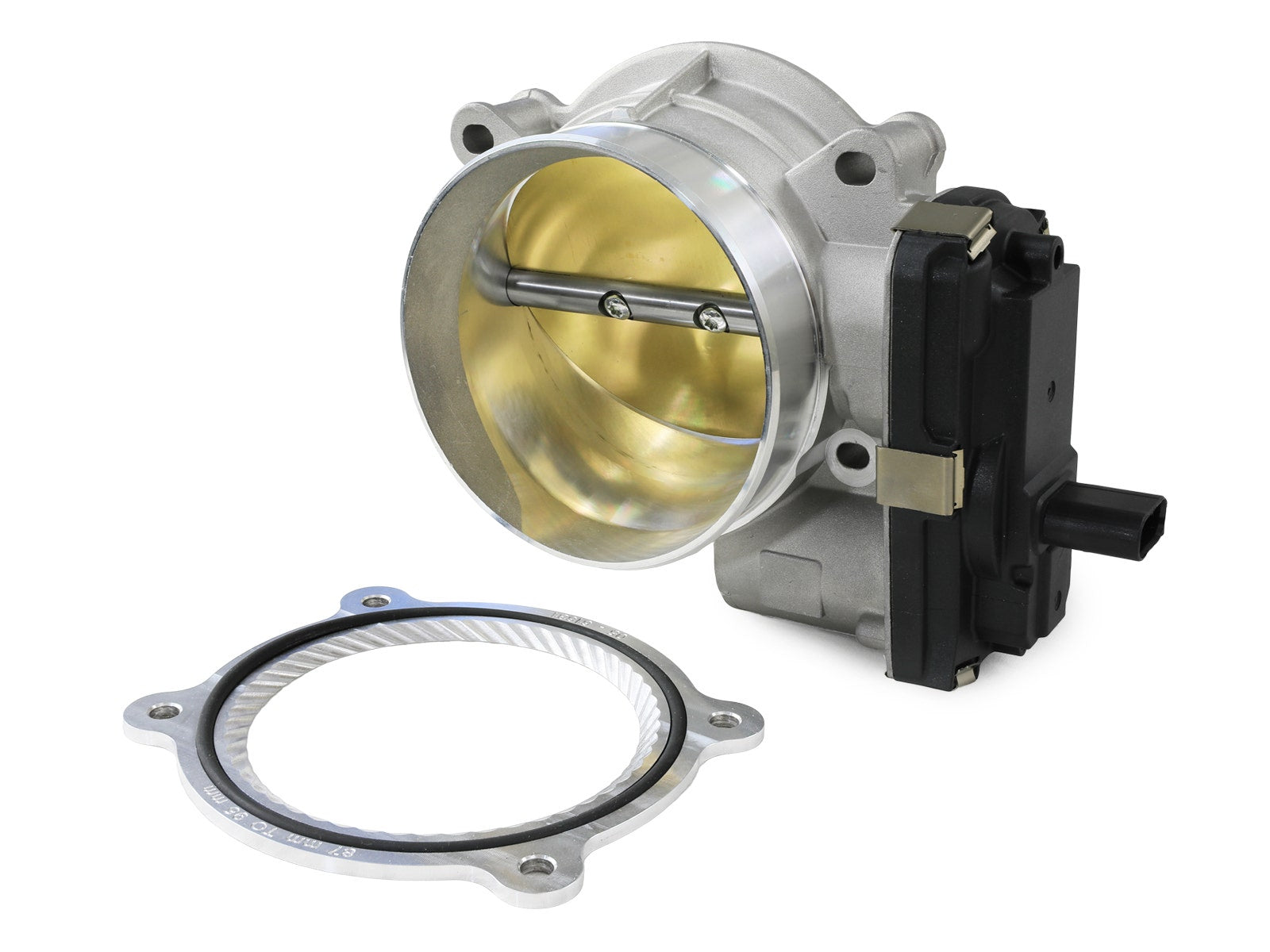

• Box contents: throttle body, billet adapter, throttle body O-ring gasket.

Benefits

• Front-engine access. On a C7 the throttle body sits at the front of the intake manifold with the hood up. This is hand-tool work in your own garage, not a lift job.
• One part number covers Stingray, Grand Sport and Z06. If you own more than one C7, or you are shopping before you have settled on a trim, 46-39110 does not change.
• The adapter is included. Sourcing a 87mm-to-95mm plate separately is the step that stalls most of these swaps.
• No tune, no shop time. Factory connector, factory pedal mapping, nothing to flash.
• Reversible. The stock throttle body goes back on with the same four screws whenever you want it there.

What to Expect

C7s are now seven to twelve years old, and the ones getting a 95mm throttle body are usually not stock elsewhere. If you are already running an aftermarket intake, this is the next restriction upstream of the manifold. If you are still on the factory airbox, a cold air intake is the larger single change of the two, and this part complements it rather than replacing the need for it.

Set aside an afternoon rather than an hour if the car has never had the manifold area apart. Aluminum threads that have been torqued once since 2014 deserve care. Recheck the four screws at 100 to 200 miles.

Important Notes

• Mounting hardware is not supplied. Your four factory screws come off with the stock throttle body and go back on with this one. Keep them together at the bench.
• Intake manifold gasket is not supplied. aFe notes it may need replacing. On a car of this age, have one on hand before you start rather than mid-job.
• This is a throttle body, not a throttle body spacer. A spacer leaves the 87mm factory bore in place. This replaces the bore. Any spacer you are running comes off when this goes on.
• Covered by the aFe POWER Limited Warranty, 1 Year.

Corvette Compatibility

• C7 Corvette Stingray 2014 - 2019. 6.2L LT1
• C7 Corvette Grand Sport 2017 - 2019. 6.2L LT1
• C7 Corvette Z06 2015 - 2019. 6.2L LT4 supercharged
• The 2019 ZR1 is not listed by aFe for this part. The ZR1 uses the 6.2L LT5 with its own supercharger and induction, and aFe does not publish it as an application.
• Not CARB compliant - not legal for sale or use in California

Why Buy This C7 Corvette aFe POWER 95mm Throttle Body From Custom Corvette Accessories?

We are Corvette people first. That is why this listing tells you the adapter is included, that the ZR1 is not an application, and that you will want a manifold gasket on the bench before you start — the three things a C7 owner finds out the hard way otherwise. Call us before you order if you are unsure which throttle body your car left the factory with.
