AWE 3015-43606 Touring Edition Axle-Back Exhaust for C6 Corvette Z06/ZR1 - Diamond Black
Give your 2006–2013 C6 Corvette Z06 and 2009–2013 ZR1 a fuller V8 note with 180 Technology® to target cruising drone with the AWE 3015-43606 Touring Edition Axle-Back Exhaust. Designed around the naturally aspirated LS7 7.0L V8 or supercharged LS9 6.2L V8, the system combines 3-inch T304L stainless steel tubing with four 4.5-inch Diamond Black tips. It is made for six-speed manual cars; no ECU tune is required for the axle-back installation.
Let the engine remain the main event without allowing a steady exhaust boom to take over the cabin. The Touring system combines an unrestricted rear flow path with frequency-canceling chambers, bringing a more developed sound to both the naturally aspirated Z06 and supercharged ZR1. Diamond Black outlets complete the rear view, while the system itself is aimed at the driver who wants to enjoy more of the car on every mile.
Product Details

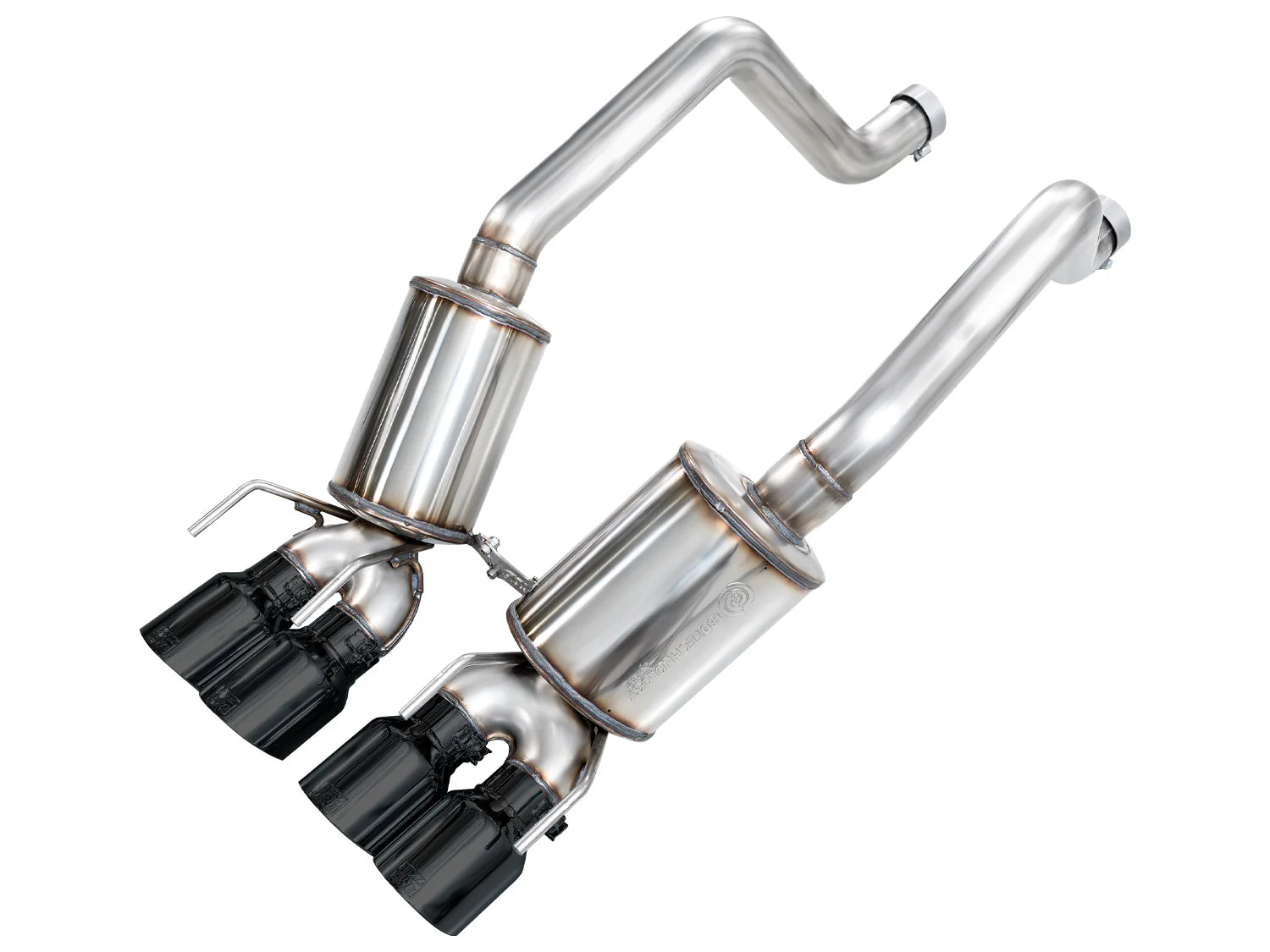

- System: Touring Edition driver- and passenger-side rear sections, part 3015-43606.
- Construction: U.S.-sourced, CNC mandrel-bent T304L stainless steel with .065-inch wall thickness.
- Connections: 3-inch band-clamp connections for the specified factory exhaust layout.

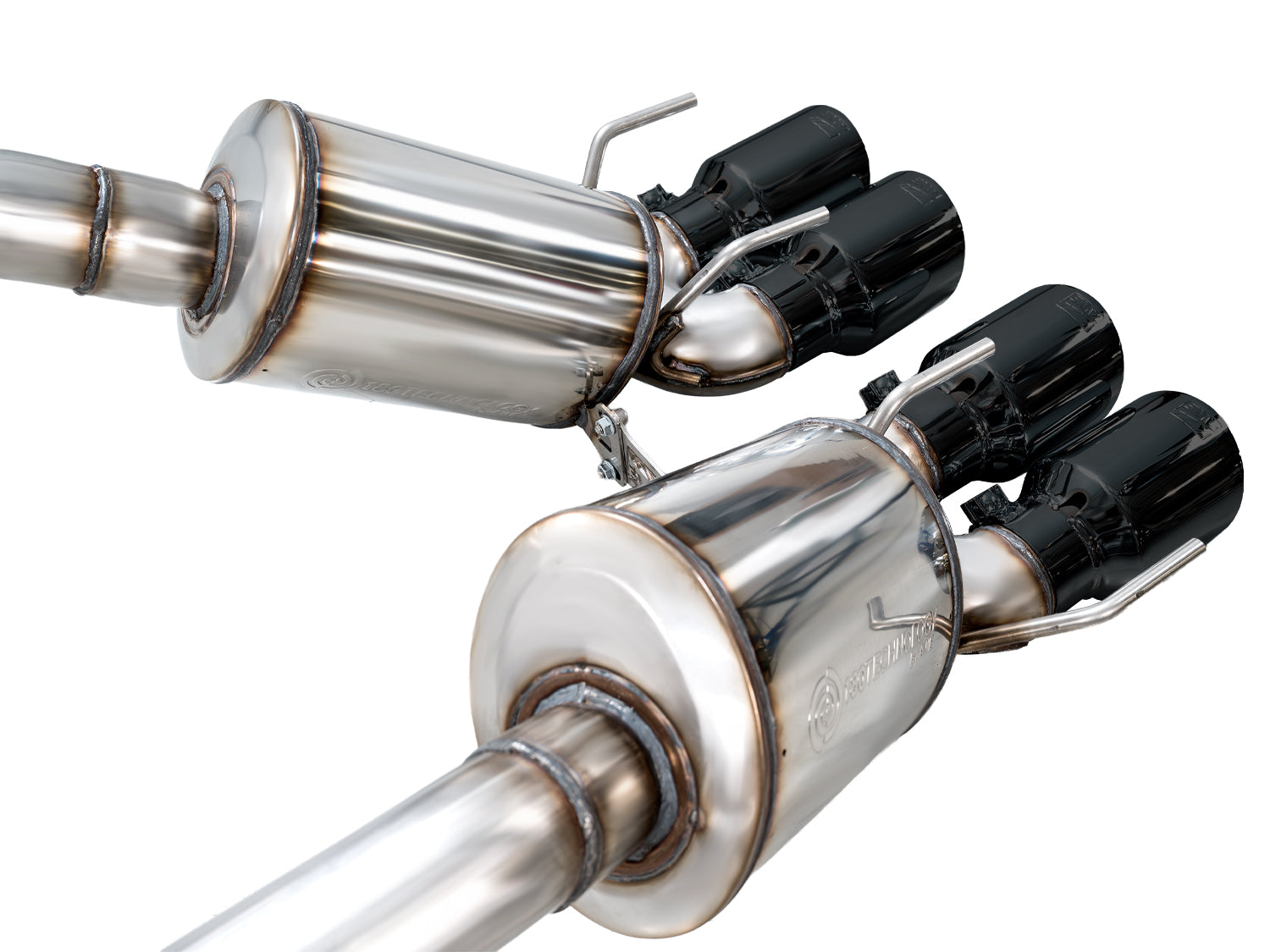

- Tips: Four Diamond Black double-walled, slash-cut outlets with adjustable positioning.
- Sound design: Straight-through rear sections with 180 Technology acoustic chambers.

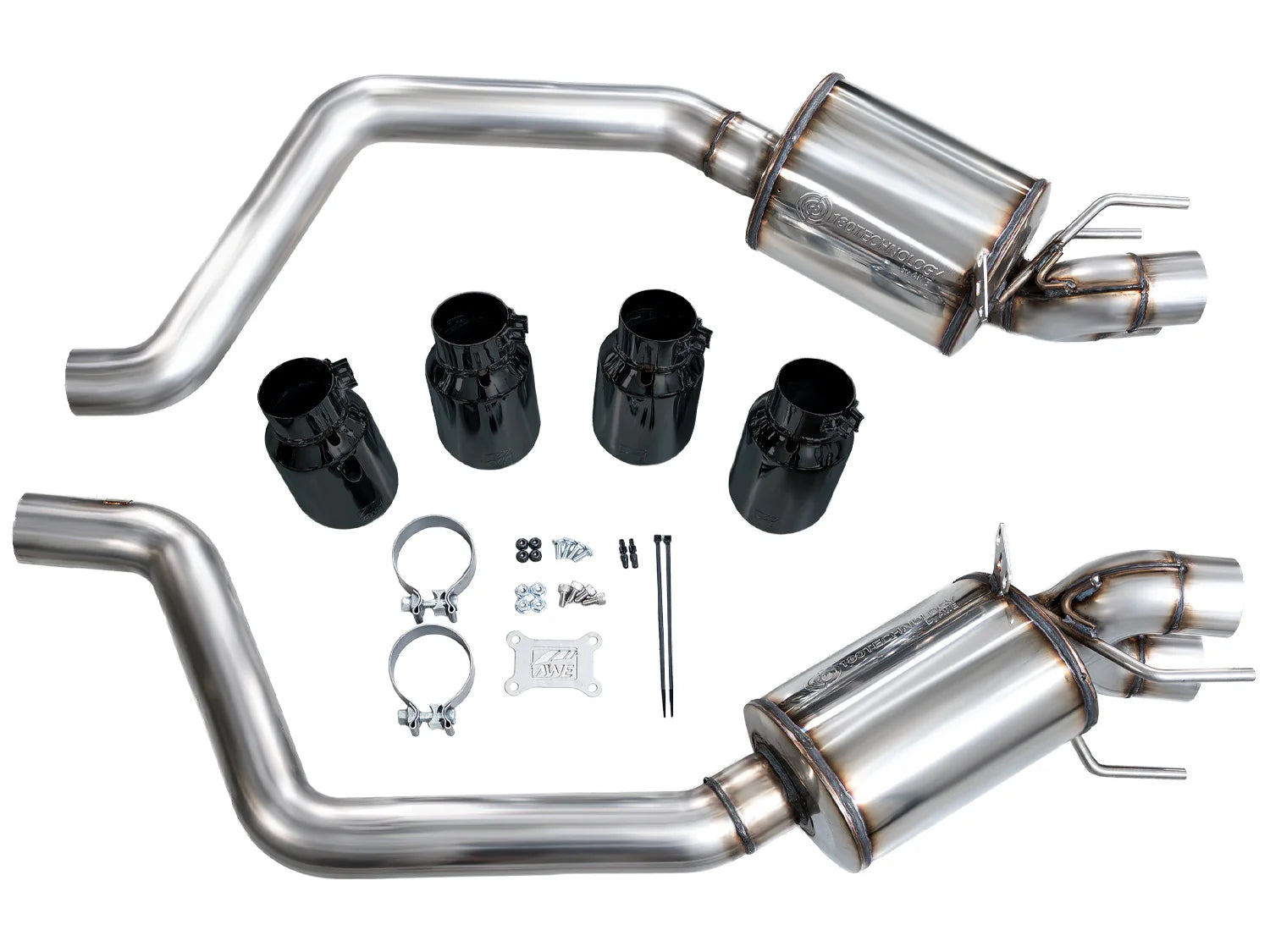

- Included: Rear sections, four tips, band clamps and installation hardware, plus vacuum-line fittings, caps and ties.
- Manufacture: Engineered and manufactured in Pennsylvania, USA.
Benefits
- Three-inch connections suit the Z06/ZR1 exhaust layout without a generic Base-model adapter claim.
- The Touring exhaust character brings more LS7 or LS9 character to a road-driven Corvette.

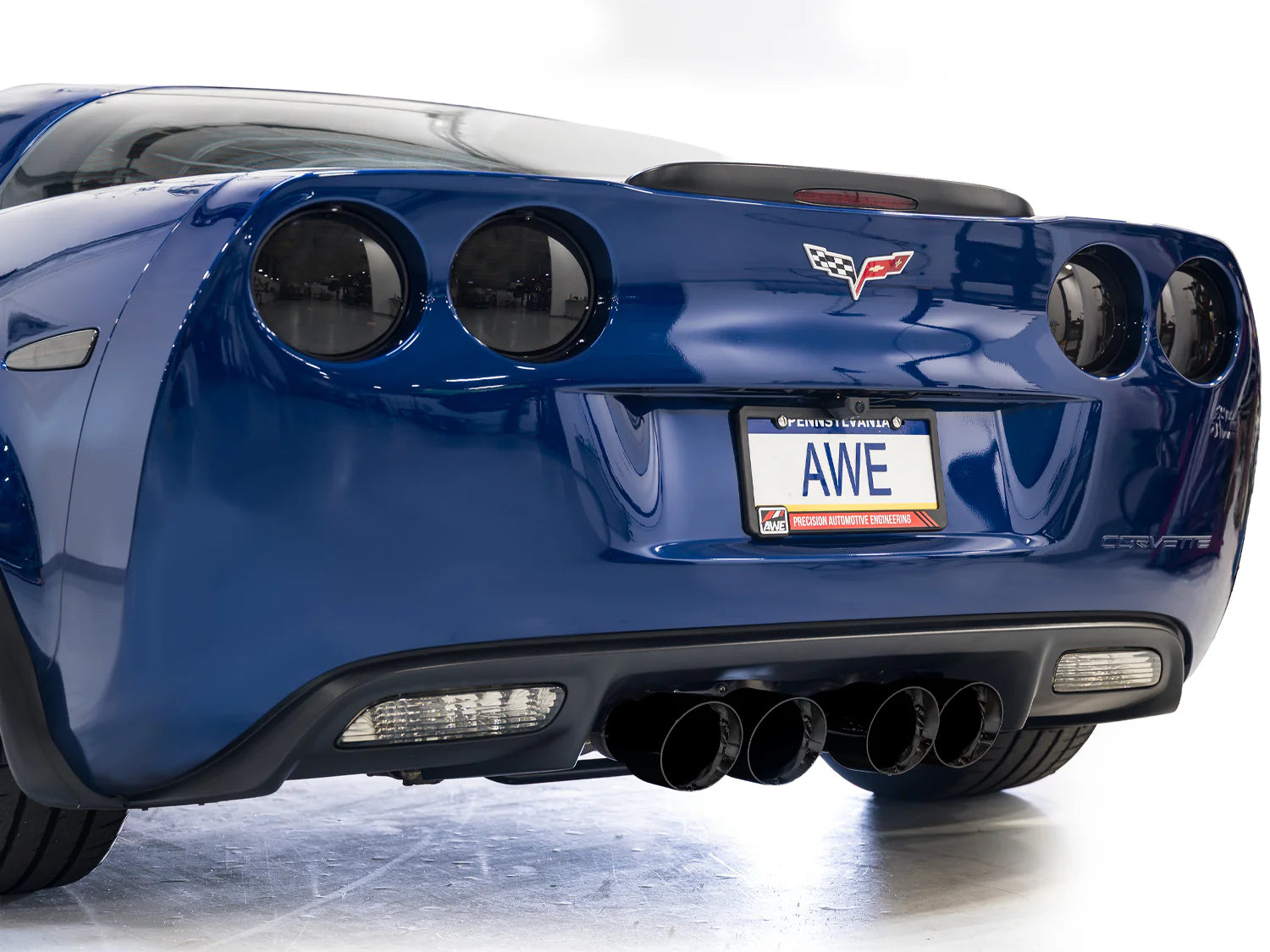

- Diamond Black tips give the Z06/ZR1 a dark rear accent while maintaining the familiar four-outlet arrangement.
The four separate tips let the rear view be adjusted carefully during fitting. Support the sections in their factory mounting locations, establish consistent spacing and projection, then verify clearance before final tightening. Finish with a check of the exhaust connections for leaks.
Important Exhaust Notes
Touring controls resonance acoustically; it does not preserve the original exhaust valves or switch between factory sound modes. During installation, the supplied fittings and caps close the original vacuum hoses, which are then tied safely away from the exhaust. The guide recommends lift access to remove the old rear sections without cutting and transfer the original rubber hangers. Existing front pipes may be retained.
CORVETTE COMPATIBILITY
- Z06: 2006–2013; LS7 7.0L naturally aspirated V8
- ZR1: 2009–2013; LS9 6.2L supercharged V8
- Body and transmission: Coupe; six-speed manual
