C6 Corvette Morimoto XB Evo LED Headlights (2005–2013)
The Morimoto XB Evo LED Headlights, part number LF2-460, are a premium headlight upgrade for 2005–2013 C6 Corvette Base, Grand Sport, Z06, and ZR1 models. This complete pair replaces the factory headlight assemblies with dual Morimoto Bi-LED projectors, configurable white or amber daytime running lights, configurable sequential or fade-off turn signals, and a welcome sequence. Factory-style wiring and included installation accessories support plug-and-play electrical installation for C6 Corvette trim levels without cutting or splicing.
Product Details
- Brand: Morimoto
- Product Line: XB Evo
- Product Type: Complete LED headlight assemblies
- Fitment: 2005–2013 C6 Corvette

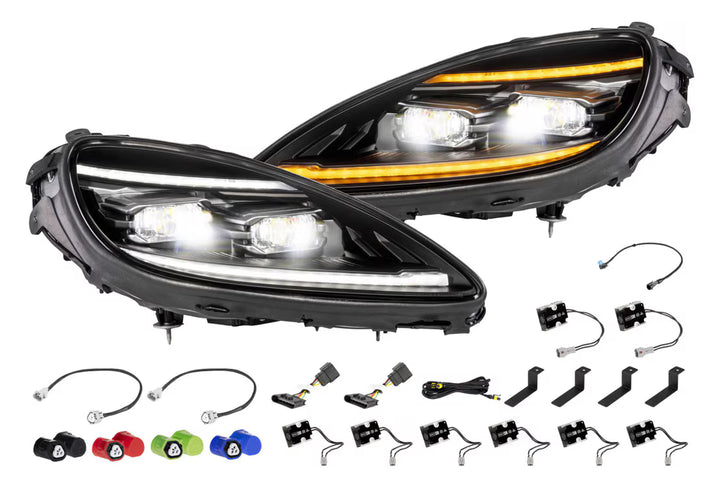

- Included Quantity: Two headlights, one driver side and one passenger side
- Main Optics: Dual Type 2 Ishida Optic Bi-LED projectors
- Daytime Running Lights: Configurable white or amber
- Turn Signals: Configurable sequential or fade-off
- Startup Sequence: Welcome sequence

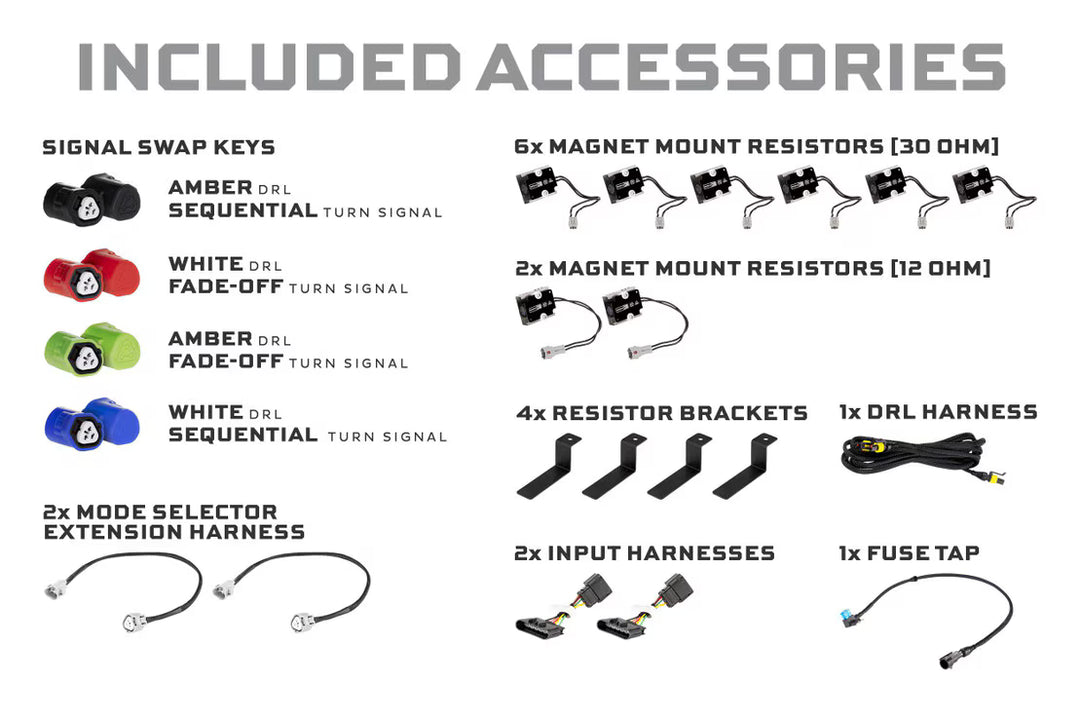

- Included Accessories: Mode selectors, resistors, brackets, extensions, input harnesses, DRL harness, and fuse tap
- Electrical Connection: Plug-and-play factory-style wiring
- Part Number: LF2-460
- Warranty: Morimoto five-year limited warranty
- Shipping: Free Shipping in the USA
Benefits
- Replaces aging or damaged C6 Corvette headlight assemblies with a complete premium Morimoto system
- Dual Bi-LED projectors provide strong low-beam intensity and wide high-beam coverage
- Unique side-shooter optics add more width than the XB Evo Hybrid headlights
- Daytime running lights can be configured in white or amber
- Turn signals can be configured for a sequential sweep or fade-off operation
- Welcome sequence adds a more modern startup appearance
- Factory-style wiring supports modification-free electrical installation
- UV-shield hard-coated lenses help resist fading, cracking, and yellowing
What to Expect
The Morimoto XB Evo headlights are built for C6 Corvette owners who want Morimoto’s most advanced headlight option for the generation. The daytime running lights can be set to white or amber, and the turn signals can be configured for a sequential sweep or a more traditional fade-off pattern.
These headlights use dual Bi-LED projectors along with Morimoto’s side-shooter optics to deliver a wide and powerful beam pattern. The welcome sequence adds a more premium startup look when the Corvette is turned on.
This is a complete headlight assembly replacement, not a bulb upgrade for the factory housing. The included selector keys and wiring accessories allow the preferred lighting settings to be chosen during installation.
Technical Specifications
- Traffic Pattern: Left-hand drive / right-hand traffic only
- Main Optics: 2x Type 2 Ishida Optic Bi-LED

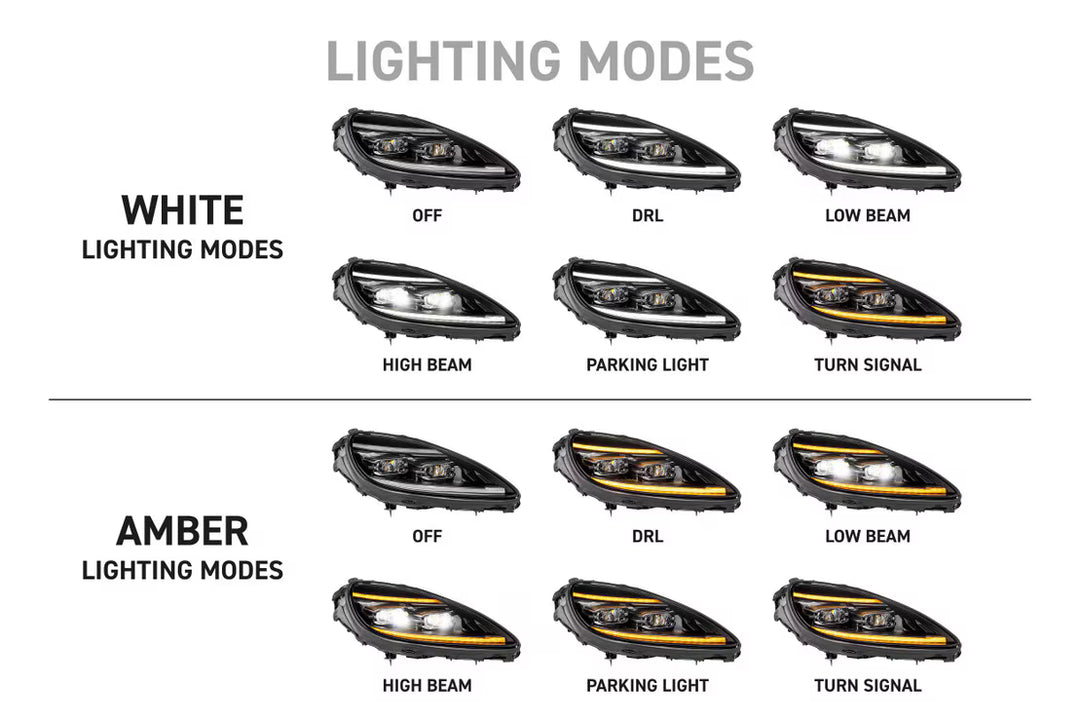

- Functions: Low beam, high beam, parking light, turn signal, welcome sequence, and daytime running light
- Daytime Running Light Color: White or amber, configurable
- Turn-Signal Operation: Sequential or fade-off, configurable
- Internal Bezel Finish: Black and titanium
- Wiring: Plug and play for all trim levels
- Lens: Polycarbonate with UV-shield hard coating
- Compliance: Designed to meet DOT, SAE, and FMVSS108 standards
- Replaces GM Part Numbers: 20789679, 20789680, 25867785, 25867786, 20936420, 20789706, 15849088, 15875917, 15237568, 15237578, 20832116, 20832118, 20909411, 20909412, 19371153, and 19371151
Installation Overview
The Morimoto XB Evo headlights are designed to bolt to the original C6 Corvette mounting points and connect to the factory wiring with the included harnesses and accessories. No cutting or splicing is required for the electrical installation.
Plug-and-play describes the electrical side of the installation. Replacing the complete housings still requires access to the factory headlights and surrounding front-end components. Confirm the selected DRL and turn-signal settings, test all lighting functions, and properly aim both headlights after installation.
CORVETTE COMPATIBILITY
- Generation: C6 Corvette
- Base Coupe and Convertible: 2005–2013 with LS2 6.0L V8 and LS3 6.2L V8
- Grand Sport: 2010–2013 with LS3 6.2L V8
- Z06: 2006–2013 with LS7 7.0L V8
- ZR1: 2009–2013 with LS9 6.2L supercharged V8
- Trim Coverage: 1LT, 2LT, 3LT, and 4LT
- Vehicle Specification: North American left-hand-drive C6 Corvette
Why Buy Morimoto C6 Corvette Headlights From Custom Corvette Accessories?
Custom Corvette Accessories is enthusiast owned and operated, so correct Corvette fitment and clear product differences matter. The Morimoto XB Evo package includes the complete driver-side and passenger-side headlight assemblies, signal and DRL selector hardware, a five-year limited warranty, Free Shipping in the USA, and Corvette-focused support before ordering.
✅ In-stock items ship within 24–48 hours via Standard Ground.
✅ Free shipping items are available in the Continental US only.
✅ Custom quotes available for 2-Day, Next Day, or Saturday delivery.
✅ Custom or backordered items ship as soon as available.
