AWE 3020-43662 Track Edition Axle-Back Exhaust for C6 Corvette Base/Grand Sport - Diamond Black
Give your 2009–2013 C6 Corvette Base and 2010–2013 Grand Sport a louder, more aggressive V8 exhaust note with the AWE 3020-43662 Track Edition Axle-Back Exhaust. Designed around the naturally aspirated LS3 6.2L V8, the system combines 3-inch and 2.5-inch T304L stainless steel tubing with four 4.5-inch Diamond Black tips. It is made for manual and automatic cars; no ECU tune is required for the axle-back installation.
This is the rear exhaust for an LS3 owner who wants the car to sound purposeful every time it leaves the garage. Track Edition keeps the path through the rear sections open, producing an energetic note instead of trying to fade into the background. The sound grows with engine load, while the dark outlets give the familiar four-tip rear view a more understated finish.
Product Details

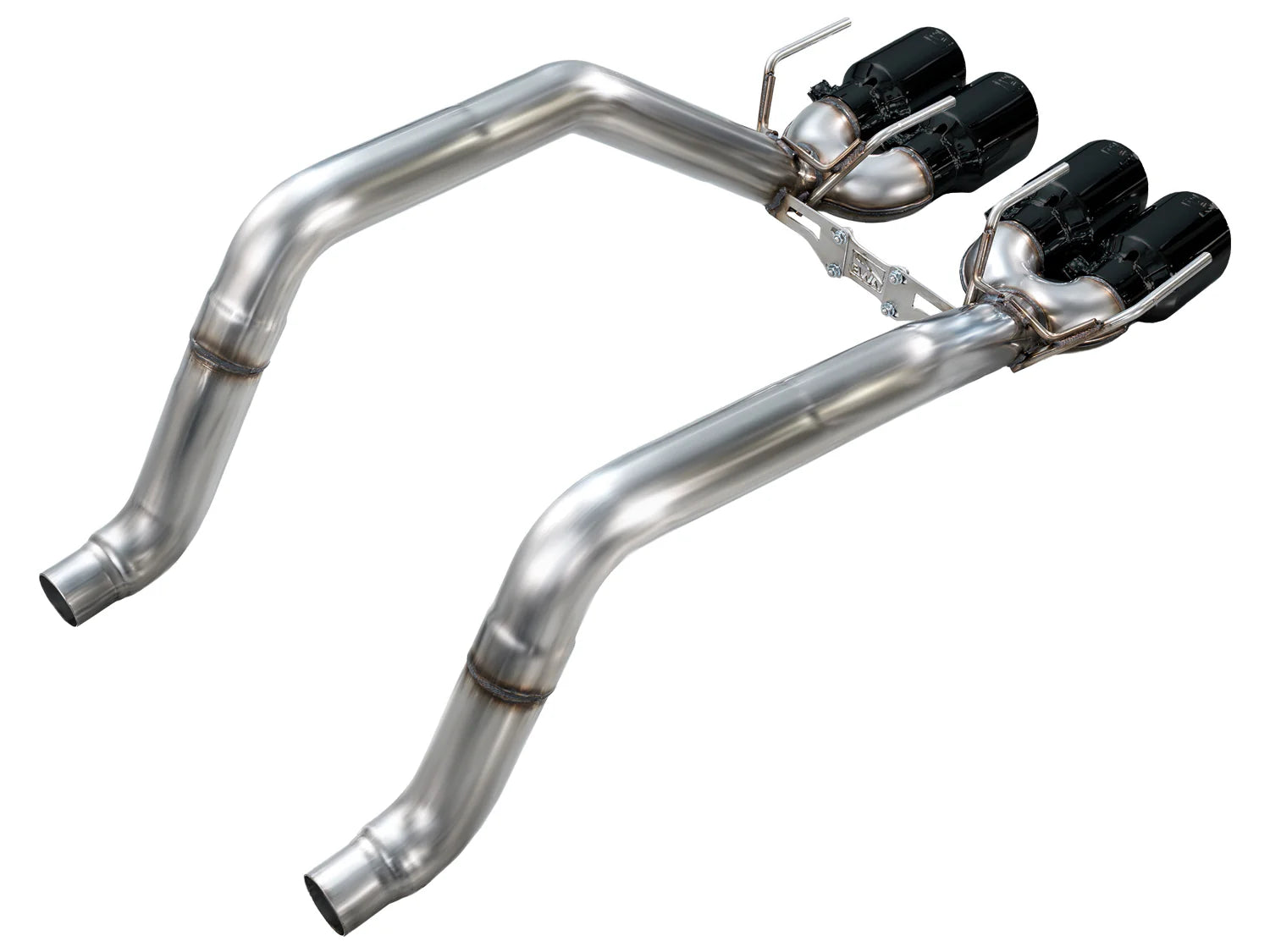

- System: Track Edition driver- and passenger-side rear sections, part 3020-43662.
- Construction: U.S.-sourced, CNC mandrel-bent T304L stainless steel with .065-inch wall thickness.
- Connections: 2.5-inch band-clamp connections for the specified factory exhaust layout.

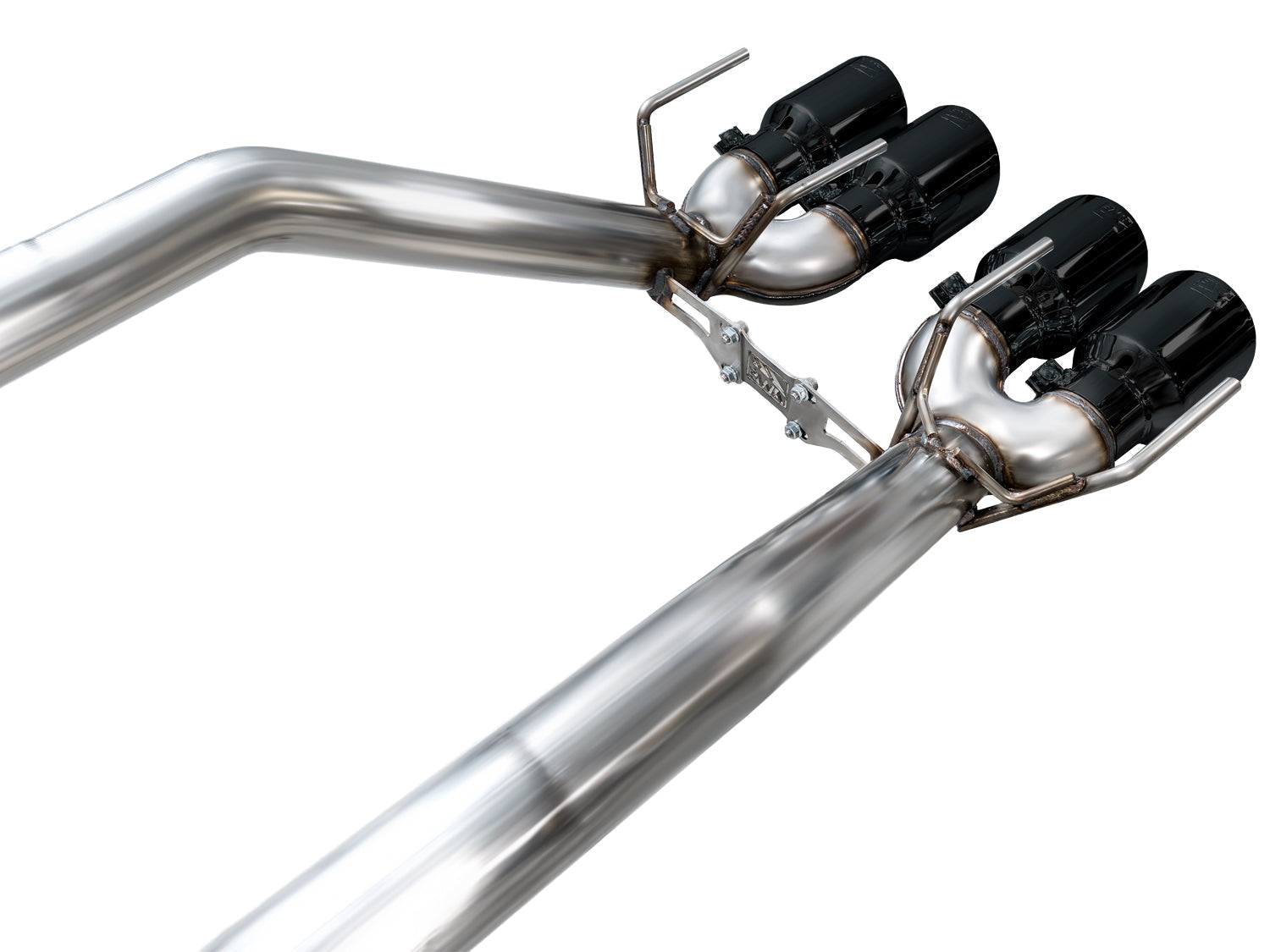

- Tips: Four Diamond Black double-walled, slash-cut outlets with adjustable positioning.
- Sound design: Open, non-baffled rear sections for an assertive exhaust voice.

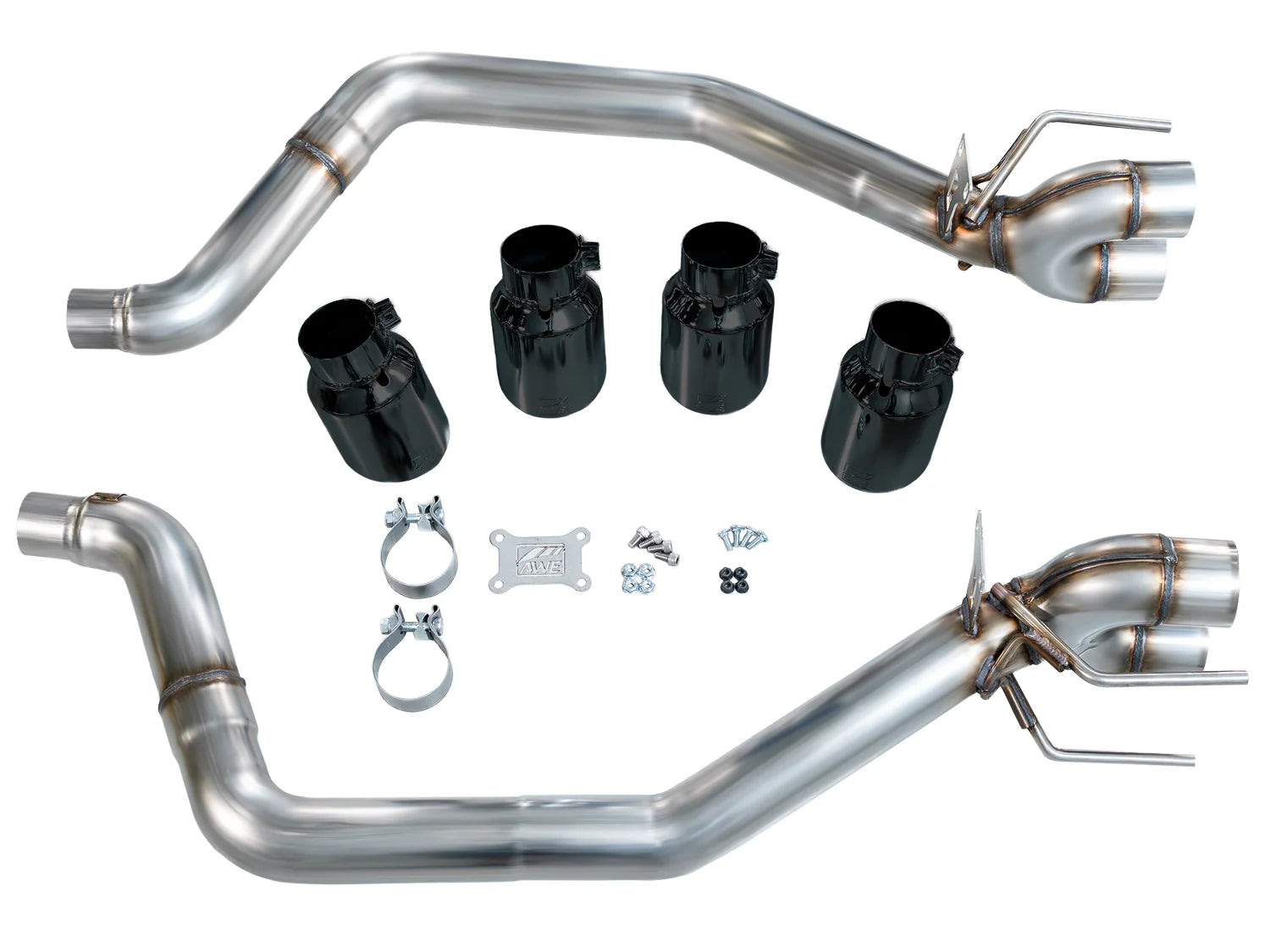

- Included: Rear sections, four tips, band clamps and installation hardware.
- Manufacture: Engineered and manufactured in Pennsylvania, USA.
Benefits
- Corrosion-resistant stainless construction is suited to a Corvette that gets driven.
- A bolder LS3 soundtrack gives Base and Grand Sport owners a clear step up in exhaust presence.
- Diamond Black tips give the Base/Grand Sport a dark rear accent while maintaining the familiar four-outlet arrangement.
Each tip is positioned during fitting rather than treated as a fixed, one-piece outlet. Have the installer set their depth and spacing with the complete rear assembly supported correctly, then check the system for leaks and adequate clearance.
Important Exhaust Notes
A 2009 Base and a 2010–2013 Grand Sport share this application, but Grand Sport did not begin in 2009. Keep that distinction in mind when matching the system to your car. The original front pipes stay in place, and the supplied hardware secures the rear assembly. Professional installation on a lift provides the removal clearance described in the guide, including its additional step around the automatic shift linkage. Expect a more noticeable cabin soundtrack; Track Edition prioritizes exhaust presence over suppression of cruising resonance.
CORVETTE COMPATIBILITY
- Base: 2009–2013; LS3 6.2L V8
- Grand Sport: 2010–2013; LS3 6.2L V8
- Body and transmissions: Coupe or convertible; manual or automatic
