NGK Laser Platinum PTR5D-10 Spark Plugs for C5 Corvette Z06 LS6
NGK Laser Platinum PTR5D-10 spark plugs, stock number 3784, fit the 2001–2004 C5 Corvette Z06 with its stock 5.7L LS6 V8. Each order contains eight spark plugs in two manufacturer four-packs, supplying the complete V8 spark-plug set for scheduled ignition maintenance.
A naturally aspirated LS6 benefits from spark plugs selected for its actual engine configuration. Laser Platinum’s fine-wire platinum firing tip promotes ignitability, and its copper core transfers heat away from the electrode. High-grade ceramic insulation supports the electrical path through the plug. For a stock C5 Z06 used on the road, this combination brings a consistent platinum plug design to all eight cylinders without requiring you to mix plug types during routine ignition maintenance.
Product Details
- Product identity: NGK Laser Platinum, stock 3784, design code PTR5D-10.

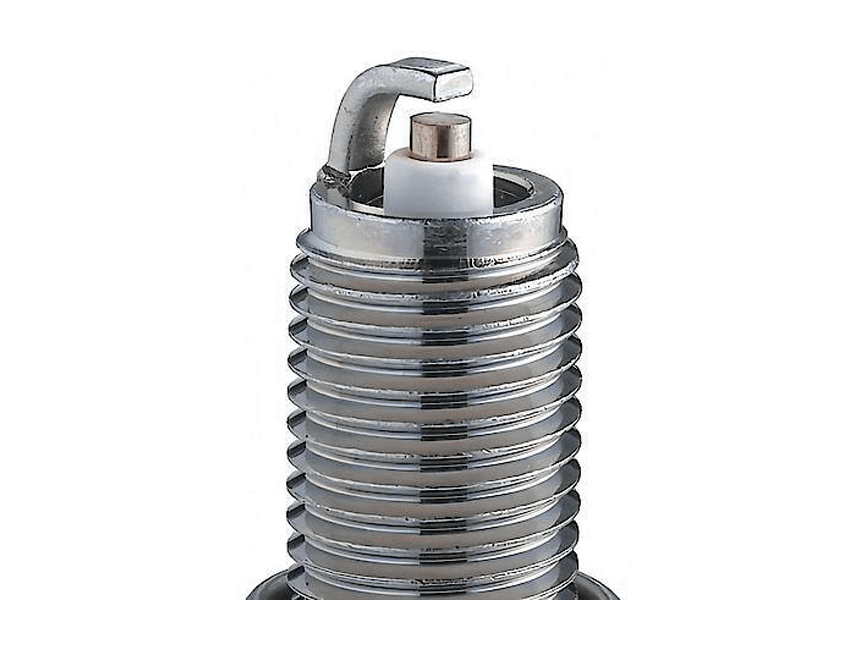

- Firing tip: Fine-wire platinum center electrode.
- Construction: Copper core for heat transfer and high-grade alumina silicate ceramic insulation.
- Shell protection: Trivalent metal plating supports corrosion resistance and dry-thread installation.
- Included: Eight matching spark plugs. Spark plug wires, coils and installation tools are separate.
Benefits
- Ignition support: The fine-wire firing design helps reduce flame quenching as combustion begins.
- Heat management: The copper core helps dissipate firing-end heat during engine operation.
- Electrical insulation: High-grade ceramic helps resist electrical breakdown through the insulator.
- Consistent service set: Eight matching platinum plugs renew the same ignition service item across every cylinder.
Important Notes
- Z06 configuration: This set covers the stock 2001–2004 C5 Z06 with the naturally aspirated 5.7L LS6, fixed-roof body and six-speed manual transmission. Confirm the installed engine if the car has been modified.
- Service history: Keep a record of the plug design and installation date with your LS6 maintenance records. Follow the service schedule appropriate to the installed plugs and your driving conditions rather than assuming a fixed mileage from the platinum name.
- Application gap: Use 0.040 inch (1.02 mm) for the stock LS6. Measure every plug with a round-wire or pin gauge before installation; the supplied preset does not replace the required application setting. If adjustment is needed, move only the ground electrode; never pry against the fine center tip.
- Installation care: Use clean, dry threads without anti-seize and follow the vehicle’s specified tightening procedure. Protect the ceramic during handling and inspect the plug before fitting it.
- Modified engines: Added boost, increased compression or other internal changes require your engine builder to confirm the plug specification and gap.
CORVETTE COMPATIBILITY
- 2001–2004 C5 Corvette Z06
- Fixed-roof coupe
- 5.7L LS6 V8, stock configuration
- Six-speed manual only
