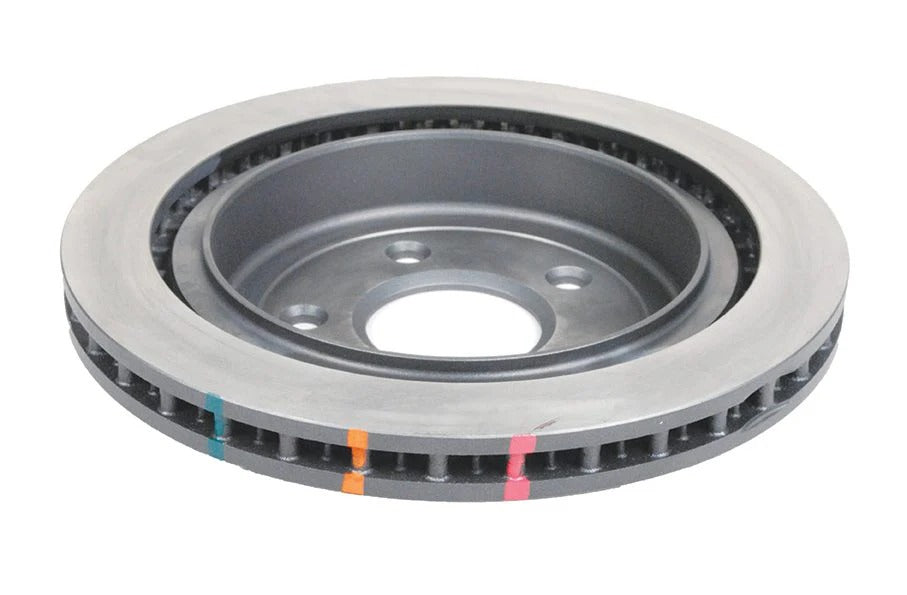

C5 Corvette DBA 4000 Series T3 Rear Brake Rotors
The DBA 4000 Series T3 Rear Brake Rotors, part number DBA42995S, are direct-replacement performance rotors for 1997–2004 C5 Corvette models, including the 2001–2004 Z06. This listing includes a complete pair of two rear rotors for installation with the factory C5 Corvette rear calipers and mounting brackets. DBA’s T3 slotted surface, high-carbon iron construction, and Kangaroo Paw ventilation help manage heat and maintain consistent braking during spirited street driving and other demanding use.
Product Details
- Brand: DBA – Disc Brakes Australia
- Product Line: 4000 Series T3
- Product Type: Slotted rear brake rotors
- Fitment: 1997–2004 C5 Corvette
- Position: Rear axle

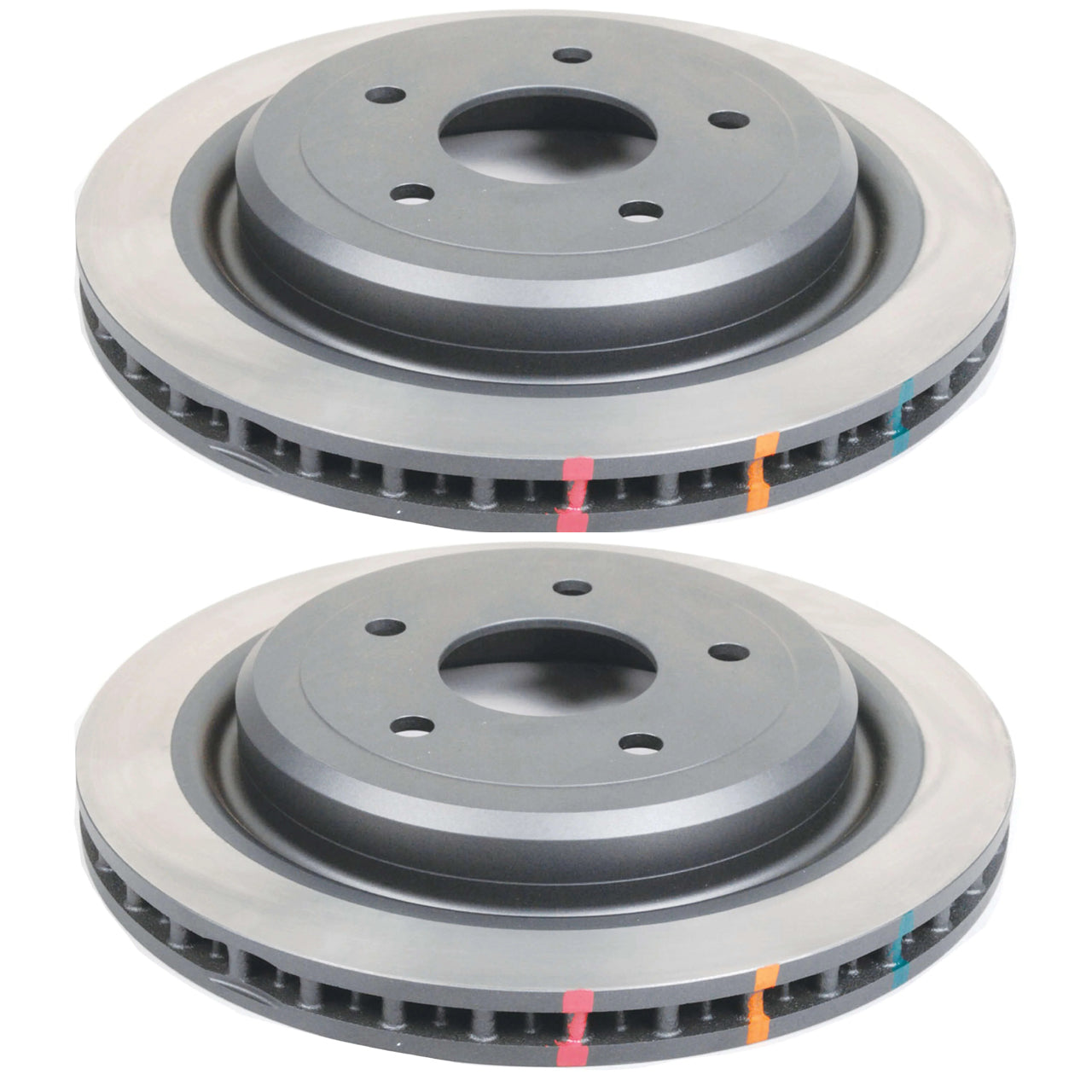

- Included Quantity: Two rear rotors, complete pair
- Construction: One-piece vented rotor
- Rotor Material: High-carbon alloyed iron
- Surface: CNC-machined T3 slots
- Slot Design: Bi-directional
- Internal Ventilation: DBA Kangaroo Paw ventilation
- Part Number: DBA42995S per rotor
- Brake Pads Included: No
- Warranty: DBA 12-month or 12,000-mile limited warranty against manufacturing defects
Benefits
- Complete pair replaces both C5 Corvette rear brake rotors
- Direct factory-size fitment with the original rear calipers and mounting brackets
- T3 slots help clear brake dust, friction gases, and debris from the pad surface
- Bi-directional design allows either rotor to be installed on the driver or passenger side
- High-carbon iron construction supports heat control during repeated braking
- Kangaroo Paw ventilation promotes airflow through the rotor
- Thermal Stability Profiling helps improve durability through repeated heat cycles
- Suitable for daily driving, performance street use, autocross, and demanding road conditions
What to Expect
The DBA 4000 Series T3 is a factory-size, one-piece rear rotor upgrade rather than a big-brake conversion. It retains the original C5 Corvette rear brake configuration while adding DBA’s performance-focused rotor material, slot pattern, ventilation, and heat-management features.
The T3 slots pass across the brake-pad surface as the rotor turns, helping maintain consistent pad contact during repeated braking. Because the slot pattern is bi-directional, DBA42995S does not require separate left- and right-side part numbers.
Technical Specifications
- Outside Diameter: 305 mm / approximately 12 inches
- Rotor Thickness: 26 mm
- Minimum Thickness: 24 mm
- Overall Height: 49 mm
- Center Bore: 70.7 mm
- Bolt Pattern: 5 × 120.65 mm / 5 × 4.75 inches
- Rotor Weight: Approximately 14.88 pounds each
- Vane Design: DBA Kangaroo Paw vents
Installation Overview
The DBA42995S rotors install in the factory C5 Corvette rear rotor locations and work with the original rear calipers and mounting brackets. No caliper relocation brackets, rotor adapters, or changes to the factory rotor diameter are required.
Install both rotors together, clean the rotor and wheel-hub mounting surfaces, inspect the rear brake pads and caliper hardware, and follow the DBA and brake-pad manufacturer bedding procedures after installation.
Important Notes
- This listing is for a pair. Quantity one includes two DBA42995S rear brake rotors.
- Brake pads, calipers, brake fluid, hoses, and installation hardware are not included.
- These rotors fit the factory C5 Corvette rear brake system.
- Aftermarket big-brake kits may use different rotor dimensions and mounting arrangements.
- DBA’s standard warranty does not cover motorsport or speed-trial use.
CORVETTE COMPATIBILITY
- Generation: C5 Corvette
- Model Years: 1997–2004
- Base Coupe: 1997–2004 with LS1 5.7L V8
- Base Convertible: 1998–2004 with LS1 5.7L V8
- Fixed Roof Coupe: 1999–2000 with LS1 5.7L V8
- Z06: 2001–2004 with LS6 5.7L V8
- Brake Position: Rear axle
- Body Styles: Coupe, convertible, and Fixed Roof Coupe
