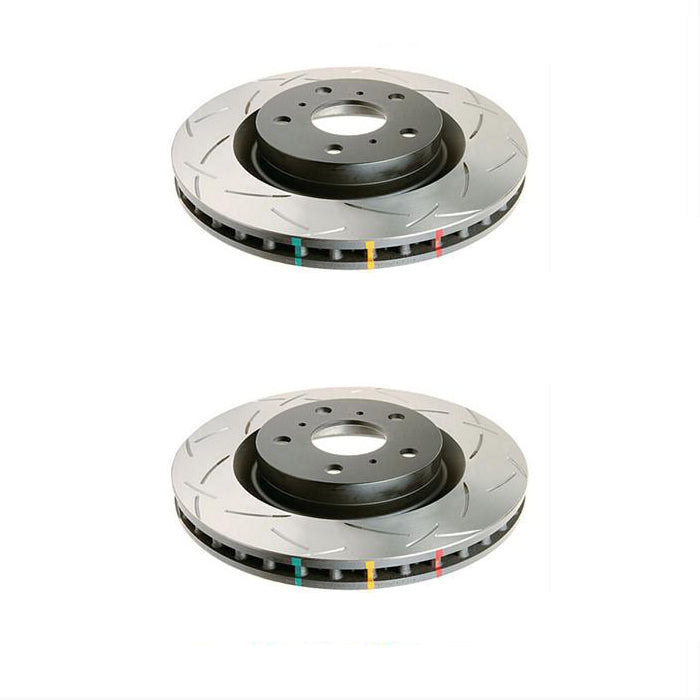

C5 Corvette DBA 4000 Series T3 Front Brake Rotors
The DBA 4000 Series T3 Front Brake Rotors, part number DBA42994S, are direct-replacement performance rotors for 1997–2004 C5 Corvette models, including the 2001–2004 Z06. This listing includes a complete pair of two front rotors for installation with the factory C5 Corvette calipers and mounting brackets. DBA’s T3 slotted surface, high-carbon iron construction, and Kangaroo Paw ventilation help manage heat and maintain consistent braking during spirited street driving, autocross, and other demanding use.
Product Details
- Brand: DBA – Disc Brakes Australia
- Product Line: 4000 Series T3
- Product Type: Slotted front brake rotors
- Fitment: 1997–2004 C5 Corvette
- Position: Front axle

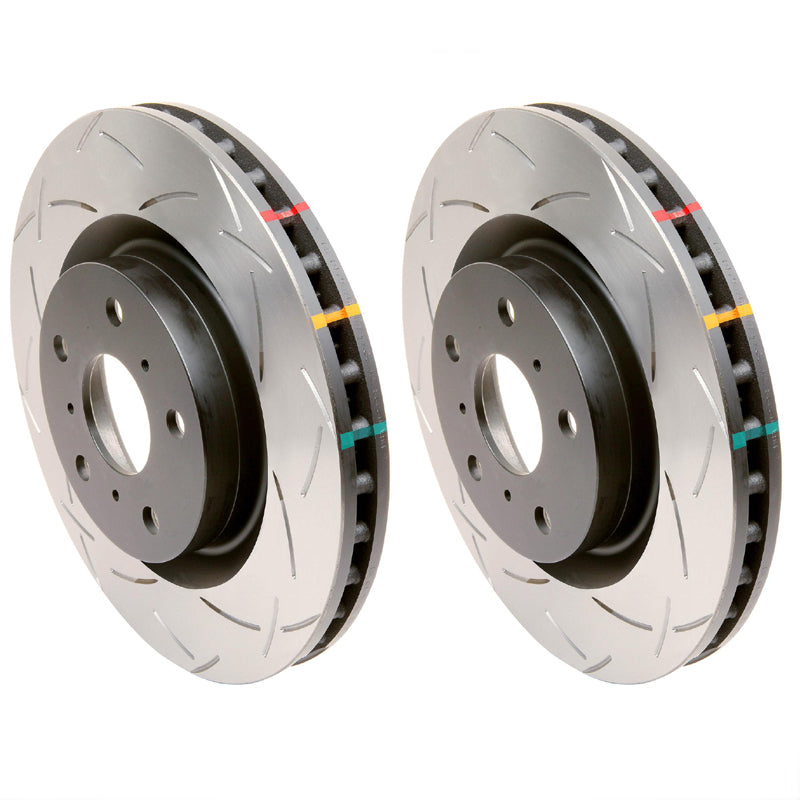

- Included Quantity: Two front rotors, complete pair
- Construction: One-piece vented rotor
- Rotor Material: High-carbon alloyed iron
- Surface: CNC-machined T3 slots
- Slot Design: Bi-directional
- Internal Ventilation: DBA Kangaroo Paw ventilation
- Part Number: DBA42994S per rotor
- Brake Pads Included: No
Benefits
- Complete pair replaces both C5 Corvette front brake rotors
- Direct factory-size fitment with the original calipers and mounting brackets
- T3 slots help clear brake dust, friction gases, and debris from the pad surface
- Bi-directional design allows either rotor to be installed on the driver or passenger side
- High-carbon iron construction supports improved heat control during repeated braking
- Kangaroo Paw ventilation promotes airflow through the rotor
- Thermographic heat markings help indicate rotor operating temperatures
- Suitable for daily driving, performance street use, autocross, and demanding road conditions
What to Expect
The DBA 4000 Series T3 is a factory-size, one-piece rotor upgrade rather than a big-brake conversion. It retains the original C5 Corvette front brake configuration while adding DBA’s performance-focused rotor material, slot pattern, ventilation, and heat-management features.
The T3 slots continuously pass across the brake-pad surface to help maintain consistent pad contact during repeated braking. Because the slot pattern is bi-directional, DBA42994S does not require separate left- and right-side part numbers.
Technical Specifications
- Outside Diameter: 325 mm / approximately 12.8 inches
- Rotor Thickness: 32 mm
- Minimum Thickness: 30 mm
- Overall Height: 45 mm
- Center Bore: 70.7 mm
- Bolt Pattern: 5 × 120.65 mm / 5 × 4.75 inches
- Rotor Weight: Approximately 23.5 pounds each
- Vane Design: DBA Kangaroo Paw vents
Installation Overview
The DBA42994S rotors install in the factory C5 Corvette front rotor locations and work with the original front calipers and mounting brackets. No caliper relocation brackets, rotor adapters, or changes to the factory rotor diameter are required.
Both rotors should be installed together. Clean the rotor and hub mounting surfaces before installation, inspect the brake pads and caliper hardware, and follow the DBA and brake-pad manufacturer bedding procedures after installation.
Important Notes
- This listing is for a pair. Quantity one includes two DBA42994S front brake rotors.
- Brake pads, calipers, brake fluid, hoses, and installation hardware are not included.
- These rotors fit the factory C5 Corvette front brake system.
- Aftermarket big-brake kits may use different rotor dimensions and mounting arrangements.
CORVETTE COMPATIBILITY
- Generation: C5 Corvette
- Model Years: 1997–2004
- Base Coupe: 1997–2004 with LS1 5.7L V8
- Base Convertible: 1998–2004 with LS1 5.7L V8
- Fixed Roof Coupe: 1999–2000 with LS1 5.7L V8
- Z06: 2001–2004 with LS6 5.7L V8
- Brake Position: Front axle
- Body Styles: Coupe, convertible, and Fixed Roof Coupe
