AMT Motorsport Switchblade Jacking Pucks

Name: C8 Corvette AMT Motorsport Switchblade Jacking Pucks
Brand: AMT Motorsport
SKU: PAD08
Price: 160.0 USD
Availability: InStock

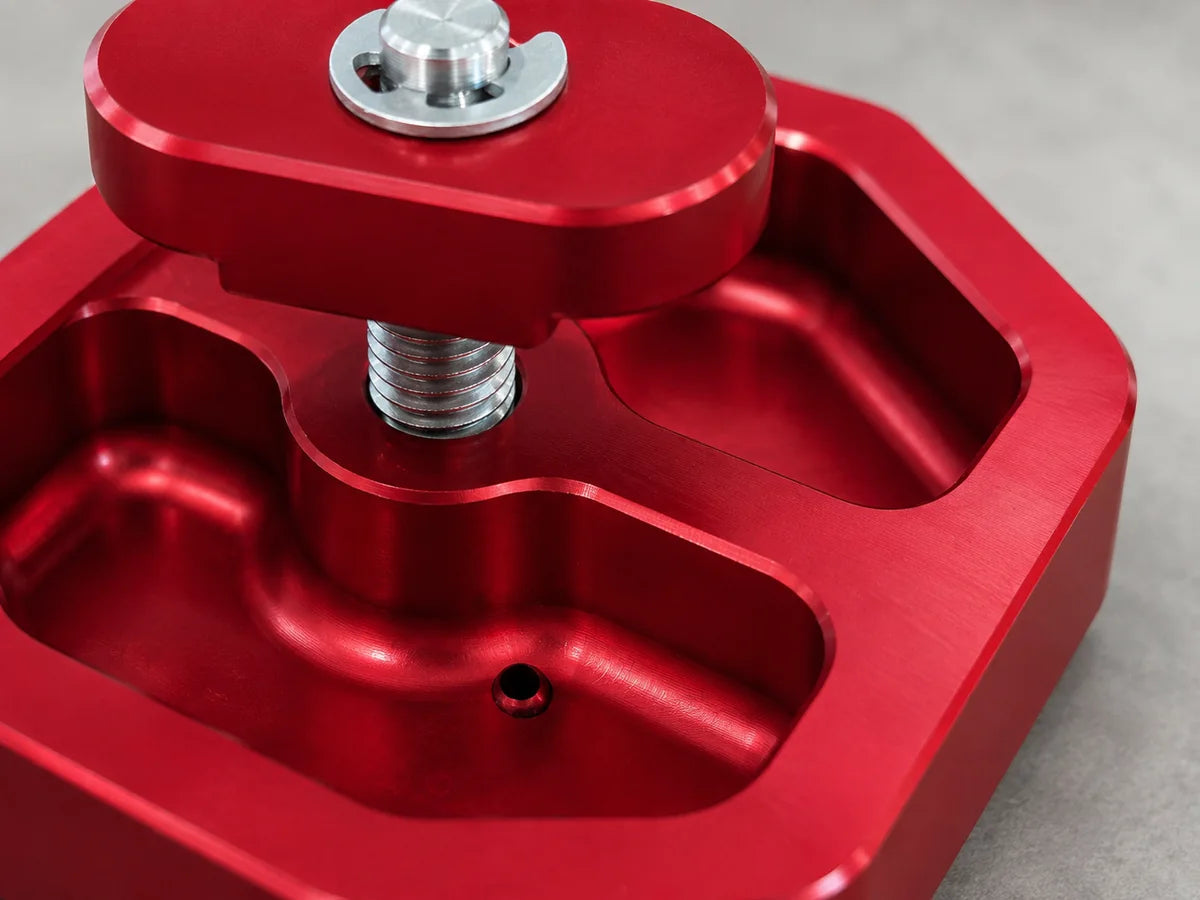

Close view of the small drainage opening inside a red AMT Switchblade jacking puck, alongside the recessed machined body pockets

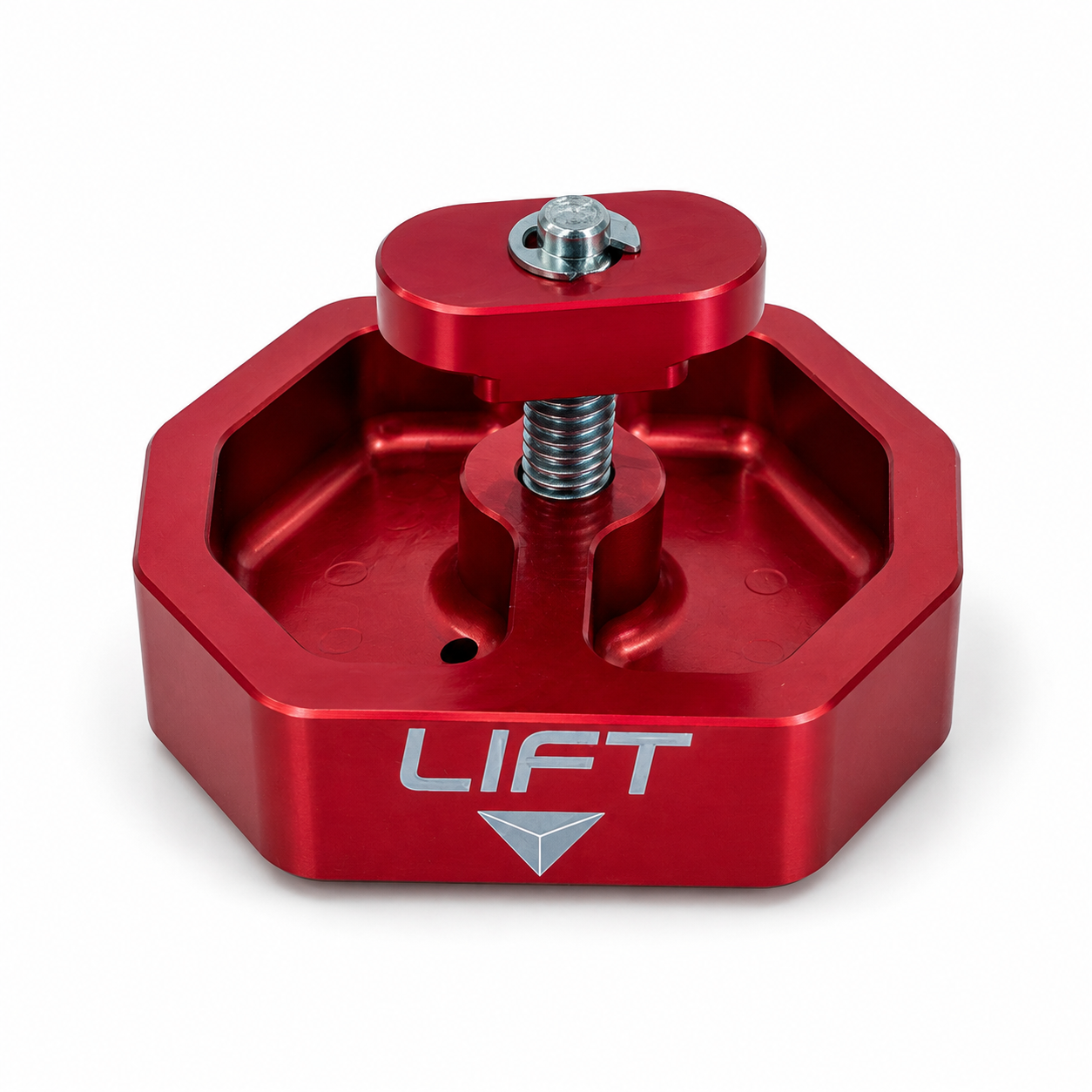

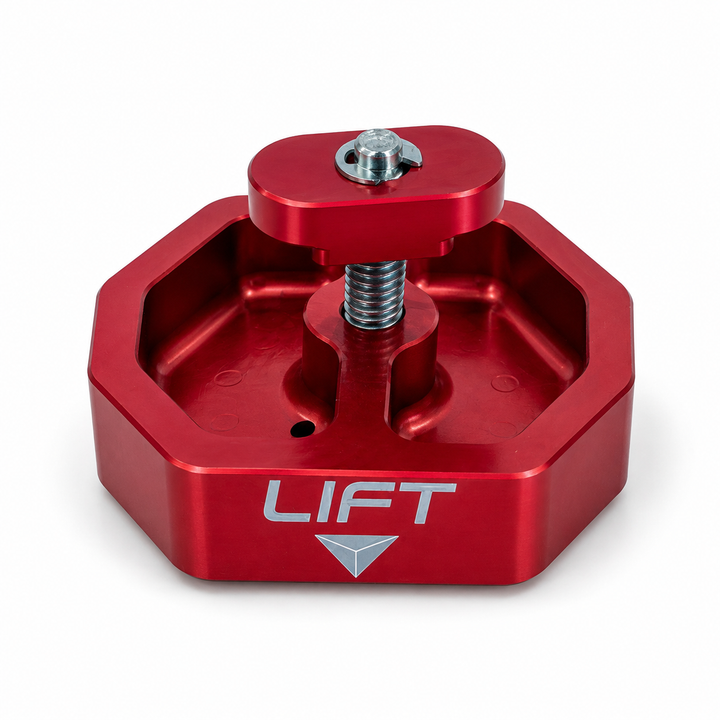

Red AMT Switchblade jacking puck viewed from above its pocketed body, showing the threaded screw and captive retaining plate

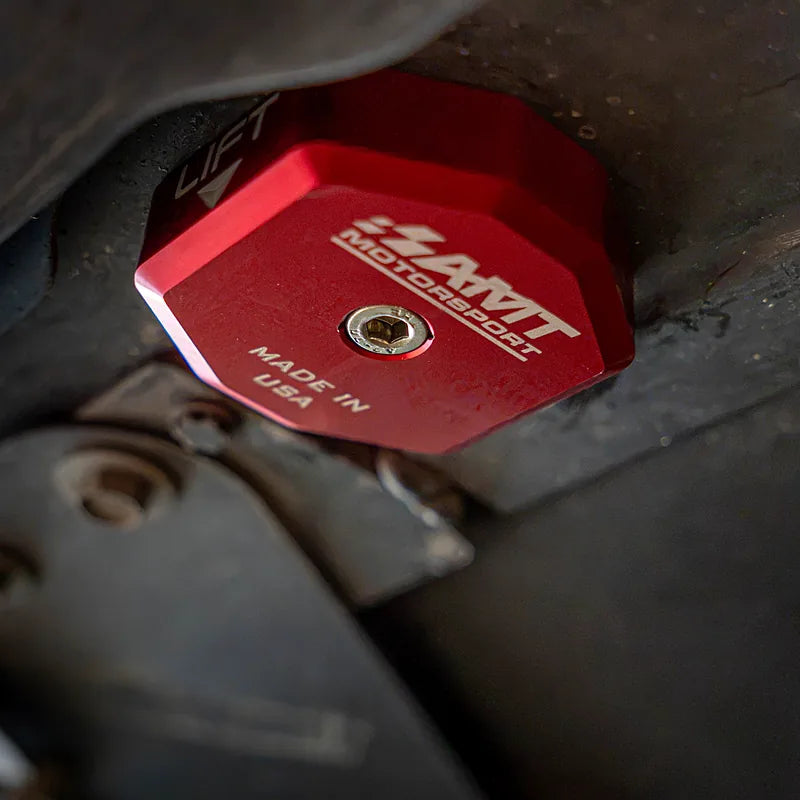

Red AMT Switchblade jacking puck secured at an underbody lift point, with the center screw seated in the marked aluminum contact face

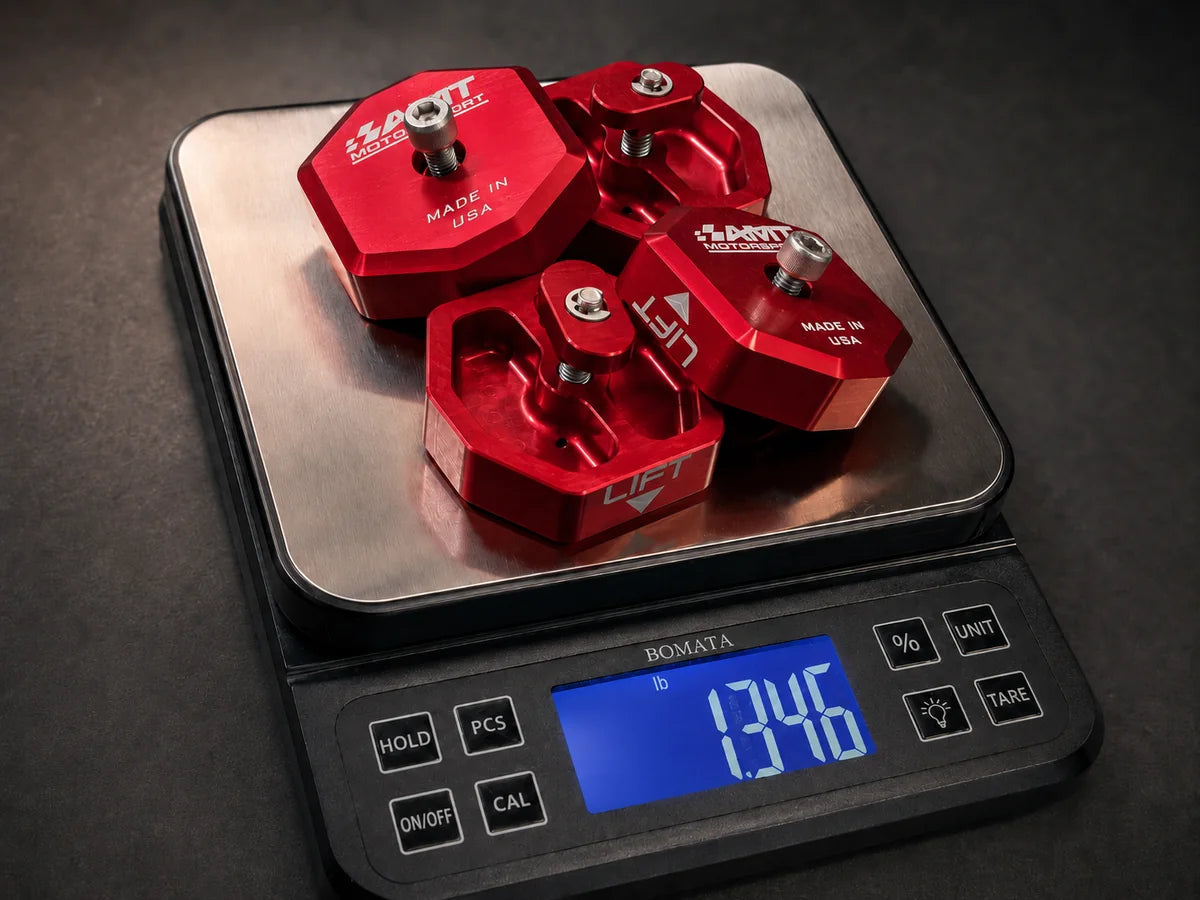

Four red AMT Switchblade jacking pucks arranged on a digital scale reading 1.346 lb, showing the complete aluminum lift-pad set

$160.00

Shipping calculated at checkout.

In stock - Ships in 1–2 business days

Color

Red

Black

AMT Motorsport Switchblade Jacking Pucks for C8 Corvette

Give your C8 Corvette a dedicated contact surface at its factory lift points with AMT Motorsport Switchblade Jacking Pucks. This complete set of four fits C8 Corvette Stingray, Z06, E-Ray, ZR1, ZR1X, Grand Sport and Grand Sport X models and stays attached between service visits, keeping the lifting locations ready for your floor jack or two-post lift. Choose one set in red or black anodized aluminum.

The Switchblade design makes routine lifting less awkward: its captive retaining hardware stays together during installation, and the engraved LIFT marking helps you or your technician identify the contact area. A 3/4-inch-thick body provides separation between the lifting equipment and nearby bodywork, while internal pockets and drainage passages keep the design light and allow collected water to escape.

Product Details

Package: Four complete jacking-puck assemblies in your selected color
Material: Machined from solid 6061-T6 aluminum
Finish choices: Red anodize or black anodize

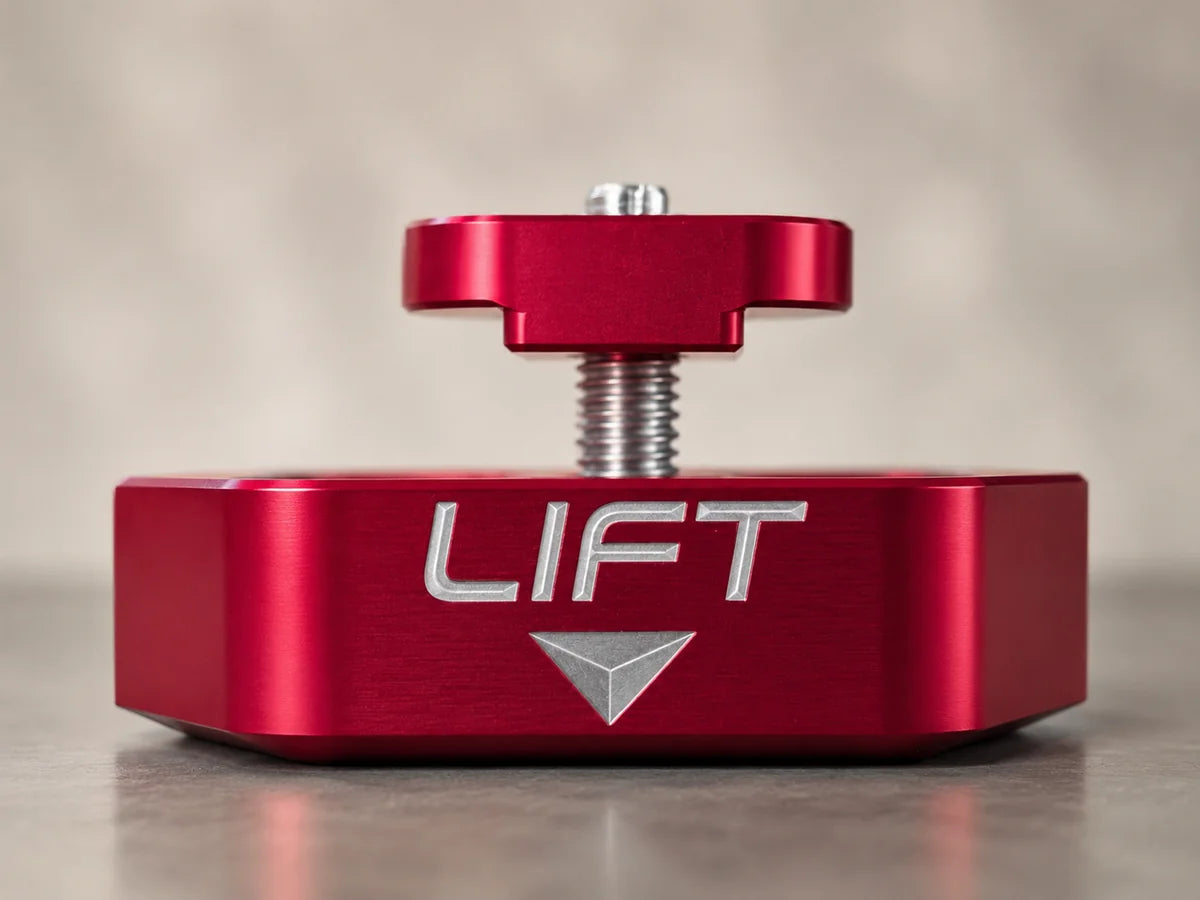

Thickness: 3/4 inch at each puck
Retention: Quarter-turn engagement at the factory lift point with a captive nut, custom-machined screw and captive locking washer
Drainage: Cross-drilled passages connect the internal pockets to the center screw opening
Item weight: Approximately 152 grams per assembly, or 1.34 pounds for the set of four
Manufacturing: Designed, machined, anodized, laser engraved and assembled in New York, USA

Benefits

Keep the lift points ready: The installed pucks provide a repeatable contact location when it is time for maintenance, wheel changes or shop service.
Keep the hardware together: The captive design helps prevent the retaining nut from dropping into the frame during installation.
Support easier jack positioning: The broad contact surface and 3/4-inch body give the jack or lift pad a defined place to meet the car.
Let water drain: Connected drainage passages allow water to leave the machined pockets when the pucks remain on the Corvette.

Important Notes

One quantity ordered is a full set of four in one color. A floor jack or vehicle lift is separate equipment.
Install at the factory lift points. No drilling, adhesives or permanent vehicle modifications are required.
Check your jack's minimum height and clearance around side skirts or other aftermarket bodywork before lifting. The puck thickness does not guarantee clearance for every equipment combination.
Follow the vehicle and lifting-equipment instructions, verify secure engagement before use, and use suitable supports whenever working beneath the vehicle.

CORVETTE COMPATIBILITY

C8 Chevrolet Corvette: Stingray, Z06, E-Ray, ZR1, ZR1X, Grand Sport and Grand Sport X
Mounts at the factory lift points; verify access with any modified underbody panels or side skirts

Why Buy This Product from Custom Corvette Accessories

Custom Corvette Accessories brings the C8 fitment, complete-set quantity and red or black selection together in one listing. Review the Switchblade hardware, dimensions and installed views here so you can choose the set that suits your Corvette and plan your lifting setup with clear product details.

✅ In-stock items ship in 1–2 business days via Standard Ground.

✅ Free shipping items are available in the Continental US only.

✅ Custom quotes available for 2-Day, Next Day, or Saturday delivery.

✅ Custom or backordered items ship as soon as available.

View our full shipping policy →

[{"id":67648911016173,"title":"Red","option1":"Red","option2":null,"option3":null,"sku":"PAD08","requires_shipping":true,"taxable":false,"featured_image":{"id":51099132100845,"product_id":15414266757357,"position":3,"created_at":"2026-10-05T13:08:54-04:00","updated_at":"2026-10-05T13:08:56-04:00","alt":"Red anodized AMT Switchblade jacking puck showing its center screw, engraved AMT logo, LIFT marking and machined aluminum face","width":1254,"height":1254,"src":"\/\/www.corvettepartsandaccessories.com\/cdn\/shop\/files\/amt-switchblade-c8-corvette-jacking-puck-red.png?v=1791220136","variant_ids":[67648911016173]},"available":true,"name":"C8 Corvette AMT Motorsport Switchblade Jacking Pucks - Red","public_title":"Red","options":["Red"],"price":16000,"weight":3175,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"featured_media":{"alt":"Red anodized AMT Switchblade jacking puck showing its center screw, engraved AMT logo, LIFT marking and machined aluminum face","id":46079415419117,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1254,"width":1254,"src":"\/\/www.corvettepartsandaccessories.com\/cdn\/shop\/files\/amt-switchblade-c8-corvette-jacking-puck-red.png?v=1791220136"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67648915570925,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"PAD08","requires_shipping":true,"taxable":true,"featured_image":{"id":51099132952813,"product_id":15414266757357,"position":2,"created_at":"2026-10-05T13:09:05-04:00","updated_at":"2026-10-05T13:09:08-04:00","alt":"Black anodized AMT Switchblade jacking puck showing a center screw, AMT logo on the contact face and LIFT engraving on the side","width":1254,"height":1254,"src":"\/\/www.corvettepartsandaccessories.com\/cdn\/shop\/files\/amt-switchblade-c8-corvette-jacking-puck-black.png?v=1791220148","variant_ids":[67648915570925]},"available":true,"name":"C8 Corvette AMT Motorsport Switchblade Jacking Pucks - Black","public_title":"Black","options":["Black"],"price":16000,"weight":3175,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"featured_media":{"alt":"Black anodized AMT Switchblade jacking puck showing a center screw, AMT logo on the contact face and LIFT engraving on the side","id":46079416205549,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1254,"width":1254,"src":"\/\/www.corvettepartsandaccessories.com\/cdn\/shop\/files\/amt-switchblade-c8-corvette-jacking-puck-black.png?v=1791220148"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":67648911016173,"title":"Red","option1":"Red","option2":null,"option3":null,"sku":"PAD08","requires_shipping":true,"taxable":false,"featured_image":{"id":51099132100845,"product_id":15414266757357,"position":3,"created_at":"2026-10-05T13:08:54-04:00","updated_at":"2026-10-05T13:08:56-04:00","alt":"Red anodized AMT Switchblade jacking puck showing its center screw, engraved AMT logo, LIFT marking and machined aluminum face","width":1254,"height":1254,"src":"\/\/www.corvettepartsandaccessories.com\/cdn\/shop\/files\/amt-switchblade-c8-corvette-jacking-puck-red.png?v=1791220136","variant_ids":[67648911016173]},"available":true,"name":"C8 Corvette AMT Motorsport Switchblade Jacking Pucks - Red","public_title":"Red","options":["Red"],"price":16000,"weight":3175,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"featured_media":{"alt":"Red anodized AMT Switchblade jacking puck showing its center screw, engraved AMT logo, LIFT marking and machined aluminum face","id":46079415419117,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1254,"width":1254,"src":"\/\/www.corvettepartsandaccessories.com\/cdn\/shop\/files\/amt-switchblade-c8-corvette-jacking-puck-red.png?v=1791220136"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Vehicle Fitment & Specifications

Generation:	C8
Trim Level:	Stingray, Z06, E-Ray, ZR1, ZR1X, Grand Sport, Grand Sport X
Engine Code:	LT2, LT6, LT7, LS6
Transmission Type:	Dual-Clutch
Intended Use:	Street, Show

Shipping Information

Item Weight:	1.34 lbs
Boxed Weight:	3.0 lbs
Box Size:	6 x 6 x 4

Frequently Asked Questions

Which C8 Corvette models do AMT Switchblade Jacking Pucks fit?

They fit the C8 Corvette Stingray, Z06, E-Ray, ZR1, ZR1X, Grand Sport and Grand Sport X at the factory lift points. The red and black sets have the same fitment.

Are AMT Switchblade Jacking Pucks for the C8 Corvette sold individually or as a set?

Order quantity 1 for one complete set of four assembled pucks in your chosen red or black finish. You do not need to order four separate units.

What does the captive hardware do on AMT Switchblade Jacking Pucks for the C8 Corvette?

The retaining nut stays captured by the custom screw and locking washer while you position the puck. That removes the loose-nut handling step at the frame opening.

How thick are AMT Switchblade Jacking Pucks for the C8 Corvette?

The body is 3/4 inch thick. This is the puck dimension, not a guaranteed amount of clearance for your jack or side skirts; check the complete lifting setup before use.

How do AMT Switchblade Jacking Pucks drain water underneath a C8 Corvette?

Water can leave the internal pockets through cross-drilled passages leading to the center screw opening. Those passages address the pockets that would otherwise collect water while the pucks stay on the car.
