C7 Corvette AMT Motorsport Ultra Low Seat Mount (2014-2019)

Name: C7 Corvette AMT Motorsport Ultra Low Seat Mount (2014-2019)
Brand: AMT Motorsport
SKU: 265002
Price: 430.0 USD
Availability: InStock

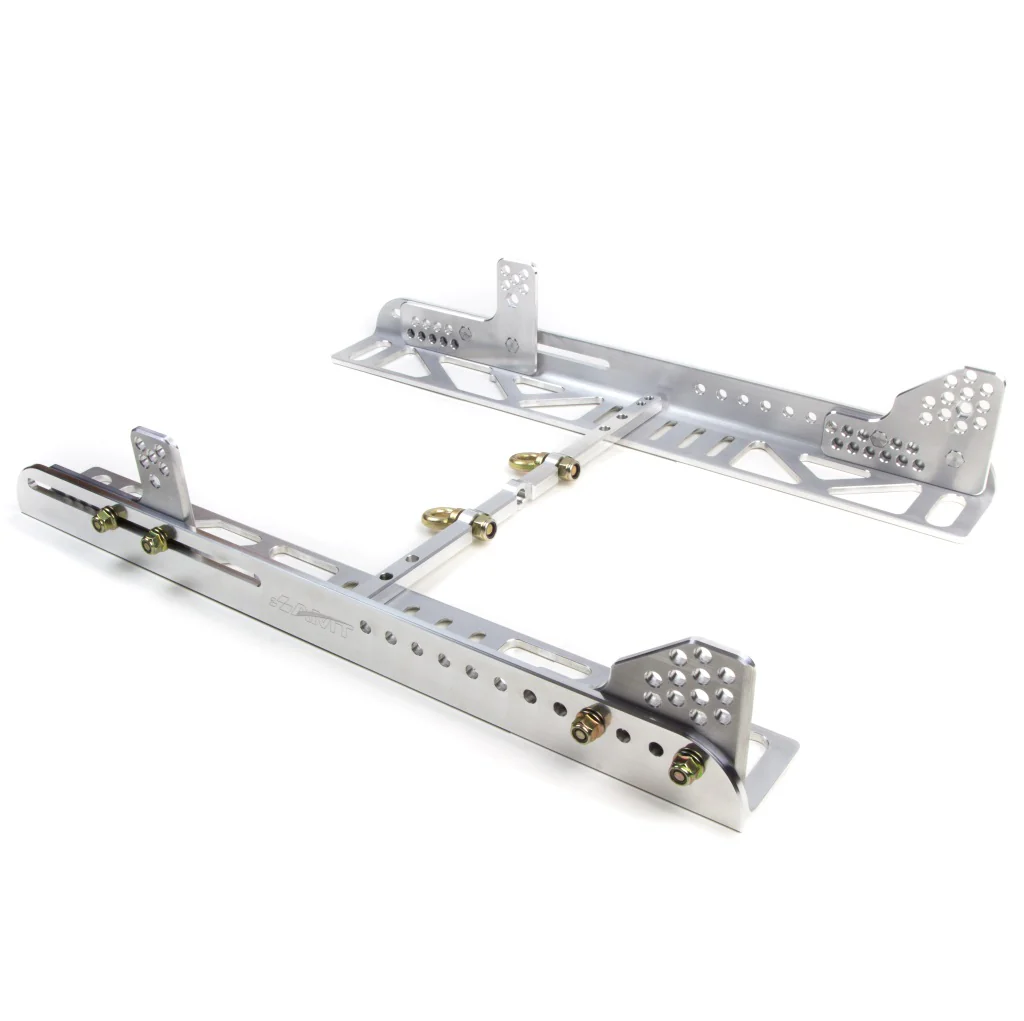

Silver AMT Motorsport 265002 Ultra Low Seat Mount with sub-belt bar for 2014-2019 C7 Corvette

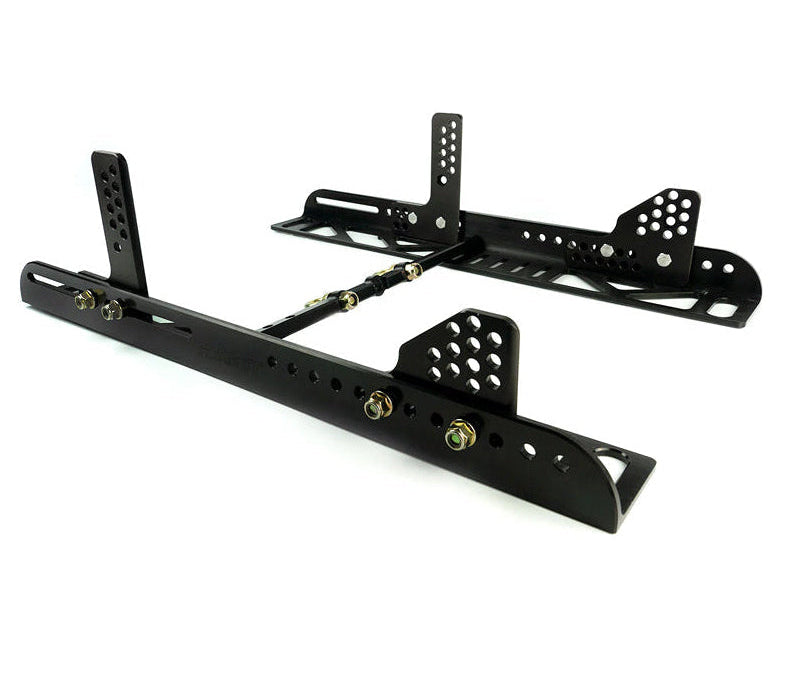

Black AMT Motorsport 265002B Ultra Low Seat Mount with sub-belt bar for 2014-2019 C7 Corvette

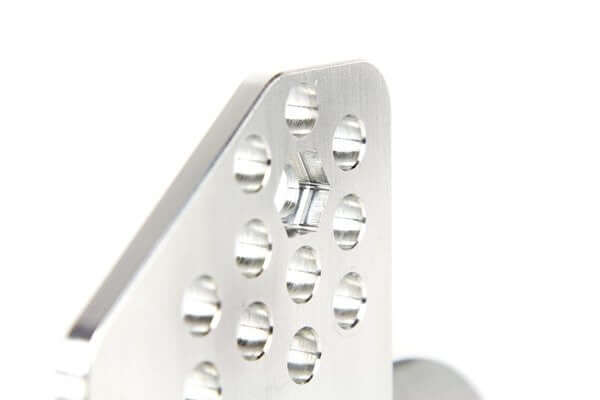

Side-mount racing seat adjustment holes on AMT Motorsport C7 Corvette Ultra Low Seat Mount

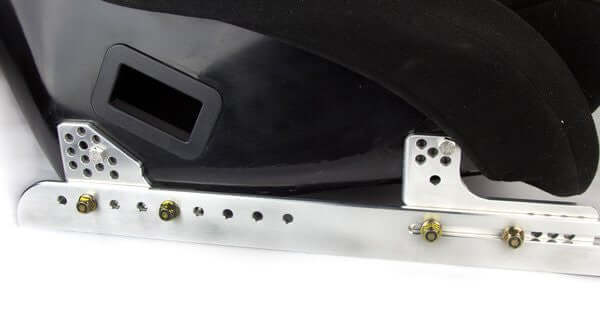

AMT Motorsport Ultra Low Seat Mount installed with a fixed side-mount racing seat in a C7 Corvette

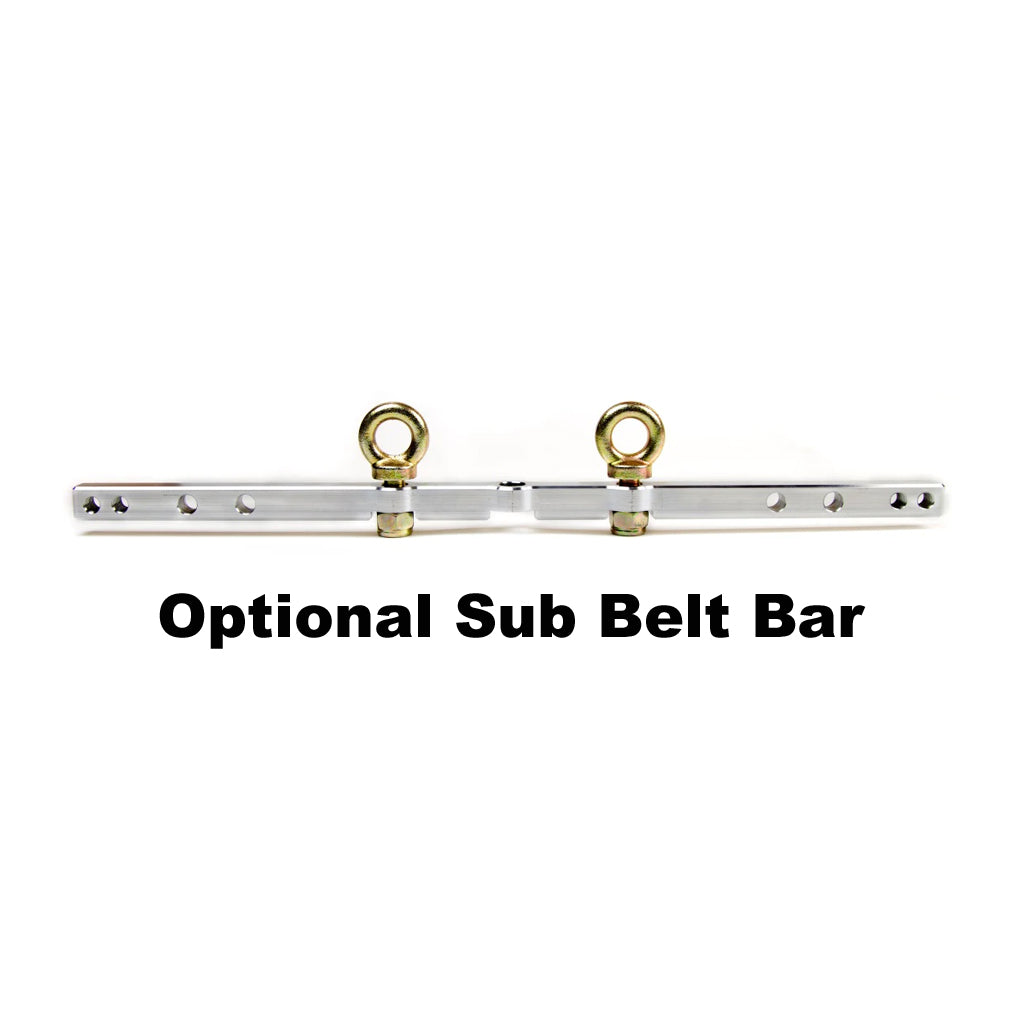

Integral sub-belt bar with eye bolts for AMT Motorsport 265002 C7 Corvette Ultra Low Seat Mount

$430.00

Shipping calculated at checkout.

Custom Made - Ships in 4-7 Business Days

Options

None

Add Sub Belt Bar

Color

Silver

Black

AMT Motorsport Ultra Low Seat Mount for C7 Corvette

The AMT Motorsport Ultra Low Seat Mount fits 2014–2019 C7 Corvette Stingray, Grand Sport, Z06, and ZR1 models with the LT1 6.2L, LT4 6.2L supercharged, or LT5 6.2L supercharged engine. Designed for compatible fixed side-mount racing seats, this machined 6061-T6 aluminum mount positions the seat extremely low in the C7 Corvette cockpit to improve helmet clearance and create a stable driving position. Choose silver or black with or without the integral sub-belt bar. Part number 265002 identifies the silver mount with the sub-belt bar, while part number 265002B identifies the black mount with the sub-belt bar.

Product Details

Brand: AMT Motorsport
Silver With Sub-Belt Bar Part Number: 265002
Black With Sub-Belt Bar Part Number: 265002B
Product: Ultra Low Seat Mount
Vehicle: 2014–2019 C7 Corvette
Seat Type: Compatible fixed side-mount racing seats
Factory Seat Compatibility: Not compatible with factory C7 Corvette seats
Material: 6061-T6 extruded aluminum angle and flat plate
Finish Options: Silver or black anodized
Floor Mounting: Uses the factory Corvette seat-stud locations
Hardware: Floor-mount studs and installation hardware included
Bracket Design: Machined mechanical interface supports the bottom and side of the seat-mount structure
Fastener Design: Machined hex pockets provide clearance for the side-bracket mounting bolts
Sub-Belt Bar: Available with an integral movable crossbar for five- and six-point harness sub-belts
Sub-Belt Hardware: Two eye bolts included when the sub-belt bar is selected
Warranty: AMT Motorsport lifetime replacement guarantee

Benefits

Positions a compatible fixed racing seat extremely low in the C7 Corvette cockpit
Helps create additional helmet and headroom clearance for track driving
Provides a rigid fixed seating position for more consistent driver control
Uses machined aluminum construction instead of a basic stamped universal bracket
Attaches at the factory C7 Corvette seat-stud locations
Machined hex pockets help maximize seat clearance and simplify bracket installation
Offers an integrated sub-belt mounting option for five- and six-point racing harnesses
Includes the floor-mount studs and hardware needed for installation

Important Notes

This mount is designed for compatible fixed side-mount racing seats and is not compatible with factory C7 Corvette seats.
The racing seat, seat-specific side brackets, harnesses, and harness bar are not included unless specifically stated in the selected configuration.
Final seating height and driving position depend on the racing-seat shell, side brackets, mounting-hole selection, and driver dimensions.
Select the integral sub-belt bar when a suitable mounting point is required for five- or six-point harness sub-belts.
The included sub-belt bar is movable and includes two eye bolts.
Using a different sub-belt bar may require modifying the mount or the bar.
When installing the mount without the integral sub-belt bar, suitable sub-belt mounting points must be installed through the floor.
Harness installation must follow the harness manufacturer’s instructions and the requirements of the applicable racing or sanctioning organization.
Professional installation is recommended for racing-seat and harness systems.

CORVETTE COMPATIBILITY

Generation: C7 Corvette
Model Years: 2014–2019
Models: Stingray (2014–2019), Z06 (2015–2019), Grand Sport (2017–2019), and ZR1 (2019)
Engines: LT1 6.2L, LT4 6.2L Supercharged, and LT5 6.2L Supercharged
Body Styles: Coupe and Convertible
Transmissions: Manual and Automatic
Seat Requirement: Compatible fixed side-mount racing seat

Use Overview

Installing a fixed racing seat in a C7 Corvette can create headroom and helmet-clearance problems when the seat is mounted on a conventional bracket. The AMT Motorsport Ultra Low Seat Mount positions the racing-seat shell close to the Corvette floor while providing a rigid interface between the factory floor mounting points and compatible side brackets. This makes it especially useful for taller drivers, helmeted track-day use, and competition builds where a stable and repeatable seating position is important.

Why Buy This AMT Motorsport C7 Corvette Seat Mount?

The AMT Motorsport Ultra Low Seat Mount is a Corvette-specific solution for installing a fixed side-mount racing seat without relying on a generic floor adapter. Its machined 6061-T6 aluminum construction, factory seat-stud mounting system, low-profile fastener design, optional integral sub-belt bar, and included mounting hardware address the fitment, strength, and headroom challenges commonly encountered when adding a racing seat to a C7 Corvette.

✅ In-stock items ship within 24–48 hours via Standard Ground.

✅ Free shipping items are available in the Continental US only.

✅ Custom quotes available for 2-Day, Next Day, or Saturday delivery.

✅ Custom or backordered items ship as soon as available.

View our full shipping policy →

[{"id":46071397706,"title":"None \/ Silver","option1":"None","option2":"Silver","option3":null,"sku":"265002","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"C7 Corvette AMT Motorsport Ultra Low Seat Mount (2014-2019) - None \/ Silver","public_title":"None \/ Silver","options":["None","Silver"],"price":43000,"weight":12701,"compare_at_price":null,"inventory_quantity":1,"inventory_management":null,"inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44572354281709,"title":"None \/ Black","option1":"None","option2":"Black","option3":null,"sku":"265002B","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"C7 Corvette AMT Motorsport Ultra Low Seat Mount (2014-2019) - None \/ Black","public_title":"None \/ Black","options":["None","Black"],"price":45500,"weight":12701,"compare_at_price":null,"inventory_quantity":-2,"inventory_management":null,"inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":12979766657101,"title":"Add Sub Belt Bar \/ Silver","option1":"Add Sub Belt Bar","option2":"Silver","option3":null,"sku":"265002-Bar","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"C7 Corvette AMT Motorsport Ultra Low Seat Mount (2014-2019) - Add Sub Belt Bar \/ Silver","public_title":"Add Sub Belt Bar \/ Silver","options":["Add Sub Belt Bar","Silver"],"price":49500,"weight":12701,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44572354314477,"title":"Add Sub Belt Bar \/ Black","option1":"Add Sub Belt Bar","option2":"Black","option3":null,"sku":"265002B-Bar","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"C7 Corvette AMT Motorsport Ultra Low Seat Mount (2014-2019) - Add Sub Belt Bar \/ Black","public_title":"Add Sub Belt Bar \/ Black","options":["Add Sub Belt Bar","Black"],"price":52500,"weight":12701,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Vehicle Fitment & Specifications

Generation:	C7
Trim Level:	Stingray, Grand Sport, Z06, ZR1
Engine Code:	LT1, LT4, LT5
Transmission Type:	Manual, Automatic
Intended Use:	Street, Track

Frequently Asked Questions

Can I use the AMT Motorsport Ultra Low Seat Mount with the factory C7 Corvette seats?

No. This mount is designed for compatible fixed side-mount racing seats and is not compatible with the factory C7 Corvette seat assemblies.

Are racing-seat side brackets included with the C7 Corvette Ultra Low Seat Mount?

No. The AMT Motorsport mount includes the floor-mount studs and installation hardware, but the racing seat and seat-specific side brackets must be purchased separately.

How low does the AMT Motorsport seat mount position a racing seat in a C7 Corvette?

The mount allows the bottom of a compatible racing-seat shell to sit extremely close to the C7 Corvette floor. The final seating height depends on the seat shell, side brackets, mounting-hole selection, and driver position.

Does the AMT C7 Corvette seat mount use the factory floor mounting locations?

Yes. The mount attaches at the factory C7 Corvette seat-stud locations and includes the studs and mounting hardware required for the floor-mount installation.

Does the AMT Motorsport Ultra Low Seat Mount fit C7 Corvette Coupe and Convertible models?

Yes. The mount fits C7 Corvette Coupe and Convertible models when installing a compatible fixed side-mount racing seat. Seat, bracket, harness, and driver clearance must be verified for the complete installation. The construction, compatibility, hardware, fixed-seat requirement, and sub-belt-bar information are verified against the current product information.
