C6 Corvette Z06 DBA 4000 Series T3 Rear Brake Rotors

C6 Corvette Z06 DBA 4000 Series T3 Rear Brake Rotors

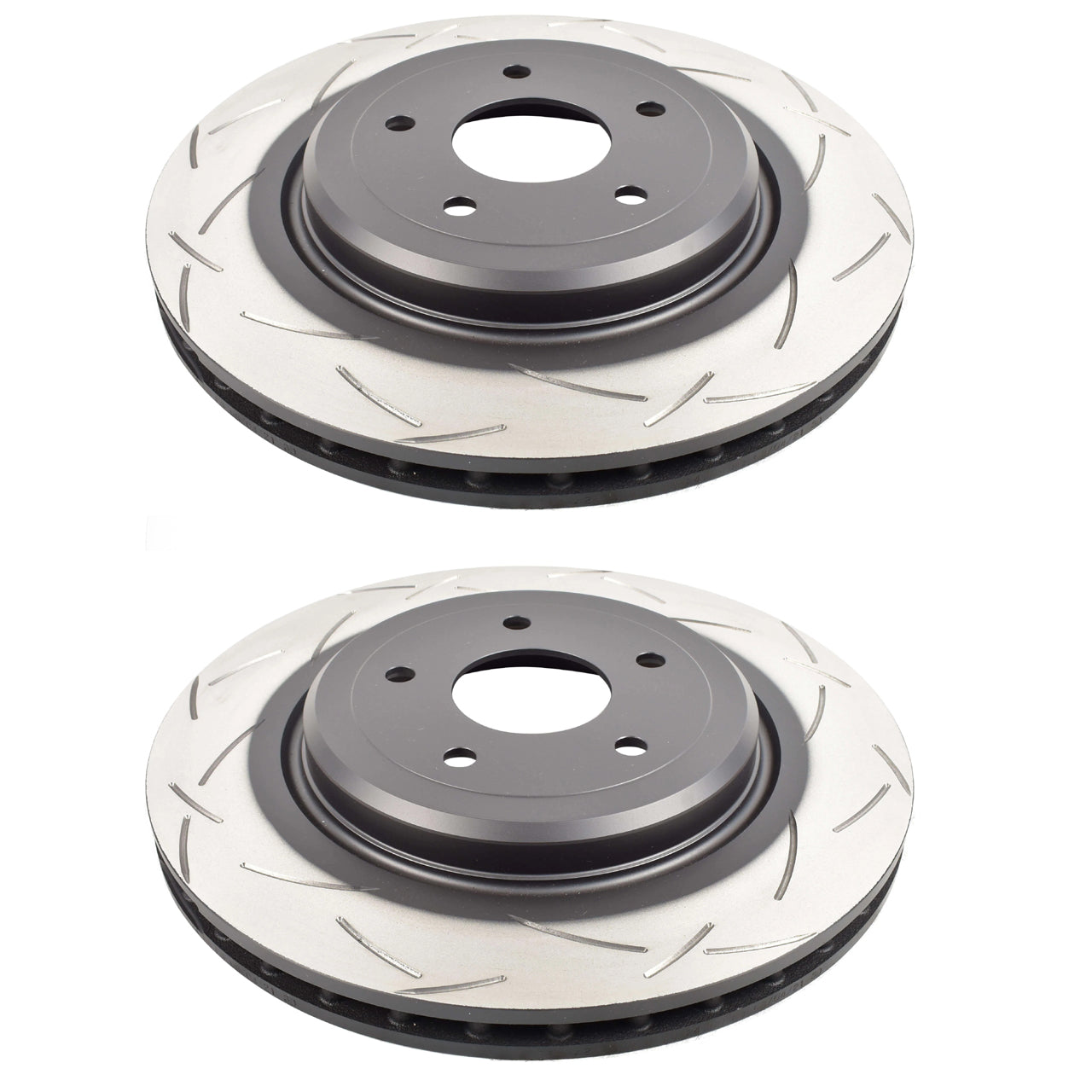

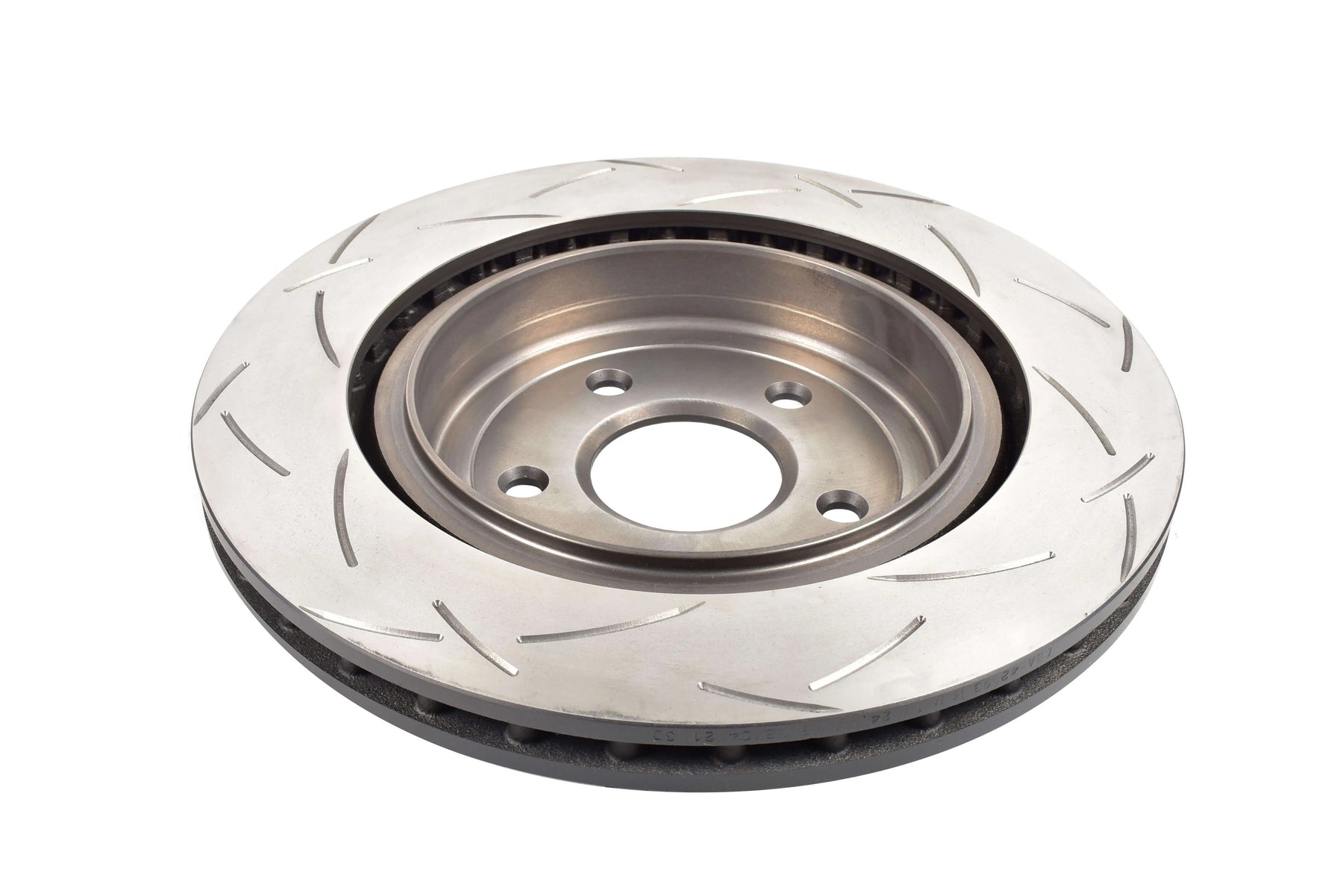

The DBA 4000 Series T3 Rear Brake Rotors, part number DBA42993S, are direct-replacement performance rotors for 2006–2013 C6 Corvette Z06 models with the factory J56 iron brake system and LS7 7.0L V8. This listing includes a complete pair of two 340 mm rear rotors for installation with the original C6 Z06 rear calipers and mounting brackets.

Product Details

• Brand: DBA – Disc Brakes Australia
• Product Line: 4000 Series T3
• Product Type: Slotted rear brake rotors
• Fitment: 2006–2013 C6 Corvette Z06 with J56 iron brakes
• Position: Rear axle
• Included Quantity: Two rear rotors, complete pair
• Part Number: DBA42993S per rotor
• Construction: One-piece vented rotor
• Rotor Material: High-carbon alloyed iron
• Surface: CNC-machined T3 slots
• Slot Design: Bi-directional
• Internal Ventilation: DBA Kangaroo Paw ventilation
• Brake Pads Included: No
• Shipping: $9.99 in the USA

Benefits

• Includes two rotors for a complete C6 Corvette Z06 rear brake service
• Direct factory-size fitment for the J56 iron brake system
• T3 slots help clear brake dust and friction gases from the pad surface
• Bi-directional design allows either rotor to be installed on either side
• High-carbon iron construction supports consistent braking through repeated heat cycles
• Kangaroo Paw ventilation promotes airflow and heat dissipation
• Thermal Stability Profiling helps improve rotor stability and durability
• Suitable for daily driving and demanding performance-street use

What to Expect

The DBA 4000 Series T3 is a factory-size, one-piece rotor upgrade rather than a big-brake conversion. It retains the original C6 Corvette Z06 J56 rear calipers and mounting points while adding DBA’s T3 slot pattern, high-carbon iron construction, and performance-focused heat-management features.

The T3 slot pattern is bi-directional, so DBA42993S does not require separate driver- and passenger-side part numbers.

Technical Specifications

• Outside Diameter: 340 mm / approximately 13.4 inches
• Rotor Thickness: 26 mm
• Minimum Thickness: 24 mm
• Overall Height: 49 mm
• Center Bore: 70.7 mm
• Bolt Pattern: 5 × 120.65 mm / 5 × 4.75 inches
• Rotor Weight: Approximately 21.3 pounds each
• Vane Design: DBA Kangaroo Paw vents

Installation Overview

The DBA42993S rotors install in the factory C6 Corvette Z06 rear rotor locations and work with the original J56 rear calipers and mounting brackets. No caliper relocation brackets or rotor adapters are required.

Install both rotors together, clean the rotor and hub mounting surfaces, inspect the brake pads and caliper hardware, and follow the DBA and brake-pad manufacturer bedding procedures after installation.

Important Notes

• This listing is for a pair. Quantity one includes two DBA42993S rear brake rotors.
• Fits 2006–2013 C6 Corvette Z06 models with factory RPO J56 iron brakes.
• Does not fit RPO J57 carbon-ceramic brakes.
• Does not fit the 2011 Z06 Carbon or Z07-equipped Z06 models retaining the factory carbon-ceramic brake system.
• Brake pads, calipers, brake fluid, hoses, and installation hardware are not included.
• These are factory-size one-piece rotors, not a two-piece rotor system or big-brake conversion.

CORVETTE COMPATIBILITY

• Generation: C6 Corvette
• Model Years: 2006–2013
• Model: Z06
• Engine: LS7 7.0L V8
• Brake Package: RPO J56 iron brakes
• Brake Position: Rear axle
• Body Style: Coupe
• Excluded Brake Package: RPO J57 carbon-ceramic brakes
