C6 Corvette Z06/ZR1 AMT Motorsport Adjustable Camber Kit

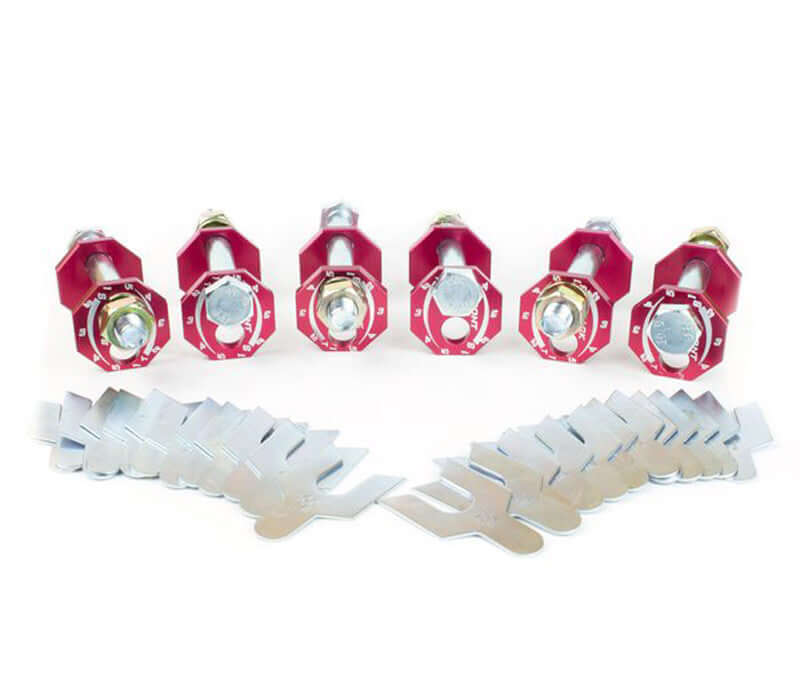

AMT Motorsport Adjustable Camber Kit for C6 Corvette Z06 and ZR1

The AMT Motorsport Adjustable Camber Kit fits aluminum-frame 2006–2013 C6 Corvette Z06 models with the LS7 7.0L engine and 2009–2013 C6 Corvette ZR1 models with the supercharged LS9 6.2L engine. Choose part number 266017 for the complete camber kit or part number 266017S for the kit with front and rear upper-control-arm studs. Designed for performance street driving, autocross, and track use, the indexed front and rear adjustment plates replace the factory round eccentric cams to provide more secure, repeatable alignment settings and additional negative-camber range.

Product Details

• Brand: AMT Motorsport
• Camber Kit Part Number: 266017
• Camber Kit With Studs Part Number: 266017S
• Product: Adjustable Front and Rear Camber Kit
• Vehicle: C6 Corvette Z06 and ZR1
• Frame Requirement: Aluminum-frame models only
• Adjustment Positions: Ten indexed street and track settings
• Adjustment Location: Front and rear lower control arms
• Fine Adjustment: Upper-control-arm shims included
• Plate Material: 6061-T6 aluminum
• Finish: Anodized for corrosion resistance

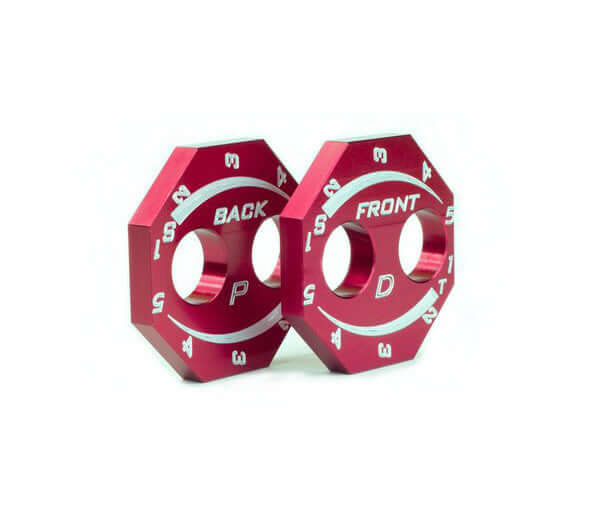

• Markings: Laser-engraved adjustment references
• Hardware: Grade 10.9 M14 bolts, nuts, and lock washers included
• Stud Option: Front and rear upper-control-arm studs included with part number 266017S
• Instructions: Full-color installation and adjustment guide included
• Warranty: AMT Motorsport lifetime guarantee

Benefits

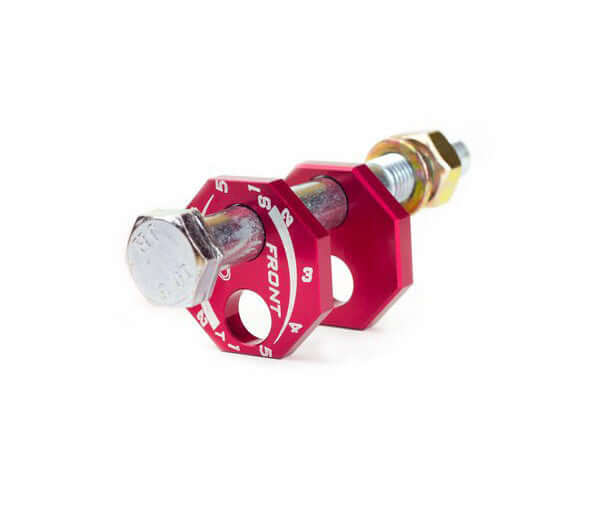

• Replaces the factory round eccentric adjusters with indexed camber plates
• Provides repeatable front and rear alignment settings for street and track use
• Helps prevent unwanted eccentric movement during high-load cornering
• Provides additional negative-camber adjustment compared with the factory system
• Offers separate street and track adjustment ranges without changing plates
• Includes upper-control-arm shims for fine camber and caster tuning
• Uses laser-engraved markings to make alignment settings easier to record and repeat

Important Notes

• This kit fits only aluminum-frame C6 Corvette Z06 and ZR1 models.
• It does not fit C6 Corvette Base or Grand Sport models.
• A complete professional four-wheel alignment is required after installation.
• Toe must be checked and corrected whenever camber settings are changed.
• Only the front bolt position is adjustable at each rear lower control arm.
• The rear lower-control-arm bolt may be tight near the fuel lines, but cutting the bolt is not required.
• The replacement rear bolt is installed from the opposite direction to simplify installation and future adjustment.
• Choose part number 266017S when frequent upper-control-arm shim changes are planned.

CORVETTE COMPATIBILITY

• Generation: C6 Corvette
• Model Years: 2006–2013
• Models: Z06 (2006–2013) and ZR1 (2009–2013)
• Engines: LS7 7.0L and LS9 6.2L Supercharged
• Frame: Aluminum
• Body Style: Coupe
• Transmission: Manual

Use Overview

The factory C6 Corvette Z06 and ZR1 camber eccentrics allow convenient alignment changes, but sticky tires, aggressive cornering, and repeated track use can place enough load on the suspension to move those settings. The AMT Motorsport Adjustable Camber Kit replaces the round factory eccentrics with indexed plates that give alignment technicians defined positions for setting, documenting, and repeating front and rear camber. Included upper-control-arm shims provide the finer adjustment needed to balance camber and caster for the Corvette’s intended street or track setup.

Why Buy This AMT Motorsport C6 Corvette Camber Kit?

The AMT Motorsport C6 Corvette Z06 and ZR1 Camber Kit combines indexed 6061-T6 aluminum adjustment plates, ten street and track settings, laser-engraved references, upper-control-arm tuning shims, performance-grade hardware, and an optional complete stud package. The result is a purpose-built alignment system for Corvette owners who want greater adjustment range, more repeatable settings, and better control over performance alignment changes.
