C5 Corvette Pfadt Featherlight Single Adjustable Coil Overs (1997-2004)
430-401001-N

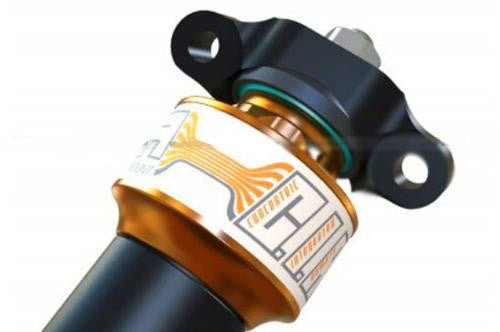

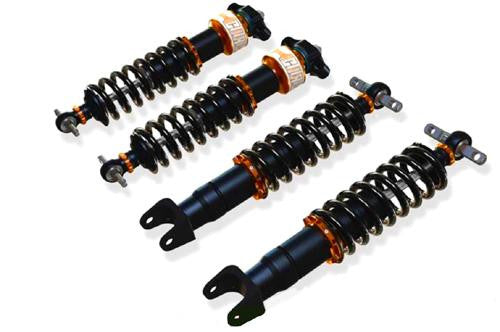

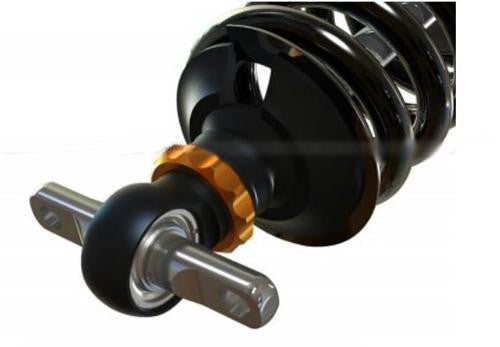

aFe CONTROL Pfadt Featherlight Single-Adjustable Coilovers for 1997–2004 C5 Corvette
The aFe CONTROL Pfadt Featherlight single-adjustable coilover system, part number 430-401001-N, is a complete street-and-track suspension conversion for the 1997–2004 C5 Corvette. It gives the driver control over ride height and damping while replacing the limitations of the original fixed shock and transverse-leaf-spring arrangement.
This system is intended for the C5 owner who wants a more tunable chassis for performance street driving, autocross or track use. Independent coil springs at each corner allow the suspension to be set up around the car’s stance, tire package and intended use, while the single-adjustable dampers make it possible to refine ride and response without disassembling the system.
Product Details
- Manufacturer part number: 430-401001-N
- Complete front and rear Featherlight coilover system
- Single-adjustable damping
- Adjustable ride height
- Street-and-track suspension calibration
- Independent coil spring arrangement at each corner
- Application-specific C5 Corvette mounting components
Benefits
- Allows ride height to be set for stance and performance goals
- Provides damping adjustment for different roads, tires and events
- Improves chassis control during braking, acceleration and cornering
- Supports more detailed suspension setup than fixed dampers
- Creates a true coilover layout for each wheel
Important Notes
- Installation changes the Corvette from its factory transverse-leaf-spring layout to coil springs at each corner.
- C5 Corvettes equipped with factory electronic damping require the appropriate electronic suspension bypass solution.
- Professional installation, corner balancing and a four-wheel alignment are strongly recommended.
- Ride height and damping should be adjusted in measured steps and verified for tire and chassis clearance.
CORVETTE COMPATIBILITY
- Generation: C5 Corvette
- Model years: 1997–2004
- Models: Coupe, Convertible, Fixed Roof Coupe and Z06
- Engines: 5.7L LS1 and LS6 V8
- Use: Performance street, autocross and track
Use Overview
The Featherlight system is the most adjustable option in this four-product group. It is best suited to an owner prepared to properly set ride height, alignment and damping rather than simply install fixed replacement shocks.
