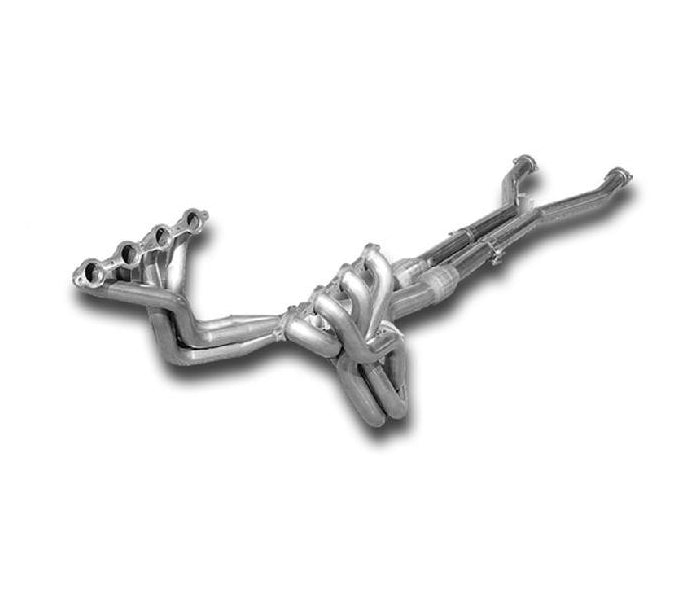

C5 Corvette Z06 American Racing Headers 2" Long Tube Header System (2001–2004)
The American Racing Headers 2" Long Tube Header System for the 2001–2004 C5 Corvette Z06 replaces the restrictive factory exhaust manifolds and mid-section with a complete long tube header and X-pipe configuration designed specifically for the LS6-powered Z06. The system runs from the cylinder heads to the rear axle connection point, where it mates to your factory or aftermarket axle-back exhaust.
Large 2" primary tubes, 3" merge collectors, and a 3" X-pipe mid-section increase exhaust flow and help the LS6 engine evacuate exhaust gases more efficiently at higher RPM. This configuration is commonly chosen for aggressive naturally aspirated builds or combinations targeting maximum airflow.
Catted vs Catless Options
- 2001–2003 — With Cats: C5-01200300LSWC | Without Cats: C5-01200300LSNC
- 2004 — With Cats: C5-04200300LSWC | Without Cats: C5-04200300LSNC
ARH C5 Z06 2" Long Tube System – Product Details
- 2" long tube primary headers
- 3" merge collectors with scavenger spikes
- 3" X-pipe mid-section (catted or catless)
- 304 stainless steel construction
- 3/8" thick laser-cut flanges
- Designed to connect at the rear axle connection point and mate to the rear exhaust section
Benefits
- Improved exhaust flow for stronger high-RPM performance
- Sharper throttle response
- More aggressive exhaust tone under acceleration
- Complete header + mid-pipe system engineered specifically for the C5 Z06
Technical Specifications
- Header type: Long tube header system
- Primary tube diameter: 2"
- Collector size: 3" merge collectors
- Collector design: scavenger spikes
- Mid-section: 3" X-pipe (catted or catless); necks down to 2.5" at the rear flange to mate to OEM or aftermarket over-axle/axle-back
- Catted option: high-flow 300-cell catalytic converters
- Material: 304 stainless steel
- Flange thickness: 3/8" laser-cut

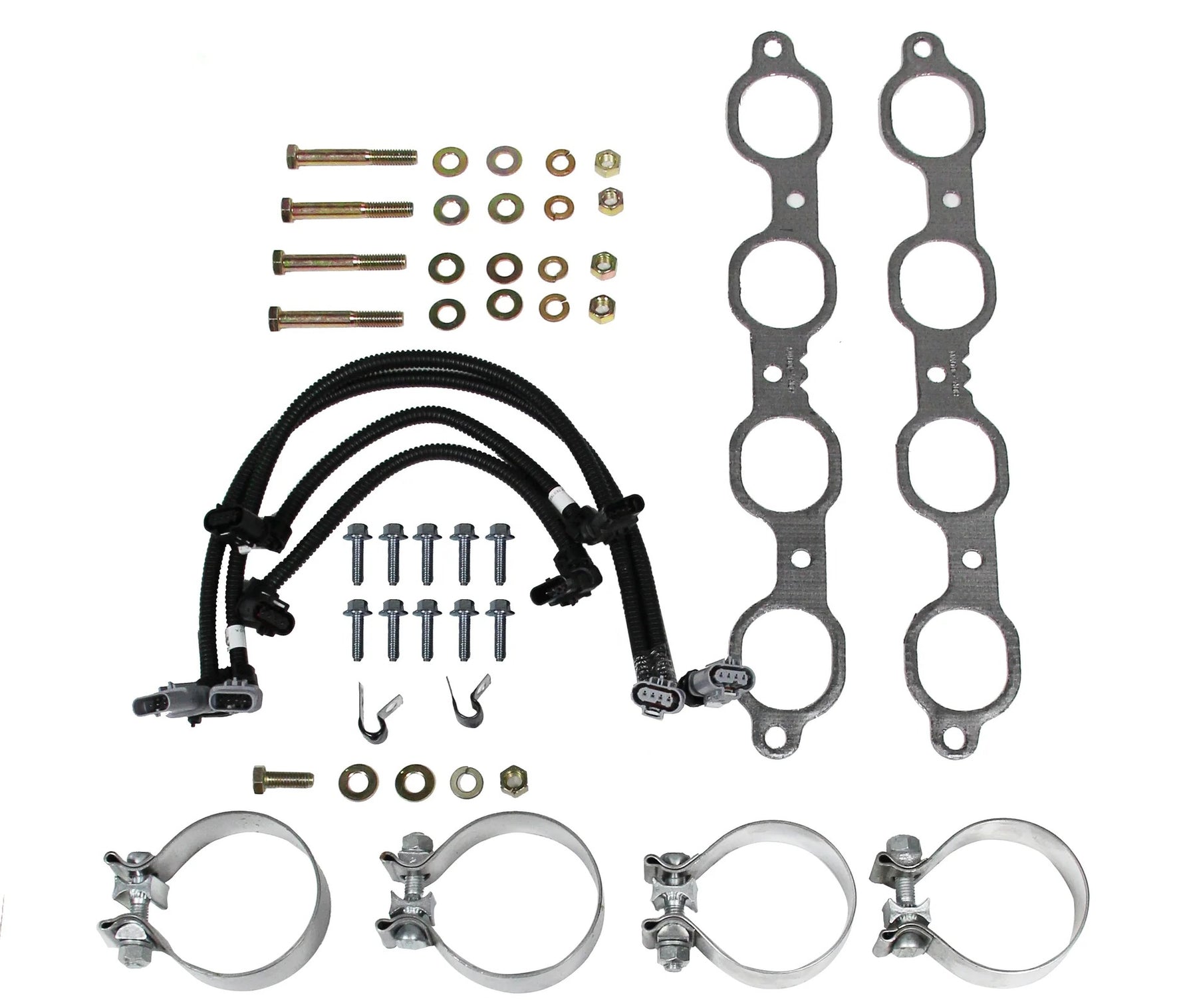

What’s Included
- Long tube headers (pair)
- X-pipe mid-section
- O2 extension harnesses (included)
- Install hardware and gaskets
- Band clamps where applicable
Corvette Compatibility
- 2001–2004 C5 Corvette Z06
- Engine: 5.7L LS6
What Customers Say
- Z06 owners often choose ARH for the strong fitment and stainless construction.
- Many report a noticeable improvement in throttle response and a deeper exhaust tone once installed and tuned.
